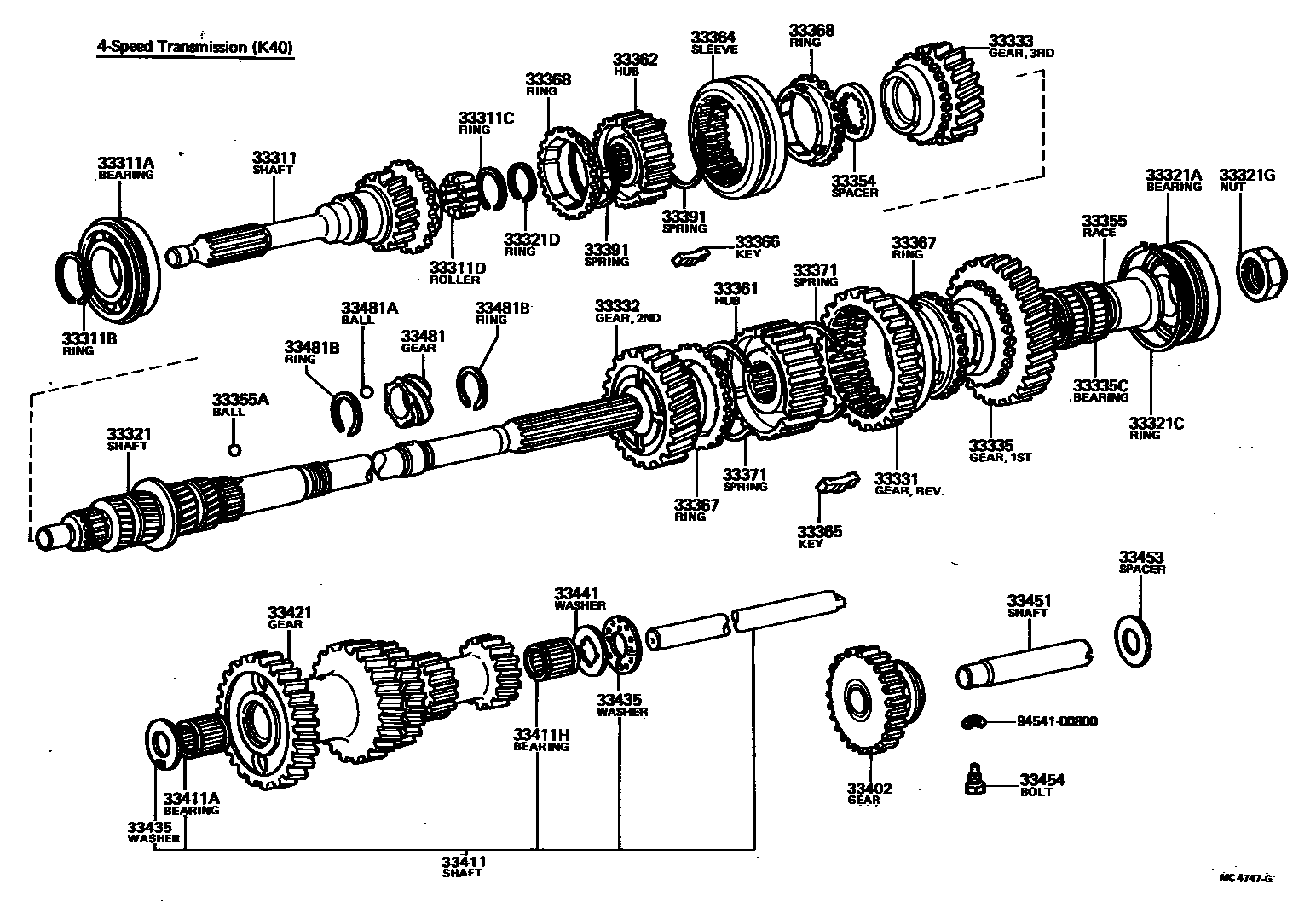

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1 0004 1

33311SHAFT, INPUT

main33301-14010iTE3#,47,51..MTM197408-198004

N=23

main33311-12021iKE3#,5#..MTM197408-198107

N=19

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-30003iKE35,50..K50197606-197710

sub90363-30009

main90363-30004iTE3#,47,51..MTM197703-198004

main90363-30009iKE30,35,5#..K50197710-197903

main90363-30017iKE30,35,5#..K50197903-198107

main97154-06206iTE3#,47,51..MTM197408-197703

sub90363-30004

main97163-06206iKE3#,5#..K40197408-198107

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-28067iKE3#,5#,TE3#,47,51..MTM197408-198107

T=2.35-2.40

main90520-28068iKE3#,5#,TE3#,47,51..MTM197408-198107

T=2.45-2.50

main90520-28205iTE3#,47,51..MTM197408-198004

T=2.40-2.45,T=2.40-2.45

main90520-28206iTE3#,47,51..MTM197408-198004

T=2.50-2.55

main90520-28207iTE3#,47,51..MTM197408-198004

T=2.45-2.50,T=2.55-2.60

33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)

main90521-30150iKE3#,50..K40197408-198107

33311DBEARING, INPUT SHAFT

main90361-06047iKE3#,5#,TE3#,47,51..MTM197408-198107

33321SHAFT, OUTPUT

main33321-10030iKE35,50..K50197606-197801

main33321-10031iKE30,35,5#..K50197801-198107

main33321-12013iKE3#,5#..K40197408-198107

main33321-14010iTE31,47,51..T40197408-197808

sub33321-14011

sub33345-14011

main33321-14011iTE31,47,51..T40197808-198004

sub33321-14021

main33321-14020iTE3#,47,51..T50197408-197808

sub33321-14021

sub33338-14012

sub33345-14011

main33321-14021iTE3#,47,51..T50197808-198004

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-25004iKE30,35,5#..K50197606-197903

main90363-25014iKE30,35,5#..K50197903-198107

main97113-06305iTE3#,47,51..T50197408-198004

main97183-06305iKE3#,5#..K40197408-198107

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-59001iKE30,35,5#..K50197606-197903

main90520-59071iKE3#,5#..K40197408-198107

main90520-60001iKE30,35,5#..K50197903-198107

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-23089iKE3#,5#..MTM197408-198107

T=2.10-2.15,T=2.10-2.15

main90520-23090iKE3#,5#..MTM197408-198107

T=2.20-2.25,T=2.20-2.25

main90520-23115iKE3#,50..K40197408-198107

T=2.05-2.10,T=2.05-2.10

main90520-23143iKE3#,5#..MTM197408-198107

T=2.15-2.20,T=2.15-2.20

main90520-23144iKE3#,5#..MTM197408-198107

T=2.25-2.30,T=2.25-2.30

main90520-23145iKE3#,5#..MTM197408-198107

T=2.30-2.35,T=2.30-2.35

main90520-23146iKE3#,5#..MTM197408-198107

T=2.35-2.40,T=2.35-2.40

main90520-23147iKE3#,5#..MTM197408-198107

T=2.40-2.45,T=2.40-2.45

main90520-30200iKE35..K50197408-198004

T=1.95-2.00,T=1.95-2.00

main90520-30201iTE3#,47,51..MTM197408-198004

T=2.00-2.05,T=2.00-2.05

main90520-30202iTE3#,47,51..MTM197408-198004

T=2.05-2.10,T=2.05-2.10

main90520-30203iKE35..K50197408-198004

T=2.10-2.15,T=2.10-2.15

main90520-30204iTE3#,47,51..MTM197408-198004

T=2.15-2.20,T=2.15-2.20

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-25057iKE3#,5#..K40197408-198107

main90179-25107iKE35..K50197408-198004

33331GEAR, REVERSE

main33331-12014iKE3#,50..K40197408-198003

N=41

main33331-12015iKE3#,55..MTM198003-198107

N=41

main33331-14011iKE35..K50197408-198004

N=34

33332GEAR, 2ND

main33033-14011iKE35..K50197408-198004

N=31

sub33033-14050

main33332-12020iKE3#..K40197408-197512

N=28

main33332-12031iKE3#,50..MTM197512-197708

N=29

main33332-12032iKE3#,5#..MTM197708-198105

N=29

main33332-12033iKE3#,55..MTM198105-198107

N=29

33333GEAR, 3RD

main33034-14010iTE3#,47,51..MTM197408-198004

N=27

main33333-12020iKE3#..K40197408-197512

N=23

main33333-12031iKE3#,50..K40197512-197903

N=23

main33333-12040iKE3#,5#..MTM197903-198107

N=23

33335GEAR, 1ST

main33032-14011iKE35..K50197408-198004

N=35

sub33032-14070

main33335-12012iKE3#..K40197408-197512

N=35

main33335-12020iKE3#,50..MTM197512-197708

N=36

main33335-12022iKE3#,5#..MTM197708-198003

N=36

main33335-12023iKE3#,55..MTM198003-198107

N=36

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-32036iKE3#,5#..MTM197408-198107

main90364-37041iTE3#,47,51..MTM197408-198004

33354SPACER, CLUTCH HUB

main33354-12011iKE3#,50..K40197408-198107

T=4.30-4.35

main33354-12020iKE3#,50..K40197408-198107

T=4.35-4.40

main33354-12030iKE3#,50..K40197408-198107

T=4.40-4.45

33355RACE, 1ST GEAR BEARING INNER

main33345-12015iKE3#,5#..MTM197408-198107

main33345-14010iKE35..K50197408-197808

main33345-14011iTE3#,47,51..MTM197808-198004

33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

main90360-05006iKE3#,50..K40197408-197604

sub90360-05012

main90360-05012iKE3#,5#,TE3#,47,51..MTM197408-198107

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-12011iKE3#,50..K40197408-198107

main33361-14010iKE35..K50197408-198004

sub33361-14012

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-12010iKE3#,5#..MTM197408-198107

main33362-14010iTE3#,47,51..MTM197408-198004

33364SLEEVE, TRANSMISSION HUB, NO.2

main33363-12013iKE3#,5#..MTM197408-198107

main33364-14010iTE3#,47,51..MTM197408-198004

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-12010iKE3#,50..K40197408-198003

main33365-12011iKE3#,55..MTM198003-198107

main33365-14010iTE3#,47,51..MTM197408-197809

main33365-14011iTE3#,47,51..MTM197809-198004

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-12010iKE3#,50..K40197408-198107

main33366-14010iKE35..K50197408-198004

33367RING, SYNCHRONIZER, NO.1

main33367-12012iKE3#..K40197408-197409

1ST GEAR

sub33367-12020

main33367-12020iKE3#,50..K40197409-198003

1ST GEAR

main33367-12021iKE3#,55..MTM198003-198107

1ST GEAR

main33368-12012iKE3#,50..K40197408-198107

2ND GEAR

main33368-20012iTE3#,47,51..MTM197408-198004

33368RING, SYNCHRONIZER, NO.2

main33367-14010iTE3#,47,51..MTM197408-198004

main33369-12012iKE3#,5#..MTM197408-198107

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-12011iKE3#,50..K40197408-198004

sub33371-12012

main33371-12012iKE3#,55..MTM198004-198107

main33371-14030iTE3#,47,51..MTM197809-198004

sub33371-14031

main33371-20010iTE3#,47,51..MTM197408-197809

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14010iTE3#,47,51..MTM197408-198004

main33391-12011iKE3#,5#..MTM197408-198107

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-12011iKE3#,50..K40197408-198107

N=30

main33402-14010iTE3#,47,51..MTM197408-198004

N=21

33411COUNTERSHAFT

main33411-10010iKE35,50..K50197606-197708

main33411-10011iKE30,35,5#..K50197708-197903

main33411-12020iKE30,35,5#..K50197903-198107

main33411-19015iKE3#,50..K40197408-197708

main33411-19016iKE3#,5#..K40197708-198107

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90364-16002iKE35,50..K50197606-197708

main90364-16003iKE3#,5#..K40197708-198107

main90364-16047iKE3#,50..K40197408-197708

main90364-23001iKE30,35,5#..K50197708-197903

main90364-30006iKE30,35,5#..K50197903-198107

main97153-06304iTE3#,47,51..MTM197408-198004

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90363-20069iKE35,TE37,47,51..5F197408-198004

main90364-16003iKE3#,5#..K40197708-198107

main90364-16047iKE3#,50..K40197408-197708

main90365-32001iKE30,35,5#..K50197606-197903

main90365-32003iKE30,35,5#..K50197903-198107

33421GEAR, COUNTER

main33421-10041iKE35,50..K50197606-197708

N=32,27,22,16,16

main33421-10043iKE30,35,5#..K50197708-197903

N=32,27,22,16,16

main33421-12020iKE3#..K40197408-197512

N=32,28,23,16,16

sub33421-12H00

main33421-12031iKE3#,50..K40197512-197708

N=32,27,22,16,16

sub33421-12H01

main33421-12033iKE3#,5#..K40197708-197903

N=32,27,22,16,16

main33421-12060iKE30,35,5#..K50197903-198105

N=32,27,22,16,16

sub33421-12960

main33421-12061iKE55..K50198105-198107

N=32,27,22,16,16

main33421-12070iKE3#,5#..K40197903-198105

N=32,27,22,16,16

sub33421-12970

main33421-12071iKE3#,55..K40198105-198107

N=32,27,22,16,16

main33421-14010iTE31,47,51..T40197408-198004

N=33,28,22,14

main33421-14021iTE3#,47,51..T50197408-198004

N=33,28,22,14

33435WASHER, COUNTER GEAR CASE SIDE THRUST

main33435-10010iKE30,35,5#..K50197606-198107

T=1.71-1.81,RR

main33435-10020iKE30,35,5#..K50197606-198107

T=1.83-1.93,RR

main33435-10030iKE30,35,5#..K50197606-198107

T=1.95-2.05,RR

main33435-10040iKE35,50..K50197606-197708

T=1.71-1.81,FR

sub33435-10041

main33435-10041iKE30,35,5#..K50197708-197903

T=1.71-1.81,FR

main33435-12010iKE3#,50..K40197408-197708

T=1.95-2.05

main33435-12010iKE3#,5#..K40197708-198107

T=1.95-2.05,RR

main33435-12020iKE3#,5#..K40197708-198107

T=1.71-1.81,FR

main33435-12040iKE30,35,5#..K50197903-198107

T=1.71-1.81,FR

33441WASHER, COUNTER GEAR SIDE THRUST, NO.1

main33441-12010iKE3#,5#..K40197408-198107

T=1.30-1.35

main33442-12011iKE3#,5#..K40197408-198107

T=1.40-1.45

main33443-12011iKE3#,5#..K40197408-198107

T=1.50-1.55

main33444-12010iKE3#,5#..K40197408-198107

T=1.60-1.65

33451SHAFT, REVERSE IDLER GEAR

main33451-12010iKE3#,50..K40197408-198107

main33451-14010iKE35..K50197408-198004

33453SPACER, REVERSE IDLER GEAR SHAFT

main90560-19198iKE3#,5#..K40197408-198107

T=1.0

33454BOLT, SHAFT RETAINING

main33454-12010iKE3#,5#,TE3#,47,51..MTM197408-198107

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-12020iTE47..T50197408-197908

N=5

main33481-12020iKE30,35,36,50..MTM197408-198107

N=5,DIFF R=43:10

main33481-14010iTE3#197408-198107

N=6

main33481-14010iKE30,35,50..K40197512-198107

N=6,DIFF R=41:10

main33481-14010iKE35,36..LHD..EUG197703-198107

N=6,AUSTRIA SPEC

main33481-20080iTE51..LHD..T40..EUG197805-197908

N=6,AUSTRIA SPEC

33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

main90360-05006iKE3#,50..K40197408-197701

sub90360-05012

main90360-05012iKE35..K50197408-198107

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-21066iKE3#,5#,TE3#,47,51..MTM197408-198107

9454100800

main94541-00800
