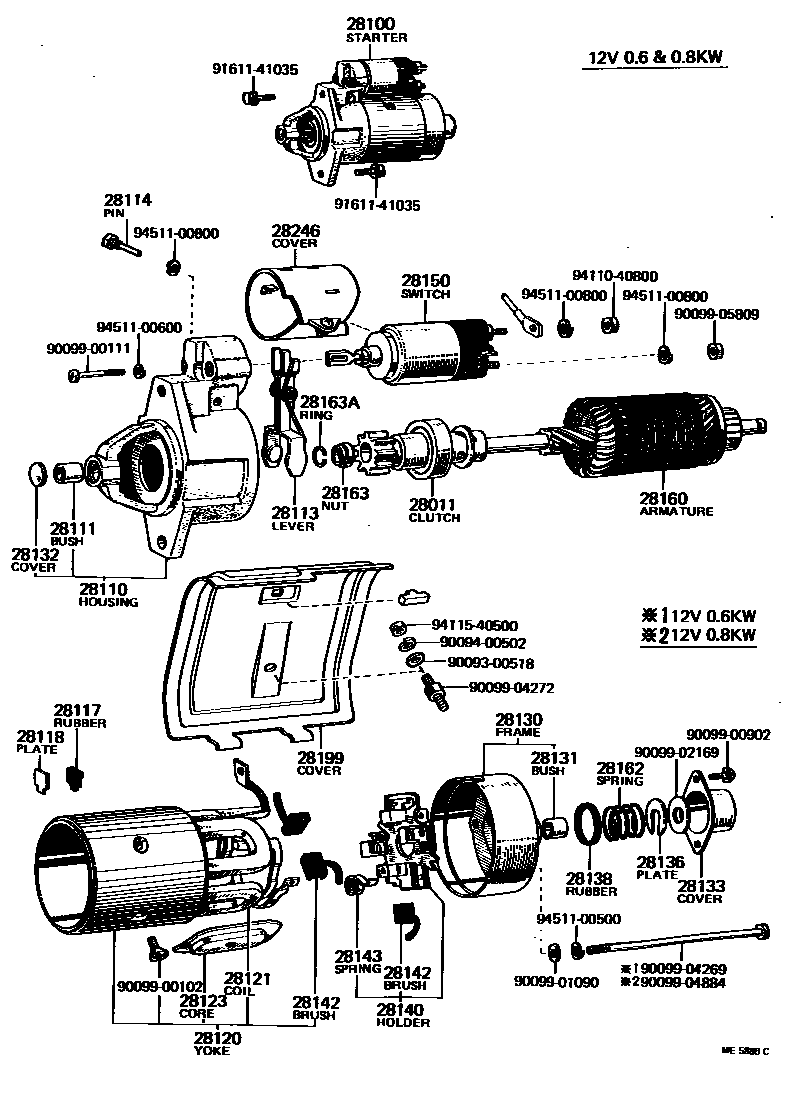

STARTER

0001 1 0002 1

28011CLUTCH SUB-ASSY, STARTER

main28011-22020i3K#,2T#..KE3#,TE3#,47197408-197511

12V 0.6KW,0.8KW

main28011-22022i2T#..TE3#,47,51197511-198004

12V 0.8KW

main28011-41011i3K#..KE3#,50..EUR197701-197805

12V 0.8KW

main28011-41020i2T#..TE47,51..EUG197701-197908

12V 1.0KW

28100STARTER ASSY

main28100-24012i3KH..KE30,35..A20197408-197511

12V 0.6KW

sub28100-24110

main28100-24022i3K#..KE3#..EUR,GEN197408-197511

12V 0.8KW

sub28100-24110

main28100-24030i3KH,3KB..KE3#..MTM197408-197511

12V 0.6KW

main28100-24031i4KC..KE38,55197808-198107

12V 0.6W,12V 0.6KW

sub28100-13060

main28100-24070i3KH,3KB..KE30,35,36,50;3KC..KE30,35,36,50..ARL197701-198107

12V 0.6KW

sub28100-13061

main28100-24080i3KH,3KB..KE3#,50..RHD..GEN197511-197701

12V 0.8KW

sub28100-13030

main28100-24090i3K#..KE3#,50..LHD197511-197701

12V 0.8KW

sub28100-24023

main28100-24100i3KH,3KB..KE3#,50..LHD197511-197701

12V 0.6KW

sub28100-24023

main28100-25021i2T#..TE47,51..EUG197701-197908

12V 1.0KW

sub28100-26150

main28100-25031i2T#..TE47197408-197511

12V 1.0KW

main28100-25032i2T#..TE47,51..LHD197511-197701

12V 1.0KW

sub28100-25040

main28100-26020i2T#..TE3#,47197408-197511

12V 0.8KW

main28100-26021i2T#..TE47,51..LHD197511-197701

12V 0.8KW

main28100-26080i2T#..TE3#,47,51197511-198004

12V 0.8KW

sub28100-26142

28110HOUSING ASSY, STARTER DRIVE

main28110-24010i3K#,4KC..KE3#,5#197408-198107

12V 0.6KW,0.8KW

main28110-25011i2T#..TE3#,47,51197408-198004

12V 0.8KW

main28110-25020i2T#..TE47,51..EUG197701-197908

12V 1.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

28113LEVER, STARTER PINION DRIVE

main28113-25010i2T#..TE3#,47,51197408-198004

12V 0.8KW

main28113-41011i2T#..TE47,51..EUG197701-197908

12V 1.0KW

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

12V 0.6KW,0.8KW

main28114-41011i2T#..TE47,51197408-197701

12V 1.0KW

28117RUBBER(FOR STARTER YOKE)

main28117-25010i2T#..TE3#,47,51197408-198004

12V 0.8KW

sub28117-25011

sub28118-25011

main28117-41012i3K#..KE3#197408-197511

main28117-41013i3K#,4KC..KE3#,5#197511-198107

12V 0.6KW,0.8KW

main28117-41020i2T#..TE47,51..EUG197701-197908

12V 1.0KW

28118PLATE(FOR STARTER YOKE)

main28118-25010i2T#..TE3#,47,51197408-198004

12V 0.8KW

main28118-41012i3K#..KE3#197408-197511

main28118-41013i3K#,4KC..KE3#,5#197511-198107

12V 0.6KW,0.8KW

28120YOKE ASSY, STARTER

main28120-22011i3K#..KE3#,50197408-197701

12V 0.6KW

main28120-24030i4KC..KE38,55197808-198107

12V 0.6KW

main28120-25011i2T#..TE3#,47,51197408-198004

12V 0.8KW

main28120-25021i2T#..TE47,51..EUG197701-197908

12V 1.0KW

main28120-36040i3K#..KE3#,50..ARL,EUR,GEN197511-197701

12V 0.8KW

main28120-89101i3K#..KE3#..EUR,GEN197408-197511

12V 0.8KW

28121COIL, STARTER FIELD

main28121-22011i3K#..KE3#,50197408-197701

12V 0.6KW

sub28121-22012

main28121-25012i2T#..TE3#,47,51197511-198004

12V 0.8KW

main28121-36040i3K#..KE30,35,36,50..EUR197701-197908

12V 0.8KW

main28121-40014i2T..TE3#;3K#,2T#..KE3#,TE47..EUR,GEN197408-197511

12V 0.8KW

main28121-41020i2T#..TE47,51..EUG197701-197908

12V 1.0KW

28123CORE, STARTER POLE

main28123-10011×4i3KC,4KC..KE3#,5#..ARL;3KH,3KB..KE30,35,36,50197701-198107

12V 0.6KW

main28123-40012×4i3K#..KE30,35,36,50..EUR197701-197908

12V 0.8KW

main28123-41020×4i2T#..TE47,51..EUG197701-197908

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21011i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

12V 0.6KW,0.8KW

main28130-41020i2T#..TE47,51..EUG197701-197908

12V 1.0KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

STD

main90099-10039i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

U/S 0.3

main90099-10040i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

U/S 0.5

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

28133COVER, BEARING(FOR END FRAME)

main28132-40010i2T#..TE47,51197408-197701

12V 1.0KW

main28132-41011i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

12V 0.6KW,0.8KW

28136PLATE, STARTER LOCK

main28136-40010i2T#..TE47,51197408-197701

12V 1.0KW

main28136-41011i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

12V 0.6KW,0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-40010i2T#..TE47,51197408-197701

12V 1.0KW

sub28138-26030

main28138-41011i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

12V 0.6KW,0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-22011i3KC,4KC..KE3#,5#..ARL;3KH,3KB..KE30,35,36,50197701-198107

12V 0.6KW

main28140-25010i2T#..TE3#,47,51197511-198004

12V 0.8KW

main28140-25011i2T#..TE3#,47197408-197511

12V 0.8KW

main28140-25020i2T#..TE47,51197408-197701

12V 1.0KW

main28140-41012i3K#..KE3#,50..ARL,EUR,GEN197408-197701

12V 0.8KW

sub28140-41013

28142BRUSH, STARTER

main28142-10011×4i3K#..KE3#,50197511-197701

12V 0.6KW

main28142-21010×4i3K#..KE3#,50..ARL,EUR,GEN197408-197701

12V 0.8KW

main28142-25010×4i2T#..TE3#,47,51197511-198004

12V 0.8KW

main28142-25011×4i2T#..TE3#,47197408-197511

12V 0.8KW

main28142-25020×2i2T#..TE47,51..EUG197701-197908

12V 1.0KW

main28142-25021×4i2T#..TE47197408-197511

12V 1.0KW

28143SPRING, STARTER BRUSH

main28143-40010×4i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

sub28143-40040

28150SWITCH ASSY, MAGNET STARTER

main28150-22011i3KH,3KB..KE3#..MTM197408-197511

12V 0.6KW

main28150-24010i3K#..KE3#,50..ARL,EUR,GEN197408-197701

12V 0.8KW

main28150-24060i4KC..KE38,55197808-198107

12V 0.6KW

sub28150-24061

main28150-24070i3KH,3KB..KE30,35,36,50;3KC..KE30,35,36,50..ARL197709-198107

12V 0.6KW

main28150-24071i3K#..KE30,35,36,50..EUR197709-197908

12V 0.8KW

main28150-25010i2T#..TE47,51..RHD197511-197701

12V 1.0KW

sub28150-25030

main28150-25020i2T#..TE47,51..EUG197808-197908

12V 1.0KW

main28150-25031i2T#..TE3#,47197408-197511

main28150-25032i3K#,2T#..KE3#,50,TE47,51..LHD197511-197701

28160ARMATURE ASSY, STARTER

main28160-22011i3KC,4KC..KE3#,5#..ARL;3KH,3KB..KE30,35,36,50197701-198107

12V 0.6KW

main28160-22021i3K#,2T#..KE3#,TE3#,47197408-197511

12V 0.6KW,0.8KW

main28160-40014i3K#..KE3#,50..ARL,EUR,GEN197511-197701

12V 0.8KW

main28160-41020i2T#..TE47,51..EUG197701-198004

12V 1.0KW

28162SPRING, STARTER BRAKE

main28162-41011i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

12V 0.6KW,0.8KW

main28162-41022i2T#..TE47,51..EUG197701-197908

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

28199COVER, STARTER

main28199-24030i4KC..KE38,55197808-198107

12V 0.6KW

28246COVER, MAGNET SWITCH

main28246-25010i2T#..TE3#,47197408-197511

9009300518

main90093-00518

9009400502

main90094-00502

9009900102

main90099-00102

9009900111

main90099-00111

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904269

main90099-04269

9009904272

main90099-04272

9009904884

main90099-04884

9009905809

main90099-05809

9161141035

main91611-41035

9411040800

main94110-40800

9411540500

main94115-40500

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

44 parts on this diagram · 2 diagrams in section
