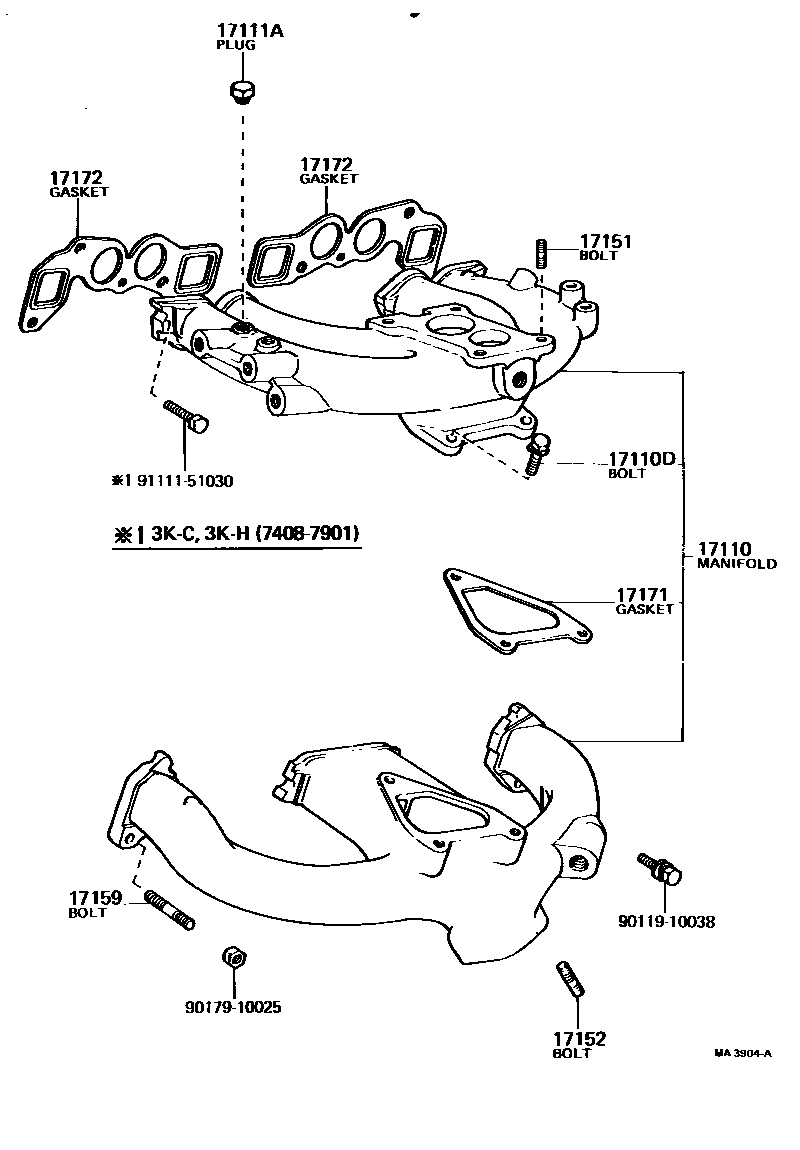

MANIFOLD
17110MANIFOLD ASSY
sub17110-13100
sub17110-13071
sub17110-13072
sub17110-24043
sub17110-24043
17110DBOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
L=38,S=12&12
17111MANIFOLD, INTAKE
sub17111-25020
sub17111-25901
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=30,S=13&13
L=33,S=13&13
L=39,S=13&13
L=41,S=14&14
L=43,S=12&12
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=41,S=14&21
L=37,S=20&13
L=37,S=15&15
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
L=37,S=13.5&13.5
L=37.4,S=13&13
L=37.4,S=13.7&13.7
L=42,S=14&14
L=43,S=15&15
L=40,S=13.7&13.7
17171GASKET, INTAKE TO EXHAUST MANIFOLD
sub17171-13040
17172GASKET, MANIFOLD TO CYLINDER HEAD
RR
9011910038
main90119-10038
9017910025
main90179-10025
9111151030
main91111-51030
12 parts on this diagram · 7 diagrams in section
