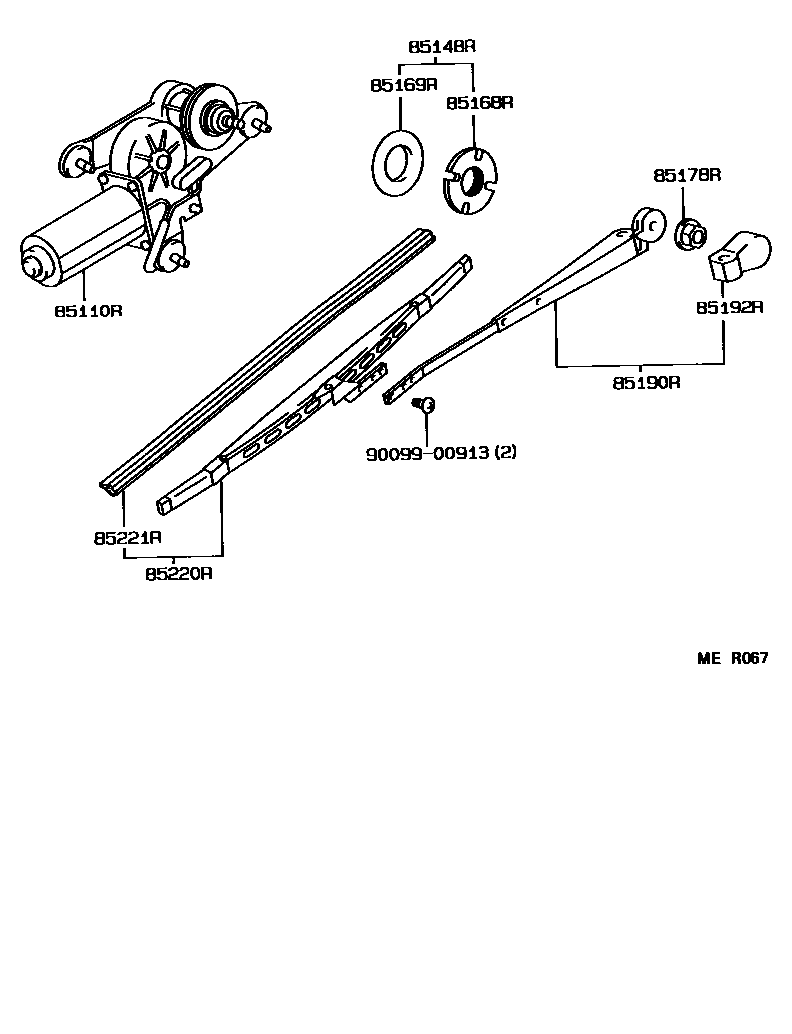

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85110-12470iAE95199009-199508

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main85148-12020iAE95199009-199508

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90179-22013iAE95199009-199508

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90210-28002iAE95199009-199508

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAE95199009-199508

85190RARM ASSY, REAR WIPER

main85190-1A061iAE95199009-199508

85192RCOVER, REAR WIPER ARM

main85192-13060iAE95199009-199508

85220RBLADE ASSY, REAR WIPER

main85220-22531iAE95199009-199508

sub85242-23010

85221RBLADE, REAR WIPER

main85221-16070iAE95199009-199508

sub85214-12H90

9009900913

main90099-00913

10 parts on this diagram · 1 diagram in section
