Toyota COROLLA WAGON — WIRING & CLAMP

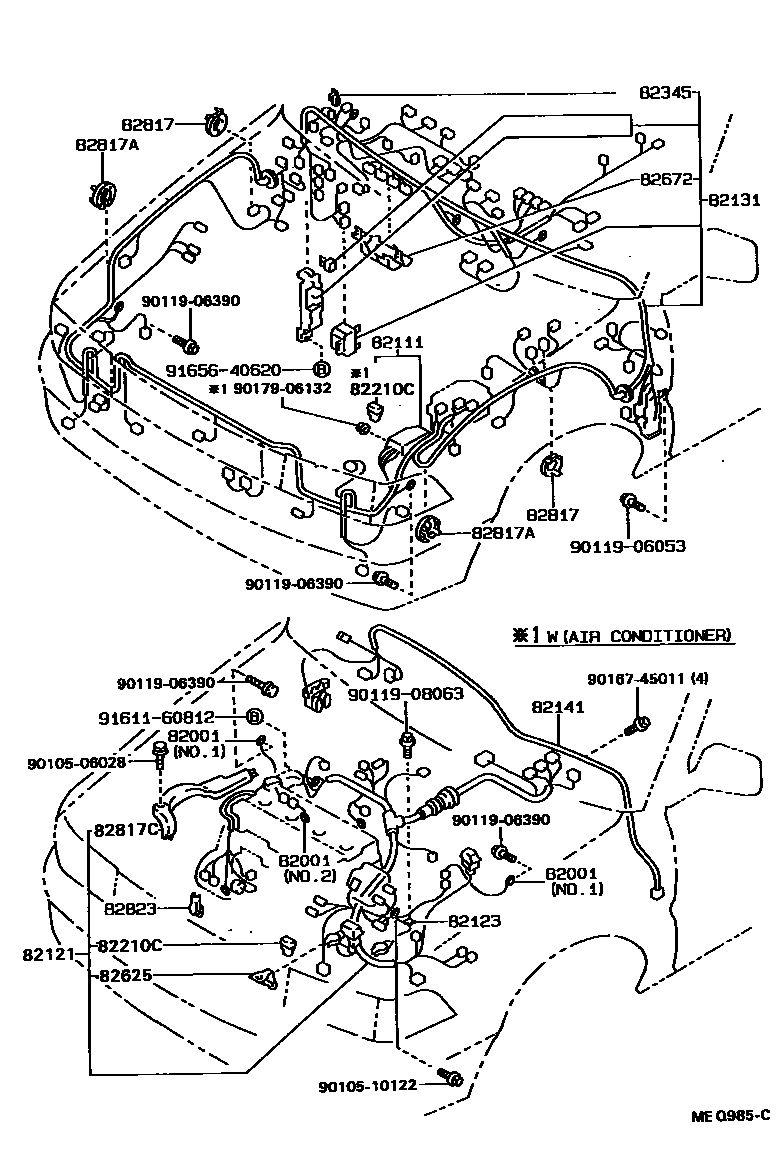

Parts diagram

82001CABLE, BOND, NO.1

82111WIRE, ENGINE ROOM MAIN

82121WIRE, ENGINE

82123WIRE, ENGINE, NO.3

82131WIRE, COWL

82141WIRE, INSTRUMENT PANEL

82210CFUSIBLE LINK

82345DIODE

82625TERMINAL, FUSIBLE LINK

82672COVER, JUNKTION BLOCK

82817PROTECTOR, WIRING HARNESS, NO.1

82817APROTECTOR, WIRING HARNESS, NO.2

82817CPROTECTOR, WIRING HARNESS, NO.4

82823CAP, TERMINAL, NO.1

9010506028

9010510122

9011906053

9011906390

9011908063

9016745011

9017906132

9161160812

9165640620

23 parts on this diagram · 7 diagrams in section

WIRING & CLAMP for Toyota COROLLA WAGON

This section contains 75 genuine Toyota parts for the WIRING & CLAMP system of the Toyota COROLLA WAGON. Key components include: CABLE, BOND, NO.1, BATTERY & BATTERY CABLE, WIRE, ENGINE ROOM MAIN, WIRE, ENGINE, WIRE, ENGINE, NO.3.
