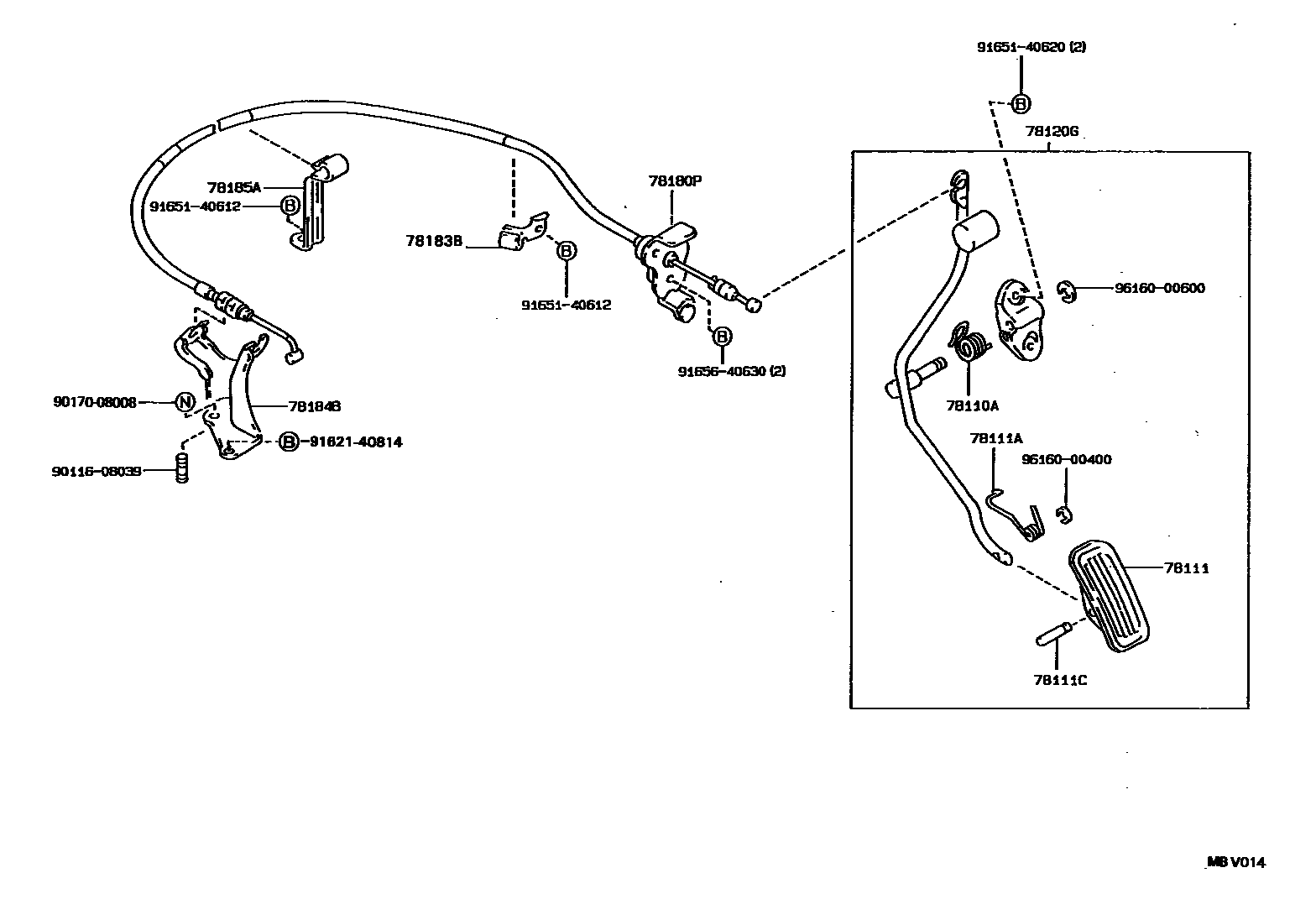

ACCELERATOR LINK

0001 1 0002 1 0003 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE95199009-199508

78111PEDAL, ACCELERATOR

main78111-32010iAE95199009-199508

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-20056iAE95199009-199508

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE95199009-199508

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12080iAE95..RHD199009-199205

main78120-12120iAE95..LHD199009-199508

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-12781iAE95..RHD199009-199205

main78180-1A010iAE95..LHD..CBR199009-199205

main78180-1A350iAE95..EFI199009-199508

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12100iAE95..RHD199009-199205

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12230iAE95..CBR199009-199205

main78184-12250iAE95..EFI199009-199508

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78183-12140iAE95..RHD199009-199205

9011608039

main90116-08039

9017008008

main90170-08008

9162140814

main91621-40814

9165140612

main91651-40612

9165140620

main91651-40620

9165640630

main91656-40630

9616000400

main96160-00400

9616000600

main96160-00600

17 parts on this diagram · 3 diagrams in section
