FRONT SEAT & SEAT TRACK

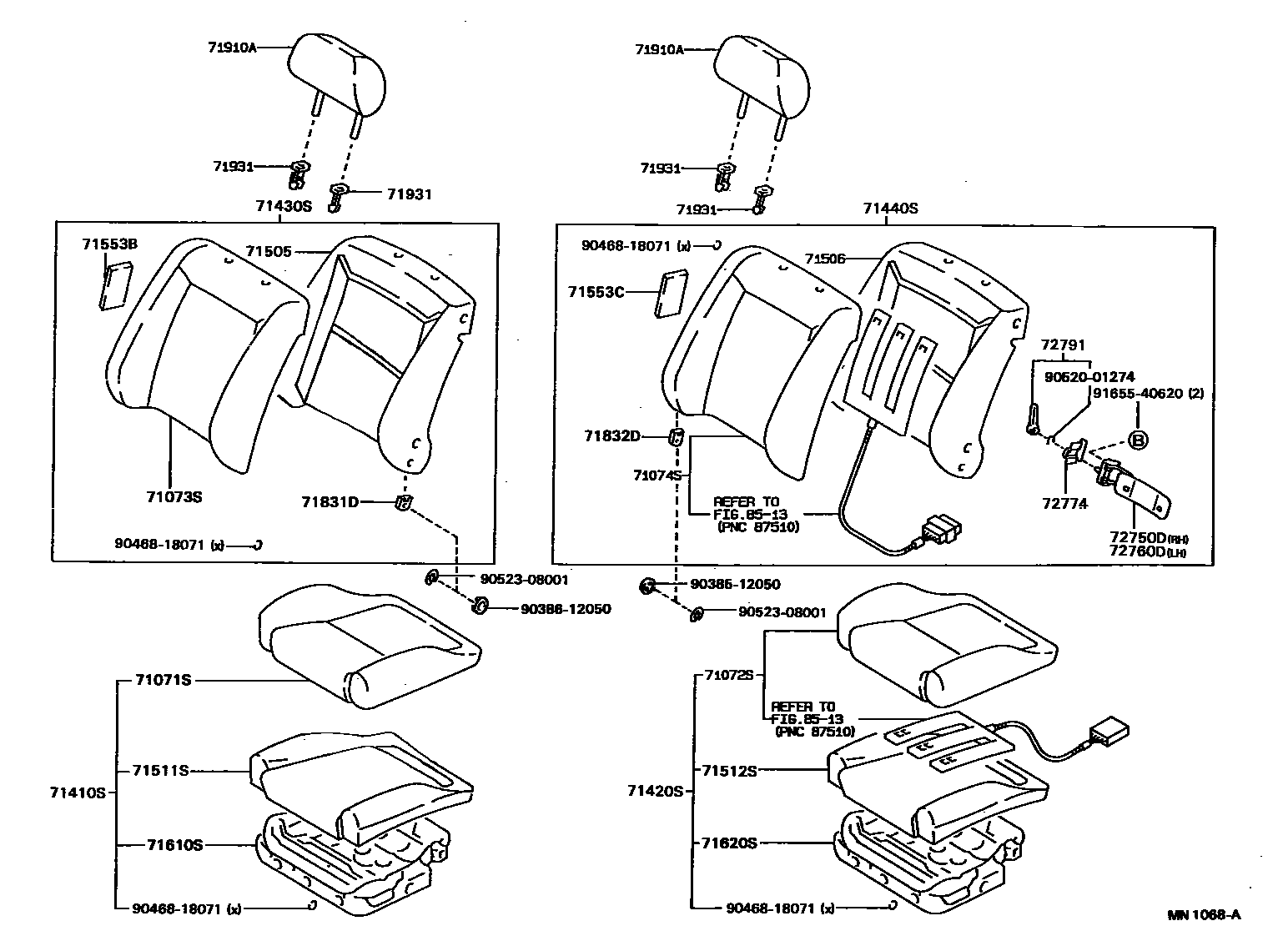

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1H711-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1H711-04i199009-199508
DARK BLUE,TRIM8#
main71071-1H751-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1H751-04i199009-199508
DARK BLUE,TRIM8#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-1H711-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1H711-04i199009-199508
DARK BLUE,TRIM8#
main71071-1H751-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1H751-04i199009-199508
DARK BLUE,TRIM8#
main71071-1H811-03i199009-199102
FINLAND OR DENMARK SPEC & W(*SH & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#; SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(*SH & 2 WAY VERTICAL SEAT),SHADOWGRAY,TRIM1#
main71071-1H811-04i199009-199205
FINLAND SPEC & W(*SH) OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71071-1H831-03i199009-199102
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH);FINLAND SPEC & W(*SH) OR DENMARK SPEC& W(*SH),SHADOW GRAY,TRIM1#
main71071-1H831-04i199102-199308
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH);FINLAND SPEC & W(*SH) OR DENMARK SPEC& W(*SH),DARK BLUE,TRIM8#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1H281-03i199009-199508
SHADOW GRAY,TRIM1#
main71073-1H281-04i199009-199508
DARK BLUE,TRIM8#
main71073-1H880-03i199009-199508
SHADOW GRAY,TRIM1#
main71073-1H880-04i199009-199508
DARK BLUE,TRIM8#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-1E211-03i199009-199102
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH);FINLAND SPEC & W(*SH) OR DENMARK SPEC& W(*SH),SHADOW GRAY,TRIM1#
main71074-1E211-04i199009-199205
FINLAND SPEC & W(*SH) OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71074-1E241-03i199009-199508
SHADOW GRAY,TRIM1#
main71074-1E241-04i199009-199508
DARK BLUE,TRIM8#
main71074-1E690-03i199009-199102
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH);FINLAND SPEC & W(*SH) OR DENMARK SPEC& W(*SH),SHADOW GRAY,TRIM1#
main71074-1E690-04i199009-199102
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH);FINLAND SPEC & W(*SH) OR DENMARK SPEC& W(*SH),DARK BLUE,TRIM8#
main71074-1E860-03i199009-199508
SHADOW GRAY,TRIM1#
main71074-1E860-04i199009-199508
DARK BLUE,TRIM8#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1K201-03i199009-199508
SHADOW GRAY,TRIM1#
main71410-1K201-04i199009-199508
BROWN,TRIM8#
main71410-1K211-03i199009-199508
SHADOW GRAY,TRIM1#
main71410-1K211-04i199009-199508
DARK BLUE,TRIM8#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-1K201-03i199009-199508
SHADOW GRAY,TRIM1#
main71410-1K201-04i199009-199508
BROWN,TRIM8#
main71410-1K211-03i199009-199508
SHADOW GRAY,TRIM1#
main71410-1K211-04i199009-199508
DARK BLUE,TRIM8#
main71410-1K301-03i199102-199508
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH);FINLAND SPEC & W(*SH) OR DENMARK SPEC& W(*SH),SHADOW GRAY,TRIM1#
main71410-1K301-04i199102-199508
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH);FINLAND SPEC & W(*SH) OR DENMARK SPEC& W(*SH),DARK BLUE,TRIM8#
main71410-1K321-03i199102-199308
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH);FINLAND SPEC & W(*SH) OR DENMARK SPEC& W(*SH),SHADOW GRAY,TRIM1#
main71410-1K321-04i199102-199308
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH);FINLAND SPEC & W(*SH) OR DENMARK SPEC& W(*SH),DARK BLUE,TRIM8#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-1H611-03i199009-199508
SHADOW GRAY,TRIM1#
main71430-1H611-04i199009-199508
DARK BLUE,TRIM8#
main71430-1K210-03i199009-199508
SHADOW GRAY,TRIM1#
main71430-1K210-04i199009-199508
DARK BLUE,TRIM8#
main71430-1K270-03i199009-199205
W(2-WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71430-1K270-04i199009-199205
W(2-WAY VERTICAL SEAT),DARK BLUE,TRIM8#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-1H511-03i199009-199102
SWEDEN SPEC & W(*SH & 2-WAY VERTICAL SEAT) OR NORWAY SPEC & W(*SH & 2-WAY VERTICALSEAT);FINLAND SPEC & W(*SH & 2-WAY VERTICAL SEAT) OR DENMARK SPEC & W(*SH & 2-WAYVERTICAL SEAT),SHADOW GRAY,TRIM1#
main71440-1H511-04i199009-199205
FINLAND SPEC & W(*SH & 2-WAY VERTICAL SEAT) OR DENMARK SPEC & W(*SH & 2-WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71440-1H541-03i199009-199508
SHADOW GRAY,TRIM1#
main71440-1H541-04i199009-199508
DARK BLUE,TRIM8#
main71440-1K100-03i199308-199508
SHADOW GRAY,TRIM1#
main71440-1K100-04i199009-199308
W(2-WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71440-1K110-03i199009-199102
FINLAND SPEC & W(*SH) OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71440-1K110-04i199009-199102
FINLAND SPEC & W(*SH) OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71440-1K120-03i199009-199205
FINLAND SPEC & W(*SH & 2-WAY VERTICAL SEAT) OR DENMARK SPEC & W(*SH & 2-WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71440-1K120-04i199308-199508
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH);FINLAND SPEC & W(*SH) OR DENMARK SPEC& W(*SH),DARK BLUE,TRIM8#
main71440-1K230-03i199009-199308
SHADOW GRAY,TRIM1#
main71440-1K230-04i199009-199308
DARK BLUE,TRIM8#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-12030i199009-199205
W(2-WAY VERTICAL SEAT)
main71505-12050i199009-199508
main71505-12060i199009-199508
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-12030i199308-199508
main71506-12040i199009-199508
main71506-12050i199102-199308
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH);FINLAND SPEC & W(*SH) OR DENMARK SPEC& W(*SH)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12670i199009-199508
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-12670i199009-199508
71553BPAD, FRONT SEATBACK, B
main71553-12200i199009-199508
71553CPAD, FRONT SEATBACK, C
main71553-12200i199009-199508
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-12320i199009-199508
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-12320i199009-199508
71831DCOVER, FRONT SEAT HINGE, RH
main71831-12010i199009-199508
71832DCOVER, FRONT SEAT HINGE, LH
main71831-12010i199009-199508
71910AHEADREST ASSY, FRONT SEAT
main71910-12791-03×2i199009-199508
SHADOW GRAY,TRIM1#
main71910-12791-04×2i199009-199508
DARK BLUE,TRIM8#
main71910-1A180-03×2i199009-199508
SHADOW GRAY,TRIM1#
main71910-1A180-04×2i199009-199508
DARK BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12050-03×2i199009-199508
W(LOCK),SHADOW GRAY,TRIM1#
main71930-12050-04×2i199009-199508
W(LOCK),DARK BLUE,TRIM8#
main71931-12010-03×2i199009-199508
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-12010-04×2i199009-199508
W/O(LOCK),DARK BLUE,TRIM8#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-12060i199009-199205
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-12070i199009-199308
72774PROTECTOR, LUMBAR SUPPORT SPRING
main72774-12020i199009-199308
72791LEVER, LUMBAR SUPPORT
main72791-20030-03i199009-199308
SHADOW GRAY,TRIM1#
main72791-20030-14i199009-199308
DARK BLUE,TRIM8#
main72791-20050-B2i199406-199508
SHADOW GRAY,TRIM1#
main72791-20050-J0i199406-199508
DK. BLUE,TRIM8#
8513SEAT MOTOR & SEAT HEATER
→ Go to FIG 85-13
9038512050
main90385-12050
9038612050
main90386-12050
9046818071
main90468-18071
9052001274
main90520-01274
9052308001
main90523-08001
9165540620
main91655-40620

31 parts on this diagram · 2 diagrams in section
