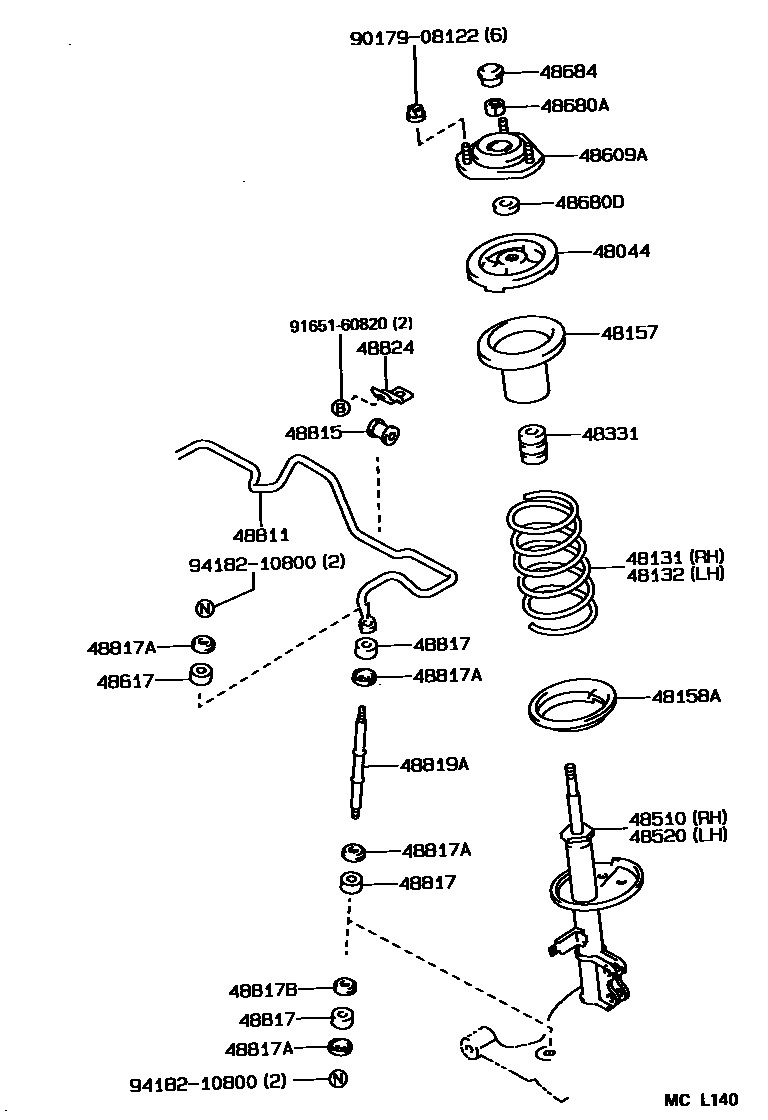

FRONT SPRING & SHOCK ABSORBER
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48131SPRING, FRONT COIL, RH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE & W(AIR CONDITIONER)
W(AIR CONDITIONER)
48132SPRING, FRONT COIL, LH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE & W(AIR CONDITIONER)
W(AIR CONDITIONER)
48157INSULATOR, FRONT COIL SPRING, UPPER
48158AINSULATOR, FRONT COIL SPRING, LOWER
48331BUMPER, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48510-12650
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48520-12520
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
ROUGH ROAD PACKAGE
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48811BAR, STABILIZER, FRONT
ROUGH ROAD PACKAGE
48815BUSH, FRONT STABILIZER BAR, NO.1
ROUGH ROAD PACKAGE
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48819ABOLT, FRONT STABILIZER
48824BRACKET, STABILIZER, FRONT
9017908122
main90179-08122
9165160820
main91651-60820
9418210800
main94182-10800
22 parts on this diagram · 1 diagram in section
