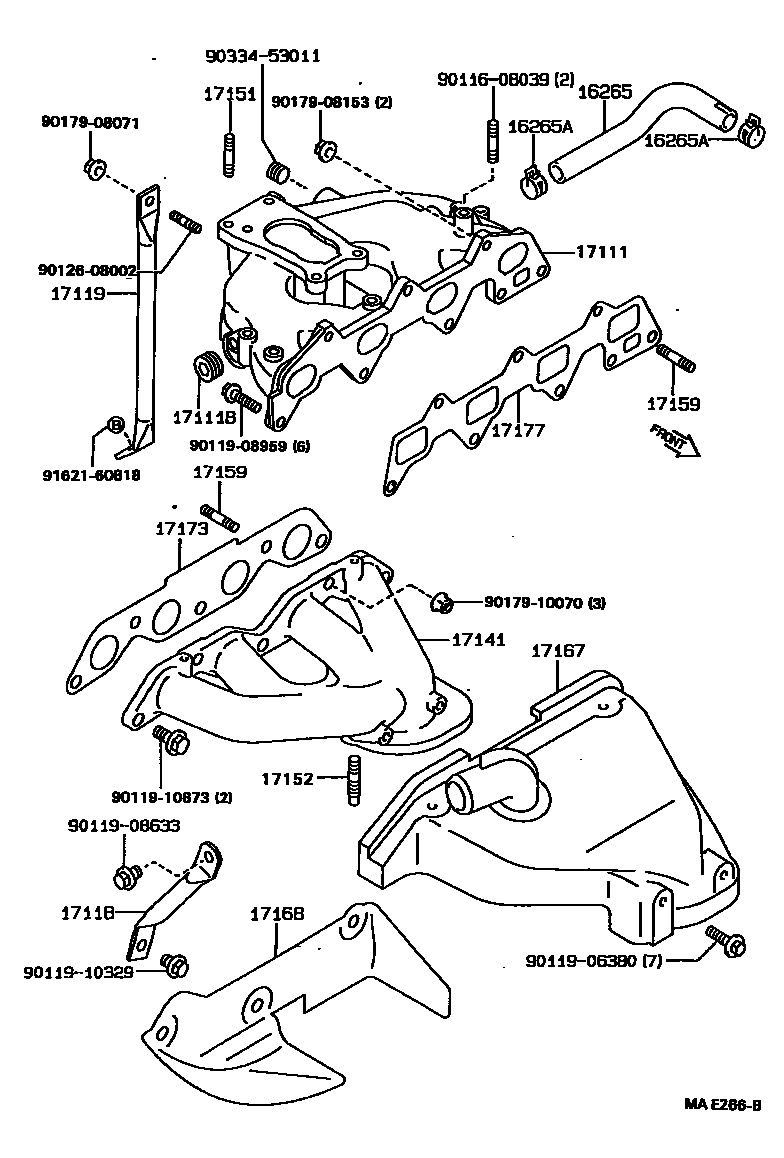

MANIFOLD

0001 1 0002 1

16265HOSE, INTAKE MANIFOLD WATER

main16265-15020i4AF..AE95199009-199205

16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)

main90467-21006i4AF..AE95199009-199205

17111MANIFOLD, INTAKE

main17101-16080i4AF..AE95199009-199205

main17101-16160i4AFE..AE95199009-199508

17111BPLUG, NO.2

main90344-54003i4AF..AE95199009-199205

17118STAY, MANIFOLD

main17118-16050i4AF#..AE95199009-199508

17119STAY, MANIFOLD, NO.2

main17139-16020i4AF..AE95199009-199205

main17139-16050i4AFE..AE95199009-199508

17141MANIFOLD, EXHAUST

main17141-16200i4AF#..AE95199009-199508

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main92112-60832i4AF..AE95199009-199205

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10146i4AF#..AE95199009-199508

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main92112-60825i4AF#..AE95199009-199508

INTAKE SIDE

main92112-61028i4AF#..AE95199009-199508

EXHAUST SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17107-16070i4AF..AE95199009-199205

sub17107-16071

main17167-16090i4AFE..AE95199009-199206

sub17167-16150

main17167-16150i4AFE..AE95199206-199508

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-16050i4AF#..AE95199009-199304

sub17168-16080

main17168-16100i4AFE..AE95199304-199508

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-15011i4AF#..AE95199009-199205

main17173-15040i4AFE..AE95199107-199508

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-15021i4AFE..AE95199009-199508

main17171-16031i4AF..AE95199009-199205

9011608039

main90116-08039

9011906380

main90119-06380

9011908633

main90119-08633

9011908959

main90119-08959

9011910329

main90119-10329

9011910673

main90119-10673

9012608002

main90126-08002

9017908071

main90179-08071

9017908153

main90179-08153

9017910070

main90179-10070

9033453011

main90334-53011

9162160818

main91621-60818

26 parts on this diagram · 2 diagrams in section
