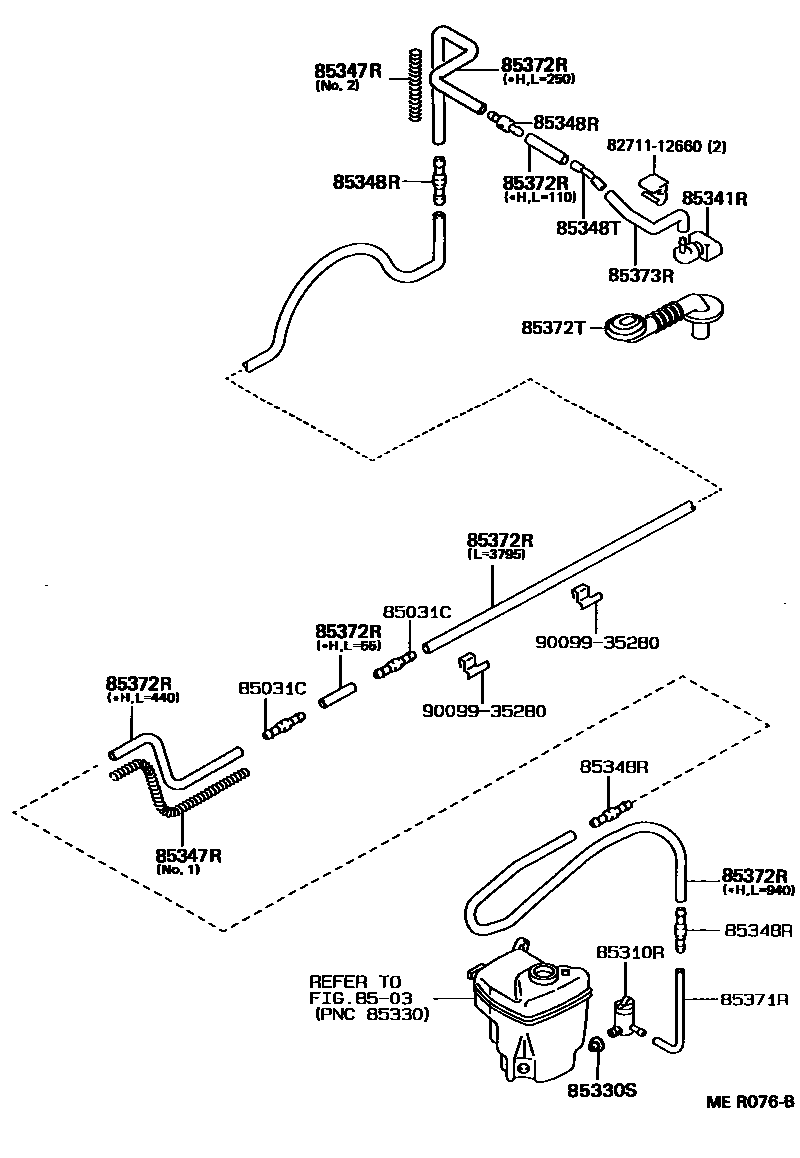

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031CVALVE SUB-ASSY, WASHER

main85031-30010×2iAE95199009-199308

85310RMOTOR ASSY, REAR WASHER

main85310-12170iAE95199009-199308

85330SBUSH, REAR WASHER JAR

main90099-32089iAE95199009-199308

85341RNOZZLE ASSY, WASHER

main85341-12240iAE95199009-199308

85347RSPRING

main85347-12150iAE95199009-199308

NO.2

main85347-13100iAE95199009-199308

NO.1

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×4iAE95199009-199308

85348TJOINT, REAR WASHER HOSE, NO.2

main85355-20080iAE95199009-199308

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iAE95199009-199308

L=1000

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iAE95199009-199308

L=1450

main90099-33299iAE95199009-199308

L=1000

main90099-33852iAE95199009-199308

L=4985(*H,L=3801)

main90446-07001iAE95199009-199308

L=1800

85372TGROMMET, WASHER

main85372-12020iAE95199009-199308

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iAE95199009-199308

L=1000

8271112660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12660

9009935280

main90099-35280

14 parts on this diagram · 1 diagram in section
