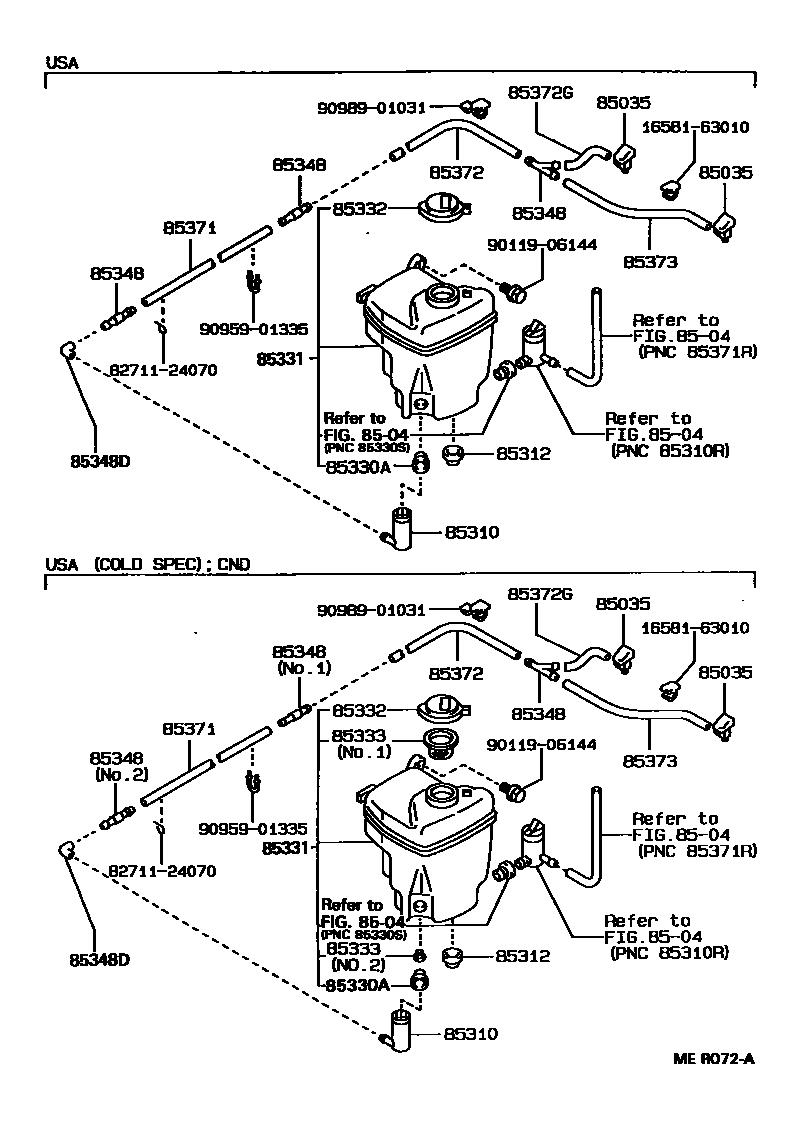

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85035-12290iAE95199009-199308

sub85381-12050

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-14080iAE95..USA199009-199208

COLD SPEC

sub85330-50020

main85310-14080iAE95..CND199009-199308

sub85330-50020

main85310-16050iAE95..USA199009-199208

sub85330-60140

85312PACKING, WINDSHIELD WASHER TANK

main85312-12650iAE95199009-199308

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAE95..USA199009-199208

main90099-32103iAE95..USA199009-199208

COLD SPEC

main90099-32103iAE95..CND199009-199308

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-12680iAE95..USA199009-199208

main85331-12700iAE95..USA199009-199208

COLD SPEC

main85331-12700iAE95..CND199009-199308

85332CAP, WINDSHIELD WASHER JAR

main85332-12660iAE95199009-199308

sub85316-34040

85333FILTER, WINDSHIELD WASHER JAR

main85333-20010iAE95..USA199009-199208

COLD SPEC,NO.1

main85333-20010iAE95..CND199009-199308

NO.1

main85333-20020iAE95..CND199009-199308

NO.2

main85333-20020iAE95..USA199009-199208

COLD SPEC,NO.2

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iAE95199009-199308

3-WAY

main85349-14010iAE95..USA199009-199208

COLD SPEC,2-WAY,NO.1

sub85334-22470

main85349-14010iAE95..CND199009-199308

2-WAY,NO.1

sub85334-22470

main85349-20010iAE95..USA199009-199208

COLD SPEC,2-WAY,NO.2

sub85334-22480

main85349-20010iAE95..CND199009-199308

2-WAY,NO.2

sub85334-22480

main85349-89122iAE95..USA199009-199208

2-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iAE95..USA199009-199208

main85355-32110iAE95..USA199009-199208

COLD SPEC

main85355-32110iAE95..CND199009-199308

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iAE95..USA199009-199208

L=1100,COLD SPEC

main90099-33075iAE95..CND199009-199308

L=1100

main90099-33410iAE95..USA199009-199208

L=1800(*H,L=1100)

sub90446-07001

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33196iAE95199009-199308

L=1450(*H,L=560)

sub90099-33080

85372GTUBE, RUBBER

main90099-33080iAE95..USA199009-199308

L=1450

main90099-33080iAE95..USA199009-199208

L=1450,COLD SPEC

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAE95199009-199308

L=1450

1658163010CLAMP, HOSE(FOR WATER HOSE)

main16581-63010

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

9011906144

main90119-06144

9095901335

main90959-01335

9098901031

main90989-01031

19 parts on this diagram · 1 diagram in section
