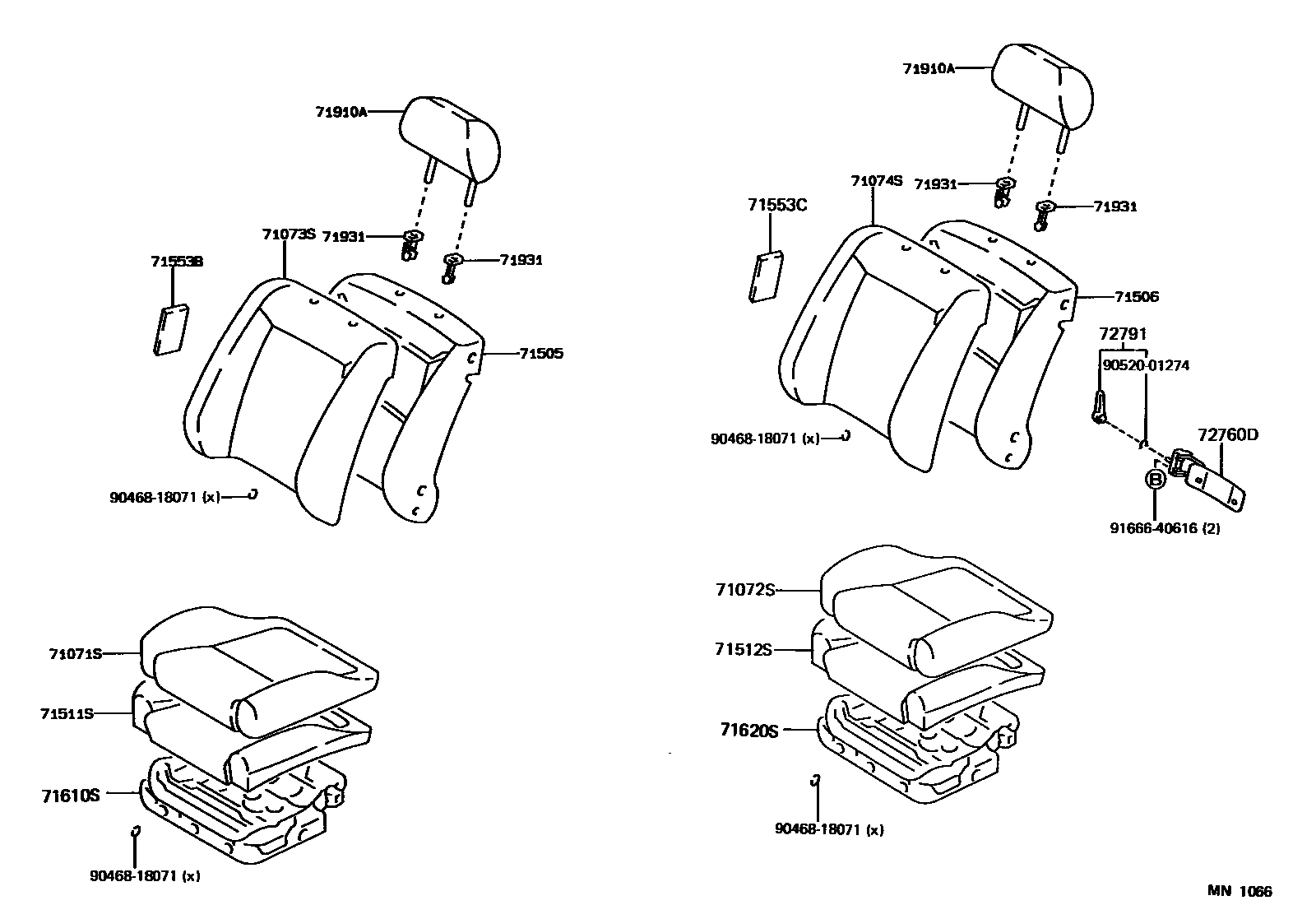

FRONT SEAT & SEAT TRACK

0001 1 0002 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-1H621-03iAE95..SR5199009-199208

SHADOW GRAY,TRIM1#

main71071-1H621-04iAE95..SR5199009-199208

DARK BLUE,TRIM8#

main71071-1H690-03iAE95..DX..USA199009-199208

SHADOW GRAY,TRIM1#

main71071-1H690-04iAE95..DX..USA199009-199208

DARK BLUE,TRIM8#

main71071-1H772-03iAE95..DX..CND199009-199308

SHADOW GRAY,TRIM1#

main71071-1H772-04iAE95..DX..USA199009-199208

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-1H690-03iAE95..DX..USA199009-199208

SHADOW GRAY,TRIM1#

main71071-1H690-04iAE95..DX..USA199009-199208

DARK BLUE,TRIM8#

main71071-1H772-03iAE95..DX..CND199009-199308

SHADOW GRAY,TRIM1#

main71071-1H772-04iAE95..DX..USA199009-199208

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71071-1K090-03iAE95..SR5199009-199208

SHADOW GRAY,TRIM1#

main71071-1K090-04iAE95..SR5199009-199208

DARK BLUE,TRIM8#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1H330-03iAE95..DX..USA199009-199208

SHADOW GRAY,TRIM1#

main71073-1H330-04iAE95..DX..USA199009-199208

DARK BLUE,TRIM8#

main71073-1H541-03iAE95..SR5199009-199208

SHADOW GRAY,TRIM1#

main71073-1H541-04iAE95..SR5199009-199208

DARK BLUE,TRIM8#

main71073-1H870-03iAE95..DX..USA199009-199208

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71073-1H870-04iAE95..DX..CND199009-199308

DARK BLUE,TRIM8#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-1E300-03iAE95..DX..USA199009-199208

SHADOW GRAY,TRIM1#

main71074-1E300-04iAE95..DX..USA199009-199208

DARK BLUE,TRIM8#

main71074-1E501-03iAE95..SR5199009-199208

SHADOW GRAY,TRIM1#

main71074-1E501-04iAE95..SR5199009-199208

DARK BLUEE,TRIM8#

main71074-1E850-03iAE95..DX..CND199009-199308

SHADOW GRAY,TRIM1#

main71074-1E850-04iAE95..DX..CND199009-199308

DARK BLUE,TRIM8#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-12070iAE95199009-199308

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71505-12070iAE95..DX199009-199308

main71505-12080iAE95..SR5199009-199208

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-12670iAE95..DX199009-199308

main71511-12680iAE95..SR5199009-199208

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-12670iAE95..DX199009-199308

main71511-12680iAE95..SR5199009-199208

71553BPAD, FRONT SEATBACK, B

main71553-12230iAE95..SR5199009-199208

71553CPAD, FRONT SEATBACK, C

main71553-12230iAE95..SR5199009-199208

main71553-12260iAE95..SR5199009-199208

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-12300iAE95199009-199308

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-12300iAE95199009-199308

71910AHEADREST ASSY, FRONT SEAT

main71910-12711-03×2iAE95..SR5199009-199208

SHADOW GRAY,TRIM1#

main71910-12711-04×2iAE95..SR5199009-199208

DARK BLUE,TRIM8#

main71910-12741-03×2iAE95..DX..CND199009-199308

SHADOW GRAY,TRIM1#

main71910-12741-04×2iAE95..DX..USA199009-199208

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71910-1A110-B0×2iAE95..DX..USA199009-199208

SHADOW GRAY,TRIM1#

main71910-1A110-J0×2iAE95..DX..USA199009-199208

DARK BLUE,TRIM8#

71931SUPPORT, FRONT SEAT HEADREST

main71930-12050-03×2iAE95199009-199308

W(LOCK),SHADOW GRAY,TRIM1#

main71930-12050-04×2iAE95199009-199308

W(LOCK),DARK BLUE,TRIM8#

main71931-12010-03×2iAE95199009-199308

W/O(LOCK),SHADOW GRAY,TRIM1#

main71931-12010-04×2iAE95199009-199308

W/O(LOCK),DARK BLUE,TRIM8#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-12090iAE95..SR5199009-199208

72791LEVER, LUMBAR SUPPORT

main72791-20030-03iAE95..SR5199009-199208

SHADOW GRAY,TRIM1#

main72791-20030-14iAE95..SR5199009-199208

DARK BLUE,TRIM8#

9046818071

main90468-18071

9052001274

main90520-01274

9166640616

main91666-40616

19 parts on this diagram · 2 diagrams in section
