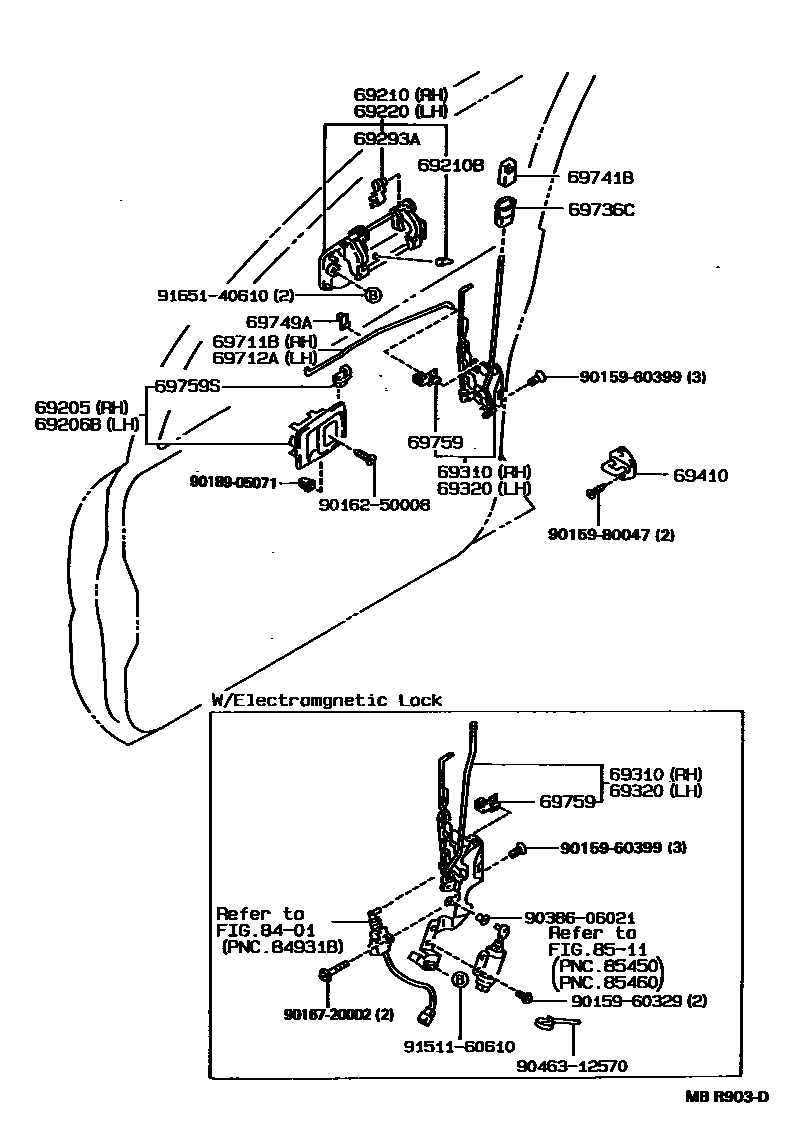

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER WINDOW)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER WINDOW)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69736CGUIDE, FRONT DOOR LOCKING LINK
sub69736-12030
69741BKNOB, FRONT DOOR LOCK CONTROL
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
LH
RH
69759SSNAP, FRONT DOOR INSIDE HANDLE
RH
LH
8401
8511
9015960329
main90159-60329
9015960399
main90159-60399
9015980047
main90159-80047
9016250008
main90162-50008
9016720002
main90167-20002
9018905071
main90189-05071
9038606021
main90386-06021
9046312570
main90463-12570
9151160610
main91511-60610
9165140610
main91651-40610
28 parts on this diagram · 1 diagram in section
