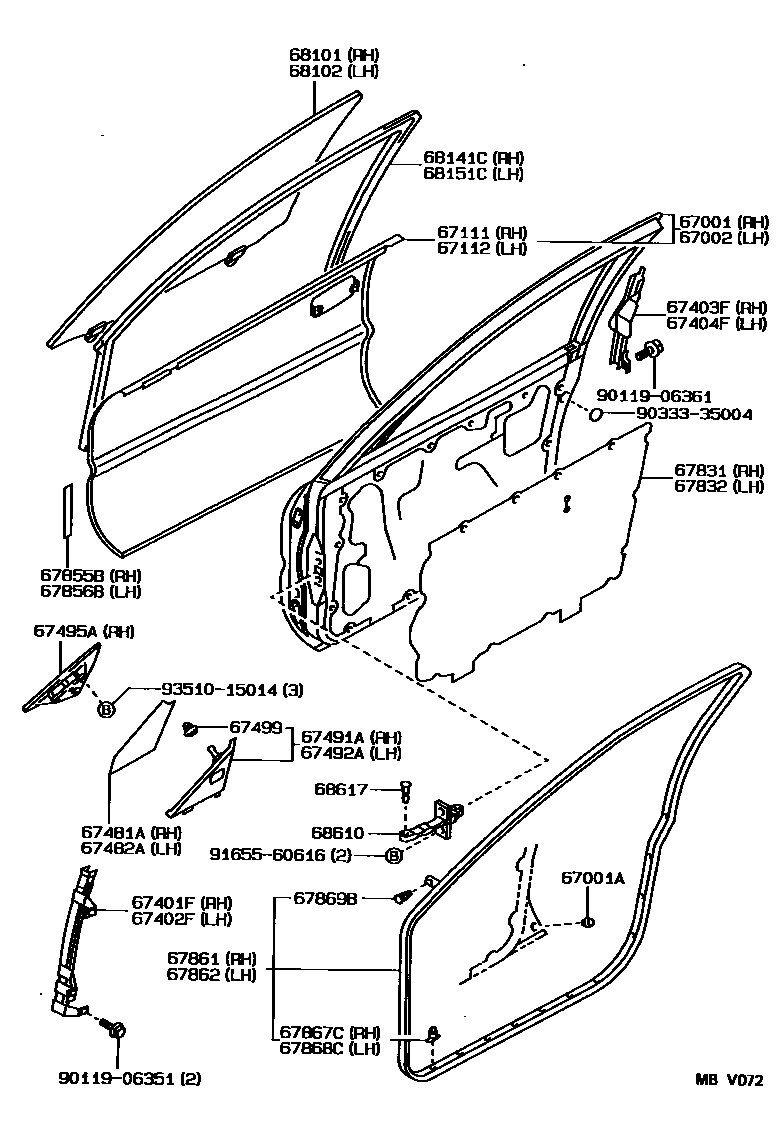

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
W(MANUAL REMOTE CONTROL MIRROR)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
W(ELECTRICAL *RCM)
W(MANUAL REMOTE CONTROL MIRROR)
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=3.5
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=3.5
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
9011906351
main90119-06351
9011906361
main90119-06361
9033335004
main90333-35004
9165560616
main91655-60616
9351015014
main93510-15014
35 parts on this diagram · 3 diagrams in section
