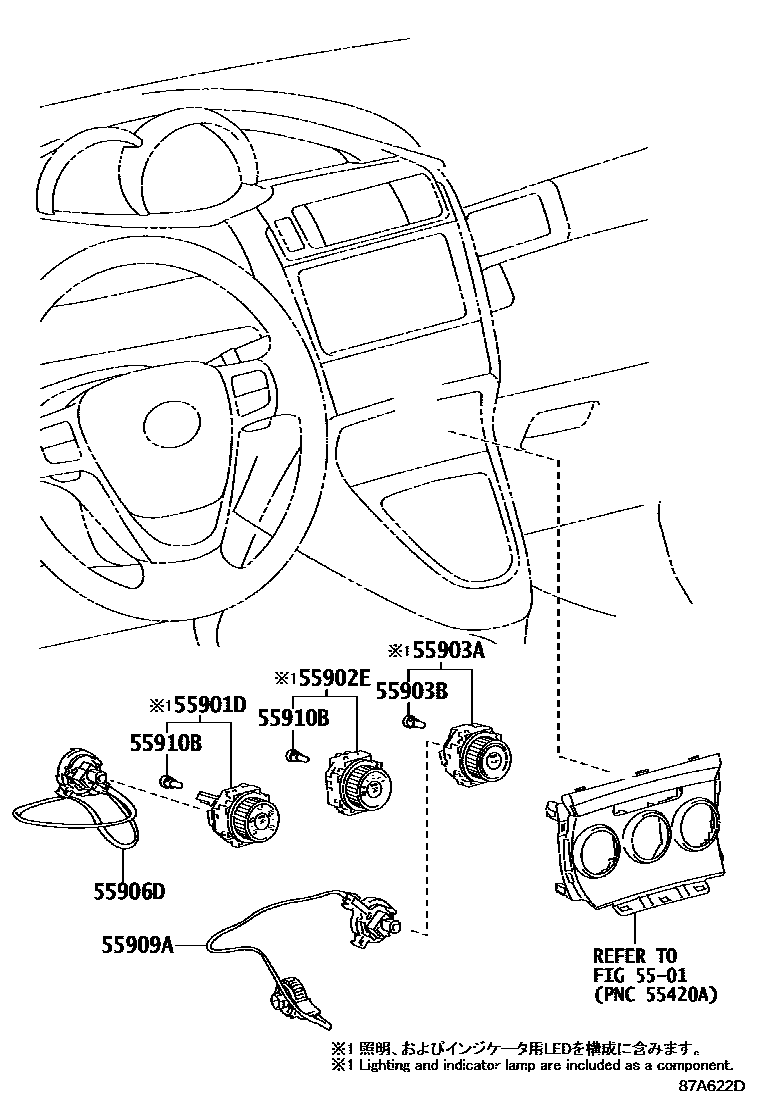

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
55901DCONTROL SUB-ASSY, HEATER, NO.1
main55901-12140iAUR2#,ZGR2#..E; ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211
AIR CONDITIONER-AUTO AIR CONDITIONER
main55901-64020iWAR20,ZGR2#..LHD..E; WAR20,ZGR2#..RHD..E; ZGR21..LHD;WAR20,ZGR20..ENTRY;WAR20,ZGR20..LHD..E201503
AIR CONDITIONER-AUTO AIR CONDITIONER; AIR CONDITIONER-WITHOUT
55902ECONTROL SUB-ASSY, HEATER, NO.2
main55902-64010iWAR20,ZGR2#..LHD..E; WAR20,ZGR2#..RHD..E; ZGR21..LHD;WAR20,ZGR20..ENTRY;WAR20,ZGR20..LHD..E201503
AIR CONDITIONER-AUTO AIR CONDITIONER; AIR CONDITIONER-WITHOUT
55903ACONTROL SUB-ASSY, HEATER, NO.3
main55903-64020iAUR2#,WAR20..LHD..E; AUR20..ENTRY; WAR20..ENTRY;AUR2#,WAR20..LHD..E; ZGR2#..LHD..E; ZGR2#..LHD..ENTRY201211-201503
AIR CONDITIONER-AUTO AIR CONDITIONER; AIR CONDITIONER-MANUAL AIR CONDITIONER; COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER; COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER
main55903-12010iAUR2#..LHD..E; AUR20..LHD..ENTRY; ZGR2#..6F..ENTRY;ZGR21..LHD..CVT..ENTRY; ZGR2#..E; ZGR2#..LHD..E201007-201211
AIR CONDITIONER-AUTO AIR CONDITIONER; AIR CONDITIONER-MANUAL AIR CONDITIONER; COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER; COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER
main55903-12020supersedes 55903-64010iAUR2#..E; AUR2#..LHD..E; AUR20..ENTRY; ZGR2#..LHD..E; ZGR2#..LHD..ENTRY201007-201211
AIR CONDITIONER-AUTO AIR CONDITIONER; AIR CONDITIONER-MANUAL AIR CONDITIONER; COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER; COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER
COLD AREA SPEC
COLD AREA SPEC
AIR CONDITIONER-WITHOUT; COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-WITHOUT
main55903-64030supersedes 55903-12010iAUR20..LHD..E;AUR21,WAR20..LHD; AUR20..LHD..ENTRY; ZGR2#..E; ZGR2#..ENTRY201211-201503
AIR CONDITIONER-WITHOUT; COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-WITHOUT
main55903-64040supersedes 55903-64030iAUR20..LHD..E;AUR21,WAR20..LHD; AUR20..LHD..ENTRY; ZGR2#..ENTRY; ZGR2#..LHD..E201211-201503
AIR CONDITIONER-AUTO AIR CONDITIONER; AIR CONDITIONER-MANUAL AIR CONDITIONER; COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER; COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER
55903BBULB, HEATER CONTROL SUB-ASSY, NO.3
AIR CONDITIONER-AUTO AIR CONDITIONER; COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER
main90010-01165iAUR2#,WAR20,ZGR2#..LHD..E; AUR2#,WAR20,ZGR2#..RHD..E; AUR21,ZGR21..LHD;AUR20,WAR20,ZGR20..ENTRY;AUR20,WAR20,ZGR20..LHD..E201211-201503
AIR CONDITIONER-AUTO AIR CONDITIONER; AIR CONDITIONER-WITHOUT; COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER
55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2
AIR CONDITIONER-AUTO AIR CONDITIONER
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
AIR CONDITIONER-AUTO AIR CONDITIONER
55910BBULB, HEATER CONTROL
AIR CONDITIONER-AUTO AIR CONDITIONER; COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER
main90010-01145iAUR2#,WAR20,ZGR2#..LHD..E; AUR2#,WAR20,ZGR2#..RHD..E; AUR21,ZGR21..LHD;AUR20,WAR20,ZGR20..ENTRY;AUR20,WAR20,ZGR20..LHD..E201211-201503
AIR CONDITIONER-AUTO AIR CONDITIONER; AIR CONDITIONER-WITHOUT
8 parts on this diagram · 6 diagrams in section
