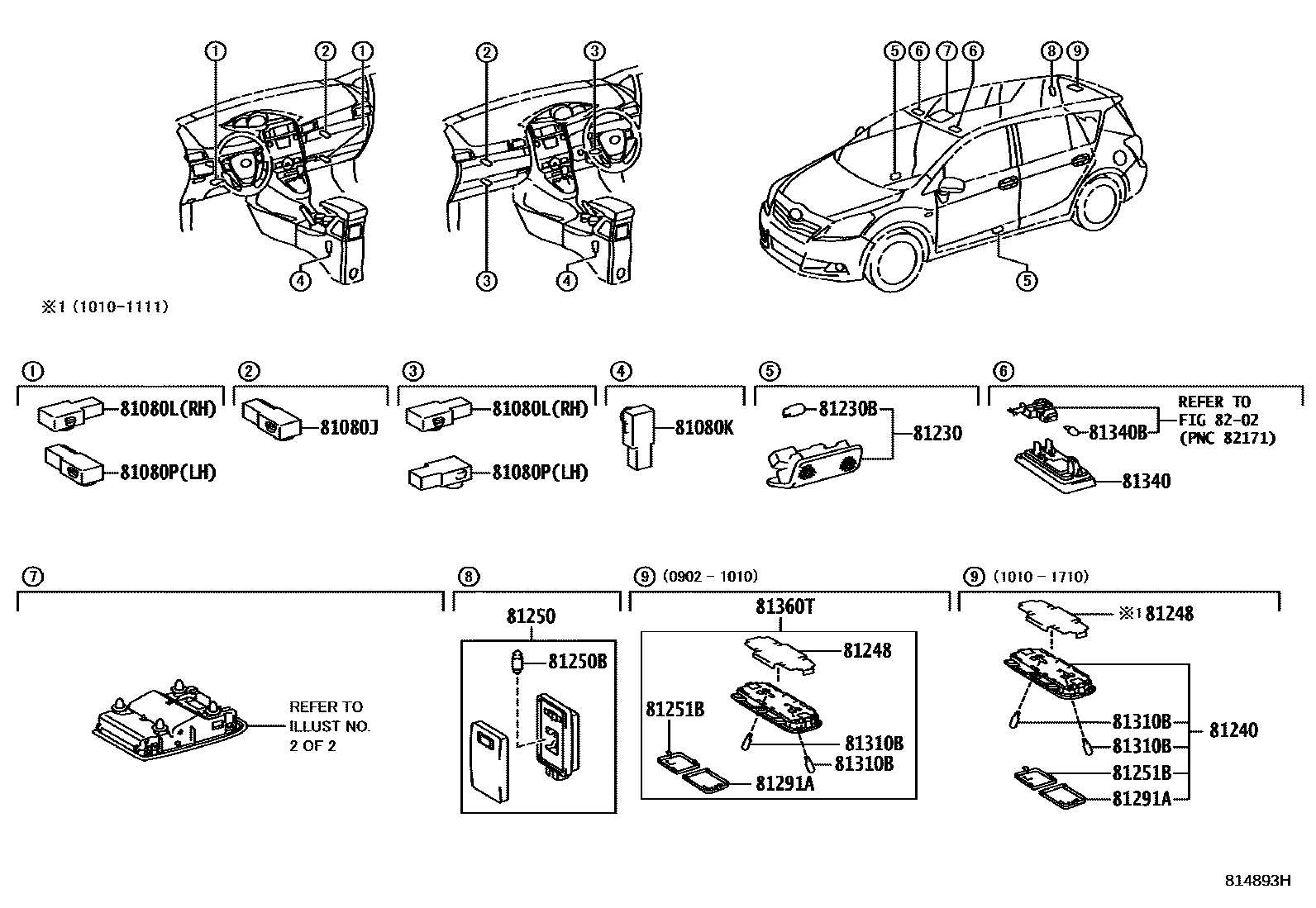

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-48010iAUR2#,ZGR2#200902-201710

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-48010iAUR2#,ZGR2#..E200902-201211

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-48010iAUR2#,ZGR2#200902-201503

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-48010iAUR2#,ZGR2#200902-201503

81230LAMP ASSY, COURTESY

main90981-12010

main81230-53020

81230BBULB(FOR COURTESY LAMP)

81240LAMP ASSY, ROOM, NO.1

main81250-05030-B0iAUR2#,ZGR2#201010-201710

LT.GRAY,TRIM1#

81248COVER, ROOM LAMP, NO.1

main81369-05010iAUR2#,ZGR2#200902-201008

sub81369-05020

main81369-05020iAUR2#,ZGR2#201008-201111

81250LAMP ASSY, ROOM, NO.2

main81250-48010iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY200902-201503

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAUR2#,ZGR2#200902-201503

12V 5W

81251BLENS, REAR ROOM LAMP, RH

main81251-05030iAUR2#,ZGR2#200902-201503

81291ALENS, REAR ROOM LAMP, LH

main81291-05030iAUR2#,ZGR2#200902-201503

81310BBULB, REAR ROOM LAMP

main90981-11062iZGR21..RHD..CVT..ENTRY200902-201503

12V 8W

81340LAMP ASSY, VANITY

main81340-30100-B0iAUR2#,WAR20,ZGR2#200902-201710

LT.GRAY,TRIM1#

81340BBULB (FOR VANITY LAMP)

main90981-11062iAUR2#,ZGR2#200902-201503

12V 8W

81360TLAMP ASSY, SPOT

main81360-05010-B0iAUR2#,ZGR2#200902-201010

LT.GRAY,TRIM1#

8202

17 parts on this diagram · 2 diagrams in section
