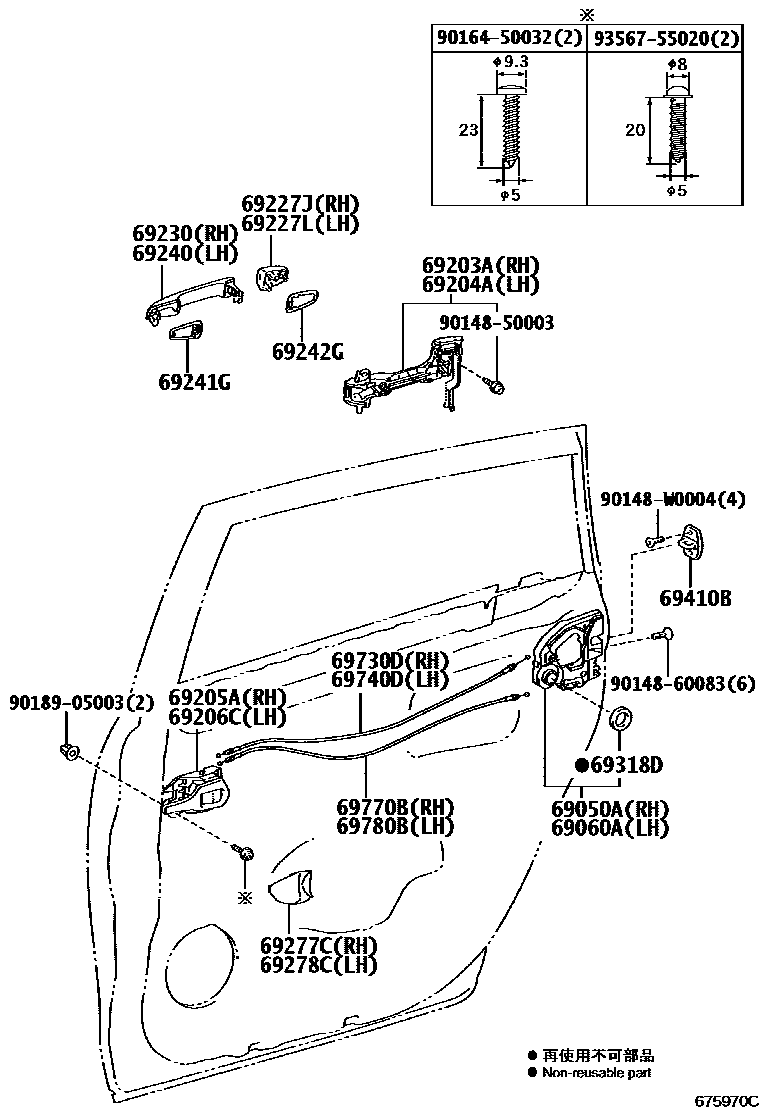

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
GRAY,TRIM1#
ORNAMENT SILVER,TRIM1#
21BK20,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
GRAY,TRIM1#
ORNAMENT SILVER,TRIM1#
21BK20,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
LESS COLOR
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
LESS COLOR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
DK.GRAY,TRIM1#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
DK.GRAY,TRIM1#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860083
main90148-60083
90148W0004
main90148-W0004
9016450032
main90164-50032
9018905003
main90189-05003
9356755020
main93567-55020
26 parts on this diagram · 1 diagram in section
