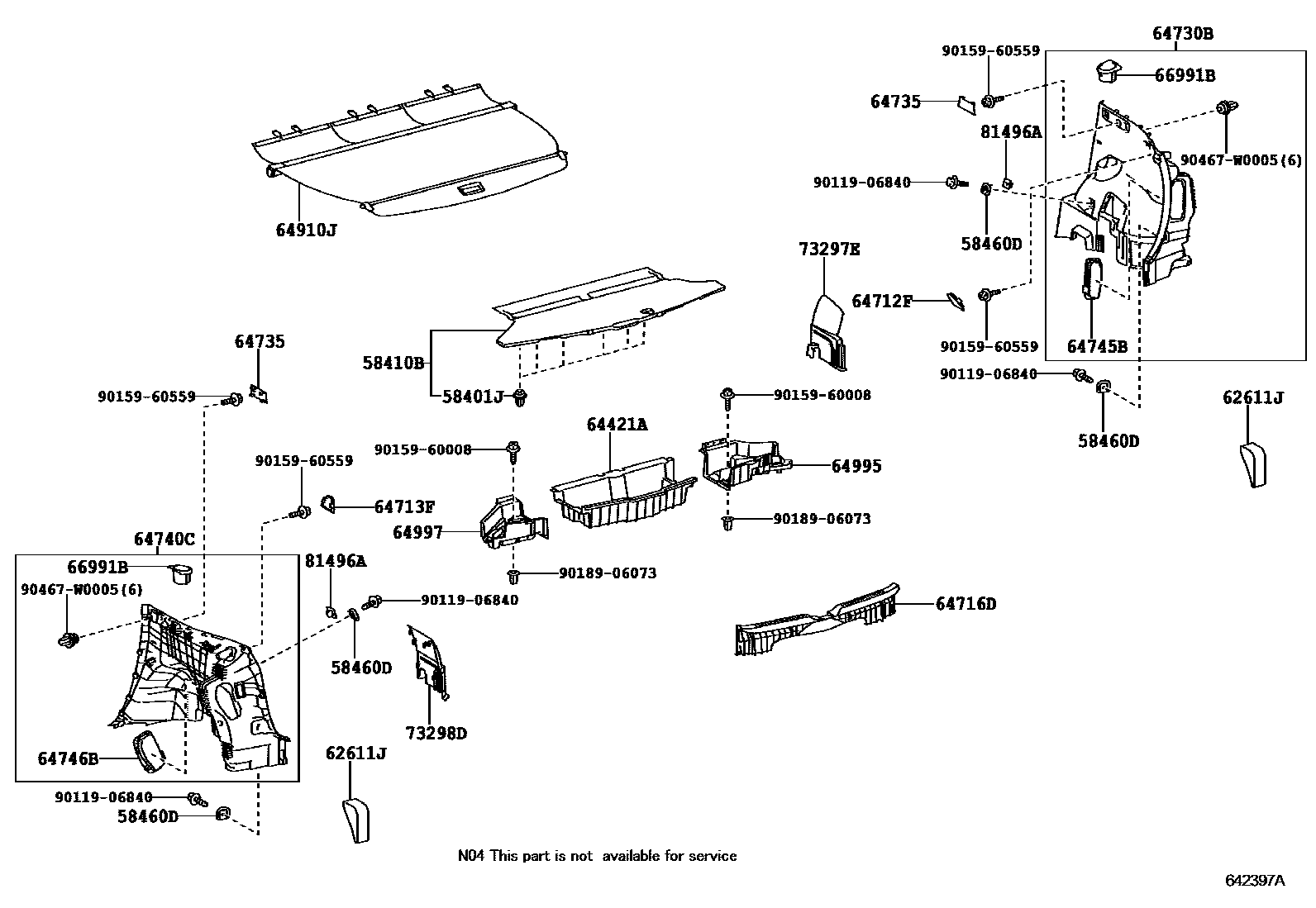

DECK BOARD & DECK TRIM COVER

0001 1 0002 1W/O(SPARE TIRE) 0003 1W/O(REAR NO.2 SEAT) 0004 1W/O(REAR NO.2 SEAT & SPARE TI

58401JCLIP(FOR DECK BOAD)

main90467-10188iAUR2#,ZGR2#..05S200902-201007

SPARE TIRE-GROUND TIRE

main90467-10188iAUR2#,ZGR2#..05S200902-201503

7SEATS PACKAGE

main90467-10188iAUR2#,ZGR2#..05S200902-201211

7SEATS PACKAGE&SPARE TIRE-WITHOUT

main90467-10188iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201503

N1 PACKAGE(2SEAT)&SPARE TIRE-GROUND TIRE

main90467-10188iAUR2#,WAR20,ZGR2#201211-201503

N1 PACKAGE(2SEAT)&LUGGAGE BOX-W/O LUGGAGEBOX&DECKBOARD

main90467-10188iAUR2#,WAR20,ZGR2#201211-201503

7SEATS PACKAGE&SPARE TIRE-WITHOUT(WITH/REPAIR KIT)

58410BBOARD ASSY, DECK

main58410-0F020-B0iAUR2#,ZGR2#..07S200902-201007

DK.GRAY,TRIM1#

main58410-0F020-B0iAUR2#,ZGR2#..07S200902-201007

SPARE TIRE-GROUND TIRE,DK.GRAY,TRIM1#

main58410-0F020-B0iAUR2#,ZGR2#..07S200902-201007

7SEATS PACKAGE,DK.GRAY,TRIM1#

main58410-0F020-B0iAUR2#,ZGR2#..07S200902-201007

7SEATS PACKAGE&SPARE TIRE-WITHOUT,DK.GRAY,TRIM1#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iAUR2#,ZGR2#200902-201503

62611JPAD, QUARTER WHEEL HOUSE

main62611-0F020iAUR2#,ZGR2#200902-201503

64421ATRAY, LUGGAGE COMPARTMENT

main64421-0F010iAUR2#,ZGR2#..07S200902-201007

SPARE TIRE-GROUND TIRE

main64421-0F010iAUR2#,ZGR2#..07S200902-201007

7SEATS PACKAGE

64712FCOVER, DECK SIDE TRIM, FRONT RH

main64712-0F030-B0iAUR2#,ZGR2#200902-201710

DK.GRAY,TRIM1#

64713FCOVER, DECK SIDE TRIM, FRONT LH

main64713-0F030-B0iAUR2#,ZGR2#200902-201710

DK.GRAY,TRIM1#

64716DCOVER, DECK TRIM, REAR

main64716-0F020-B0iAUR2#,ZGR2#200902-201710

DK.GRAY,TRIM1#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0F020-B0iAUR2#,ZGR2#200902-201710

DK.GRAY,TRIM1#

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-0F010-B0iAUR2#,ZGR2#200902-201710

DK.GRAY,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0F020-B0iAUR2#,ZGR2#200902-201710

DK.GRAY,TRIM1#

64745BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, RH

main64745-0F020iAUR2#,ZGR2#200902-201007

main64745-0F020-B0iZGR21..RHD..CVT..ENTRY201007-201710

DK.GRAY,TRIM1#

64746BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, LH

main64746-0F020iAUR2#,ZGR2#200902-201007

main64746-0F020-B0iZGR21..RHD..CVT..ENTRY201007-201710

DK.GRAY,TRIM1#

64910JCOVER ASSY, TONNEAU

main64910-0F020-B1iAUR2#,ZGR2#200902-201006

DK.GRAY,TRIM1#

sub64910-0F021

main64910-0F020-B1iAUR2#,ZGR2#200902-201006

PKG.TRAY TRIM&TONEAU CVR.-WITHOUT,DK.GRAY,TRIM1#

sub64910-0F021

main64910-0F021-B1iAUR2#,ZGR2#201007-201101

DK.GRAY,TRIM1#

sub64910-0F040

main64910-0F021-B1iAUR2#,ZGR2#201007-201101

PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT,DK.GRAY,TRIM1#

sub64910-0F040

main64910-0F040-B0iZGR21..RHD..CVT..ENTRY201102-201211

DK.GRAY,TRIM1#

main64910-0F040-B0iZGR21..RHD..CVT..ENTRY201102-201211

PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT,DK.GRAY,TRIM1#

main64910-0F050-B0iAUR2#,WAR20,ZGR2#201211-201504

DK.GRAY,TRIM1#

sub64910-0F051

main64910-0F050-B0iAUR2#,WAR20,ZGR2#201211-201503

PKG.TRAY TRIM&TONEAU CVR.-WITHOUT,DK.GRAY,TRIM1#

sub64910-0F051

main64910-0F050-B0iWAR20,ZGR2#201503-201504

PKG.TRAY TRIM&TONNEAU CVR-WITHOUT,DK.GRAY,TRIM1#

sub64910-0F051

main64910-0F051-B0iWAR20,ZGR2#201504-201710

DK.GRAY,TRIM1#

main64910-0F051-B0iWAR20,ZGR2#201504-201710

PKG.TRAY TRIM&TONNEAU CVR-WITHOUT,DK.GRAY,TRIM1#

64995BOX, DECK FLOOR, RH

main64995-0F010iAUR2#,ZGR2#..07S200902-201007

SPARE TIRE-GROUND TIRE

main64995-0F010iAUR2#,ZGR2#..07S200902-201007

7SEATS PACKAGE

main64995-0F010iAUR2#,ZGR2#..07S200902-201007

7SEATS PACKAGE&SPARE TIRE-WITHOUT

main64995-0F020iAUR2#,ZGR2#..05S200902-201111

main64995-0F020iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201503

N1 PACKAGE(2SEAT)&SPARE TIRE-GROUND TIRE

main64995-0F020iAUR2#,WAR20,ZGR2#201211-201503

N1 PACKAGE(2SEAT)&LUGGAGE BOX-W/O LUGGAGEBOX&DECKBOARD

64997BOX, DECK FLOOR, LH

main64997-0F010iAUR2#,ZGR2#..07S200902-201007

SPARE TIRE-GROUND TIRE

main64997-0F010iAUR2#,ZGR2#..07S200902-201007

7SEATS PACKAGE

main64997-0F010iAUR2#,ZGR2#..07S200902-201007

7SEATS PACKAGE&SPARE TIRE-WITHOUT

main64997-0F020iAUR2#,ZGR2#..05S200902-201111

main64997-0F020iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201503

N1 PACKAGE(2SEAT)&SPARE TIRE-GROUND TIRE

main64997-0F020iAUR2#,WAR20,ZGR2#201211-201503

N1 PACKAGE(2SEAT)&LUGGAGE BOX-W/O LUGGAGEBOX&DECKBOARD

66991BHOLDER, CUP, NO.1

main66991-0F020-B0iAUR2#,ZGR2#200902-201710

DK.GRAY,TRIM1#

73297ECOVER, DECK TRIM SIDE BELT HOLE, RH

main73297-0F030-B0iAUR2#,ZGR2#..07S200902-201007

DK.GRAY,TRIM1#

main73297-0F030-B0iAUR2#,ZGR2#..07S200902-201007

7SEATS PACKAGE,DK.GRAY,TRIM1#

main73297-0F040-B0iAUR2#,ZGR2#..05S200902-201710

DK.GRAY,TRIM1#

73298DCOVER,DECK TRIM SIDE BELT HOLE, LH

main73298-0F030-B0iAUR2#,ZGR2#..07S200902-201007

DK.GRAY,TRIM1#

main73298-0F030-B0iAUR2#,ZGR2#..07S200902-201007

7SEATS PACKAGE,DK.GRAY,TRIM1#

main73298-0F040-B0iAUR2#,ZGR2#..05S200902-201710

DK.GRAY,TRIM1#

81496AGUIDE, REAR COMBINATION LAMP

main81496-12030iAUR2#,ZGR2#200902-201503

9011906840

main90119-06840

9015960008

main90159-60008

9015960559

main90159-60559

9018906073

main90189-06073

90467W0005

main90467-W0005

25 parts on this diagram · 4 diagrams in section
