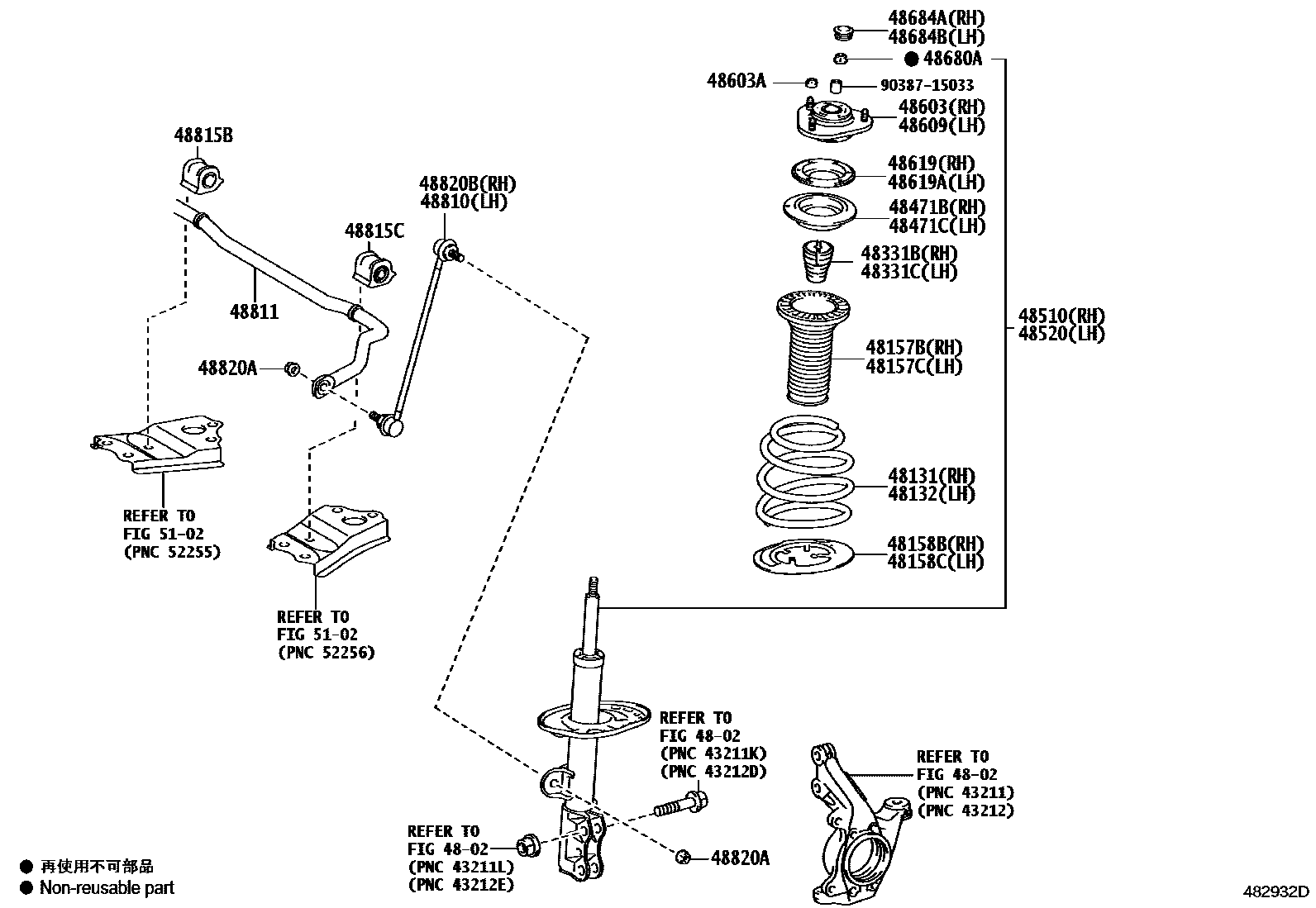

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0F050iZGR2#200902-201503

main48131-0F050iZGR2#200903-201007

(L)

main48131-0F070iAUR2#200902-200909

sub48131-0F120

main48131-0F120iAUR2#200910-201503

main48131-0F160iWAR20201401-201706

sub48131-0F161

main48131-0F161iWAR20201707

main48131-64010iZGR2#200903-200906

(J)

sub48131-0F050

48132SPRING, FRONT COIL, LH

main48131-0F050iZGR21..RHD..CVT..ENTRY200902-201503

main48131-0F050iZGR2#200903-201007

(L)

main48131-0F070iAUR2#200902-200909

sub48131-0F120

main48131-0F120iAUR2#200910-201503

main48131-0F160iWAR20201401-201706

sub48131-0F161

main48131-0F161iWAR20201707

main48131-64010iZGR2#200903-200906

(J)

sub48131-0F050

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-05020iZGR21..RHD..CVT..ENTRY200902-201503

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-05020iAUR2#,ZGR2#200902-201503

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-05020iAUR2#,WAR20,ZGR2#200902-201503

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-05020iZGR21..RHD..CVT..ENTRY200902-201503

48331BBUMPER, FRONT SPRING, RH

main48331-05060iAUR2#,ZGR2#200902-201503

48331CBUMPER, FRONT SPRING, LH

main48331-05060iAUR2#,ZGR2#200902-201503

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-05020iWAR20,ZGR2#200902-201503

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-05020iZGR21..RHD..CVT..ENTRY200902-201503

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09X00iZGR2#200902-200912

MARK 48510-0F040

sub48510-8Z015

main48510-09X10iAUR2#200902-200912

MARK 48510-0F050

sub48510-8Z016

main48510-8Z015iZGR2#200912-201109

MARK 48510-0F041

sub48510-8Z056

main48510-8Z016iAUR2#200912-201109

MARK 48510-0F051

sub48510-8Z057

main48510-8Z056iZGR21..RHD..CVT..ENTRY201109-201211

MARK 48510-0F042

main48510-8Z057iAUR2#201109-201211

MARK 48510-0F052

main48510-8Z070iZGR2#201211-201503

MARK 48510-0F060

main48510-8Z071iWAR20201211-201503

MARK 48510-0F070

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09Q00iZGR2#200902-200912

MARK 48520-0F040

sub48520-09U20

main48520-09Q10iAUR2#200902-200912

MARK 48520-0F050

sub48520-09U30

main48520-09U20iZGR2#200912-201109

MARK 48520-0F041

sub48520-09U21

main48520-09U21iZGR21..RHD..CVT..ENTRY201109-201211

MARK 48520-0F042

main48520-09U30iAUR2#200912-201109

MARK 48520-0F051

sub48520-09U31

main48520-09U31iAUR2#201109-201211

MARK 48520-0F052

main48520-09Y70iZGR2#201211-201503

MARK 48520-0F060

main48520-09Y80iAUR2#,WAR20201211-201503

MARK 48520-0F070

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0F020iAUR2#,ZGR2#200902-201012

sub48609-0F021

main48609-0F021iZGR21..RHD..CVT..ENTRY201101-201503

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY200902-201503

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0F020iAUR2#,ZGR2#200902-201012

sub48609-0F021

main48609-0F021iZGR21..RHD..CVT..ENTRY201101-201503

48619BEARING, STRUT MOUNTING, RH

main48619-28010iAUR2#,ZGR2#200902-201503

48619ABEARING, STRUT MOUNTING, LH

main48619-28010iAUR2#,ZGR2#200902-201503

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY200902-201503

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-05030iAUR2#,ZGR2#200902-201503

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-05030iAUR2#,ZGR2#200902-201503

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02070iAUR2#,ZGR2#200902-201503

48811BAR, STABILIZER, FRONT

main48811-0F030iAUR2#,ZGR2#200902-201503

48815BBUSH, FRONT STABILIZER LOWER BRACKET, RH

main48815-0F030iAUR2#,ZGR2#200902-201503

48815CBUSH, FRONT STABILIZER LOWER BRACKET, LH

main48815-0F040iAUR2#,ZGR2#200902-201503

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iAUR2#,ZGR2#200902-201503

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02070iAUR2#,ZGR2#200902-201503

5102

9038715033

main90387-15033

29 parts on this diagram · 1 diagram in section
