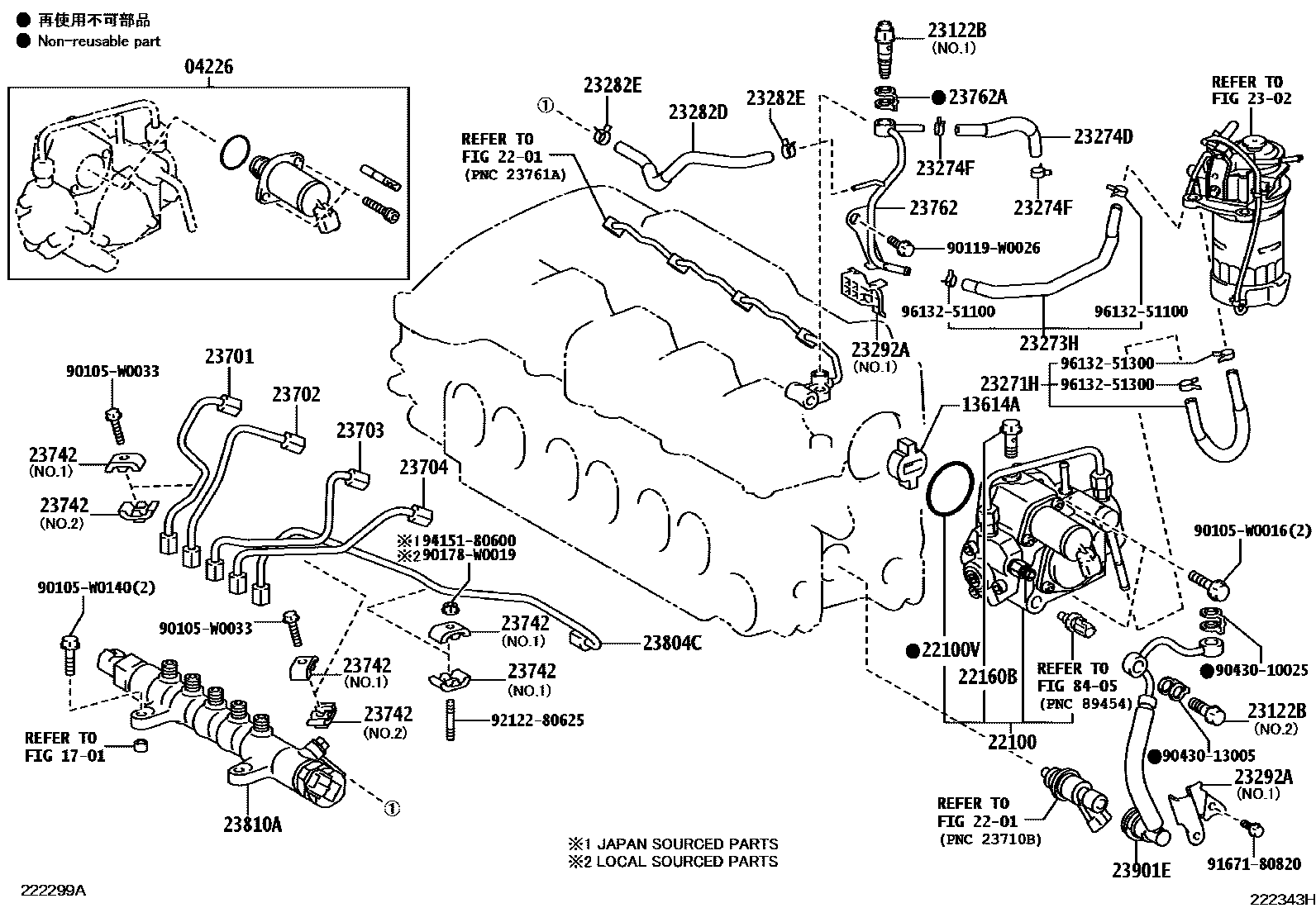

INJECTION PUMP ASSEMBLY

0001 1W(DPF) 0002 1W/O(DPF) 0003 1 0004 1

04226VALVE KIT, SUCTION CONTROL

main04226-26010i1ADFTV,2ADFHV..AUR2#200902-201211

13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1

main13614-26010i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F200902-201211

1701

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0R040i1ADFTV,2ADFHV..AUR2#200902-201211

sub22100-0R041

main22100-WA011i1WW..WAR20201401-201503

main22100-WA020i1WW..WAR20201503-201510

sub22100-WA030

main22100-WA030i1WW..WAR20201510

22100VRING, O(FOR INJECTION PUMP)

main22193-0R020i1ADFTV,2ADFHV..AUR2#200902-201211

main90069-38033i1WW..WAR20201401-201503

22160BSCREW

main22569-0R020i1ADFTV,2ADFHV..AUR2#200902-201211

23122BVALVE, CHECK

main23769-26030i1ADFTV,2ADFHV..AUR2#200902-201503

NO.1

main2376A-26010i1ADFTV,2ADFHV..AUR2#200902-201012

NO.2

sub2376A-26020

main2376A-26020i1ADFTV,2ADFHV..AUR2#201012-201110

NO.2

sub2376A-26030

main2376A-26030i1ADFTV,2ADFHV..AUR2#201110-201503

NO.2

23271HHOSE, FUEL, NO.1

main23271-0R020i2ADFHV..AUR21..6FC200905-201211

main23271-0R030i1ADFTV,2ADFHV..AUR2#..6F200902-201211

23273HHOSE, FUEL, NO.2

main23273-0R010i1ADFTV,2ADFHV..AUR2#200902-201211

main23273-26080i1WW..WAR20201401-201503

sub23273-53020

main23273-53020i1WW..WAR20201503

23274DHOSE, FUEL, NO.3

main23274-26080i1ADFTV,2ADFHV..AUR2#200902-201211

23274FCLIP(FOR FUEL HOSE NO.3)

main96135-51100i1ADFTV,2ADFHV..AUR2#200902-201211

23282DHOSE, FUEL, NO.4

main23282-26070i1ADFTV,2ADFHV..AUR2#200902-201211

23282ECLIP(FOR FUEL HOSE NO.4)

main90467-11076i1ADFTV,2ADFHV..AUR2#200902-201211

23292APROTECTOR, FUEL HOSE

main23292-0R010i1ADFTV,2ADFHV..AUR2#200902-201211

NO.1

main23292-26030i1ADFTV,2ADFHV..AUR2#200902-201211

NO.2

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-0R030i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F200902-201211

main23701-WA010i1WW..WAR20201401-201503

main23701-WA020i1WW..WAR20201503

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-0R030i1ADFTV,2ADFHV..AUR2#200902-201211

main23702-WA010i1WW..WAR20201401-201503

main23702-WA020i1WW..WAR20201503

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-0R030i1ADFTV,2ADFHV..AUR2#200902-201211

main23804-WA010i1WW..WAR20201401-201503

main23804-WA020i1WW..WAR20201503

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-0R030i1ADFTV,2ADFHV..AUR2#200902-201211

23742CLAMP, INJECTION PIPE, NO.2

main23742-27010i1ADFTV,2ADFHV..AUR2#200902-201211

NO.1

main23742-58020i1ADFTV,2ADFHV..AUR2#200902-201211

NO.2

23762PIPE, NOZZLE LEAKAGE, NO.2

main23762-26021i1ADFTV,2ADFHV..AUR2#200902-201211

23762AGASKET, NOZZLE LEAKAGE PIPE NO.2

main90904-30012i1ADFTV,2ADFHV..AUR2#200902-201211

23804CPIPE SUB-ASSY, FUEL INLET

main23804-0R020i1ADFTV,2ADFHV..AUR2#200902-201211

23810ARAIL ASSY, COMMON

main23810-0R040i1ADFTV,2ADFHV..AUR2#200902-201204

sub23810-0R041

main23810-0R041i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F201204-201211

main23810-WA010i1WW..WAR20201401-201503

main23810-WA020i1WW..WAR20201503

23901ETUBE SUB-ASSY, FUEL

main23901-26040i1ADFTV,2ADFHV..AUR2#200902-201211

8405

90105W0016

main90105-W0016

90105W0033

main90105-W0033

90105W0140

main90105-W0140

90119W0026

main90119-W0026

90178W0019

main90178-W0019

9043010025

main90430-10025

9043013005

main90430-13005

9167180820

main91671-80820

9212280625

main92122-80625

9415180600

main94151-80600

9613251100

main96132-51100

9613251300

main96132-51300

38 parts on this diagram · 4 diagrams in section
