Toyota VERSO — VACUUM PUMP

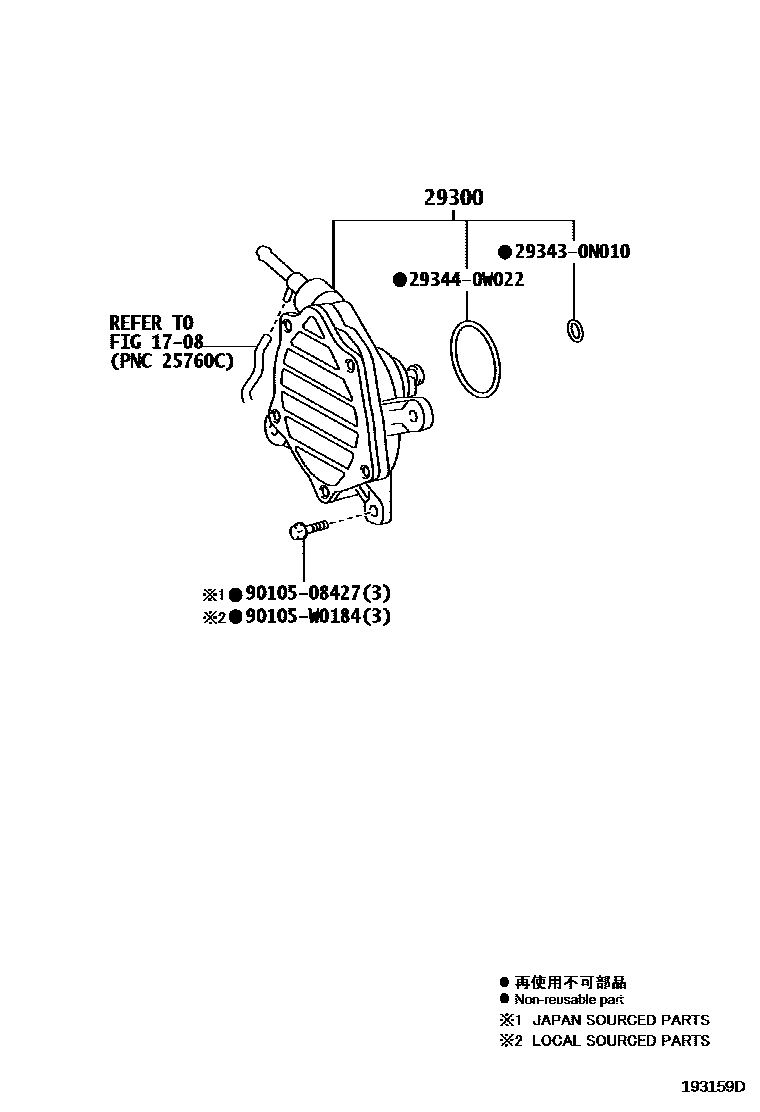

Parts diagram
1708VACUUM PIPING
→ Go to FIG 17-08
29300PUMP ASSY, VACUUM
29300-0T020
29300-0W022
29300-0W030
29300-0W090
293430N010RING, O VACUUM PUMP, NO.1
29343-0N010
293440W022RING, O VACUUM PUMP, NO.2
29344-0W022
9010508427
90105-08427
90105W0184
90105-W0184

6 parts on this diagram · 2 diagrams in section

VACUUM PUMP for Toyota VERSO

This section contains 12 genuine Toyota parts for the VACUUM PUMP system of the Toyota VERSO. Key components include: VACUUM PIPING, PUMP ASSY, VACUUM, RING, O VACUUM PUMP, NO.1, RING, O VACUUM PUMP, NO.2.
