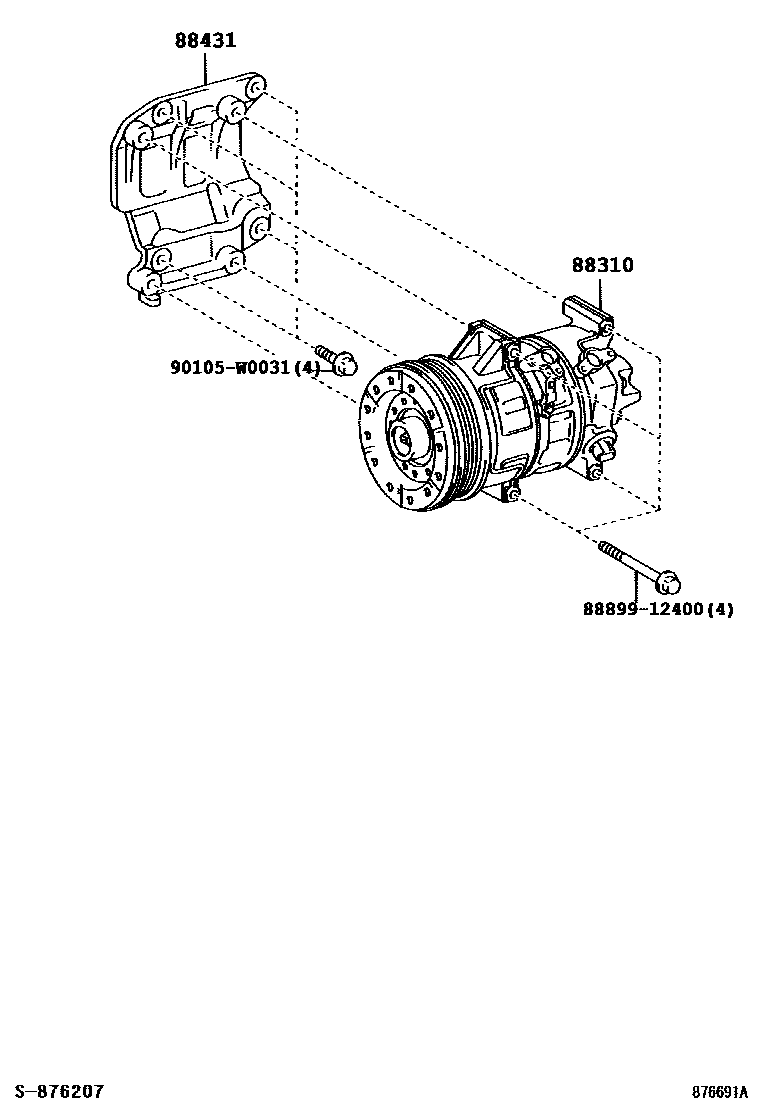

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-0F010iZNR1#..SOL; ZNR1#..TERRA200705-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88310-0F020iCUR10..SOL; CUR10..TERRA200402-200503

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88310-0F021iCUR10..SOL; CUR10..TERRA200504-200508

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88310-0F030iAUR10..SOL; AUR10..TERRA200508-200705

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-05010iCUR10..SOL; CUR10..TERRA200402-200508

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88433-20040iAUR10200508-200705

8889912400COVER, EVAPORATOR

main88899-12400

90105W0031

main90105-W0031

4 parts on this diagram · 3 diagrams in section
