HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL-MANUAL A/C 0002 1CONTROL PANEL-AUTO A/C 0003 1CONTROL PANEL-AUTO A/C 0004 1AIR DUCT 0005 1AIR DUCT 0006 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

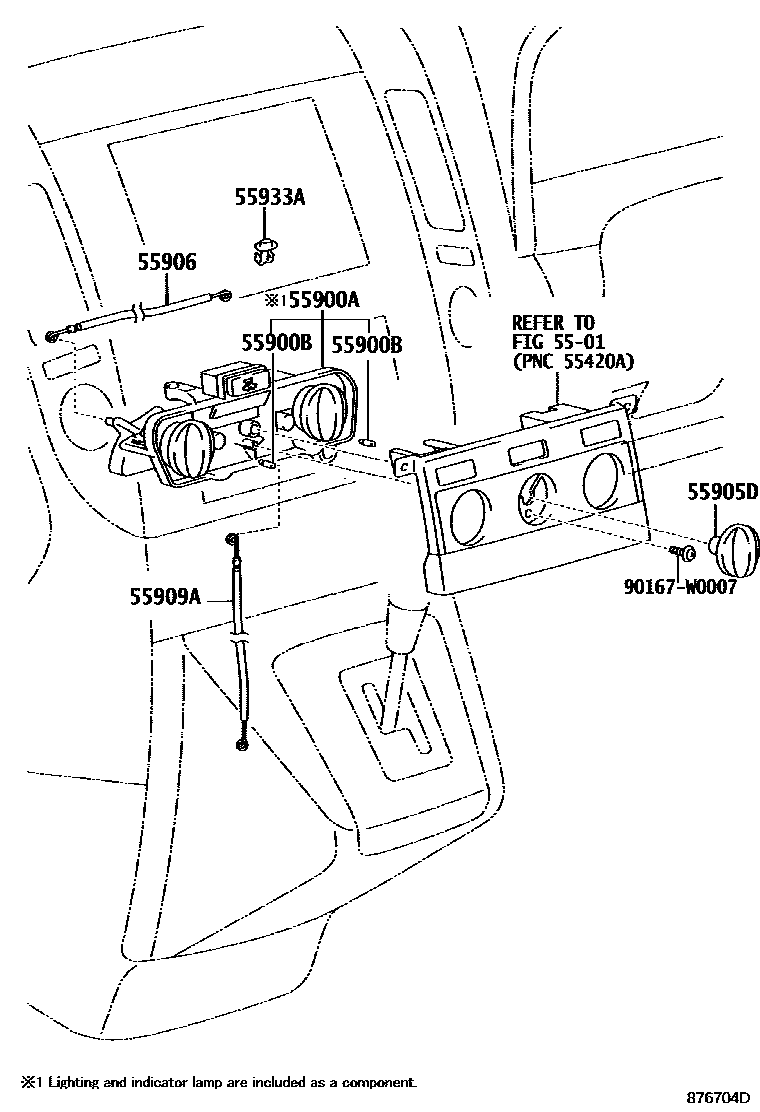

55900CONTROL ASSY, AIR CONDITIONER

main55900-0F040iAUR10..LHD..DCRL; AUR10..LHD..SOL..(DCR,DCRE)200705

COLD AREA SPEC

main55900-0F050iAUR10,ZNR1#..LHD..SOL..(DCR,DCRE,HTWC)200705

main55900-0F060iAUR10,ZNR1#..RHD..SOL..(DCR,HTWC)200705

main55900-0F070iAUR10..RHD..DCRL200705

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-0F010iCUR10,ZNR1#..TERRA200402-200409

main55900-0F011iCUR10..TERRA200410-200508

55900BBULB, AIR CONDITIONER CONTROL

main90981-WB011×2iCUR10..TERRA200410-200508

55905DKNOB SUB-ASSY, CONTROL

main55905-0F030iAUR10,ZNR1#..TERRA200402-200705

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-0F010iAUR10,ZNR1#..LHD..TERRA200705

main55906-0F020iCUR10..RHD..TERRA200402-200508

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0F010iCUR10..LHD..TERRA200402-200508

main55909-0F020iCUR10..RHD..TERRA200402-200508

55933ACLAMP, HEATER CONTROL CABLE

main55933-0D010iAUR10,ZNR1#..TERRA200402-200705

90167W0007

main90167-W0007

9 parts on this diagram · 6 diagrams in section
