87050RADIATOR ASSY, AIR CONDITIONER

main87050-0F020i200402-200705

main87050-0F050i200402-200705

main87050-0F130i200705-200902

main87050-0F140i200705-200902

main87050-0F010i200508-200705

LUNA PACKAGE

main87050-0F040supersedes 87050-0F060i200402-200705

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main87050-0F070i200508-200705

LUNA PACKAGE&COLD SPEC; SPORTS MID PACKAGE&COLD SPEC

main87050-0F080i200402-200705

COLD SPEC

main87050-0F090i200508-200705

LUNA PACKAGE

main87050-0F100i200508-200705

LUNA PACKAGE

main87050-0F150i200705-200902

COLD AREA SPEC

main87050-0F160supersedes 87050-0F260i200602-200705

SPORTS MID PACKAGE

main87050-0F180supersedes 87050-0F280i200602-200705

SPORTS MID PACKAGE

main87050-0F200supersedes 87050-0F030i200705-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main87050-0F210i200705-200803

AIR CONDITIONER-MANUAL(MAKER OPTION)

main87050-0F220supersedes 87050-0F060i200705-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main87050-0F230i200705-200803

AIR CONDITIONER-MANUAL(MAKER OPTION)

main87050-0F240i200705-200803

COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02070i200402-200705

main87103-02080i200705

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-02070i200705

main87106-02100i200402-200705

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02120i200602-200705

main87107-05090i200705-200902

main87107-0F020i200402-200705

main87107-0F040i200705-200902

main87107-0F030i200402-200602

COLD SPEC

87130DBLOWER ASSY

main87130-0F010i200402-200510

main87130-0F011i200810

main87130-0F020i200402-200510

main87130-0F021i200511-200705

main87130-0F022i200810

main87130-0F030i200402-200705

main87130-0F031i200810

main87130-0F040i200402-200510

main87130-0F041i200705-200809

main87130-0F042i200810

main87130-0F050i200511-200705

LUNA PACKAGE; SPORTS MID PACKAGE

main87130-0F051i200810

main87130-0F060i200511-200705

LUNA PACKAGE; LUNA PACKAGE&COLD SPEC; SPORTS MID PACKAGE; SPORTS MID PACKAGE&COLD SPEC

main87130-0F061i200810

87138CRESISTOR, BLOWER

main87138-02040i200402-200705

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87174GGUIDE, AIR HEATER

main87174-05010i200705

main87174-0F010i200402-200508

87190DSWITCH ASSY, TEMPERATURE CONTROL

main87190-0F010i200402-200705

main87190-0F020i200402-200705

87237BCOVER, HEATER PIPING

main87237-05050i200705

main87237-0F020i200402-200705

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-05070i200402-200705

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88501-05080i200705-200809

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88501-0F021i200810

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88501-0F031i200810

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88501-0F040i200511-200705

COLD SPEC; COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION); LUNA PACKAGE&COLD SPEC; SPORTS MID PACKAGE&COLD SPEC

main88501-0F041i200810

COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION)

88515VALVE, COOLER EXPANSION

main88515-21040i200402-200508

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-02070i200402-200705

88548BCASE, AIR FILTER

main88548-02040i200402-200705

88568BFILTER, AIR

main88568-02030i200402-200705

88578BPACKING, COOLING UNIT, NO.1

main88578-12520i200402-200705

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

88625THERMISTOR, COOLER, NO.1

main88620-05020i200705

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88620-0F020i200705

AIR CONDITIONER-MANUAL(MAKER OPTION); COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION)

main88625-02060i200402-200705

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88625-52070i200402-200705

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION); COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

88648WIRING, COOLER, NO.1

main88648-0F110i200402-200705

main88648-0F120i200402-200705

main88648-0F130×2i200402-200705

NO.1

main88648-0F140i200402-200705

NO.2

main88648-0F160i200705

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-0F030i200402-200705

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION); AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88650-0F040i200402-200705

COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88650-0F070i200705-200803

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88650-0F080i200705

COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION)

88710ATUBE ASSY, AIR CONDITIONER

main88710-05360i200402-200705

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88710-05380i200705-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88710-05350i200508-200705

LUNA PACKAGE&COLD SPEC; SPORTS MID PACKAGE&COLD SPEC

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8856905010CLAMP (FOR COOLER RELAY)

main88569-05010

8889902120COVER, EVAPORATOR

main88899-02120

8889902140COVER, EVAPORATOR

main88899-02140

8889905040COVER, EVAPORATOR

main88899-05040

8889905050COVER, EVAPORATOR

main88899-05050

8889905060COVER, EVAPORATOR

main88899-05060

8889905100COVER, EVAPORATOR

main88899-05100

888990F280COVER, EVAPORATOR

main88899-0F280

8889935060COVER, EVAPORATOR

main88899-35060

9008011523

main90080-11523

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906833

main90119-06833

90119W0017

main90119-W0017

9015960213

main90159-60213

9015960383

main90159-60383

90163W0002

main90163-W0002

9017906314

main90179-06314

9048001405

main90480-01405

9048001434

main90480-01434

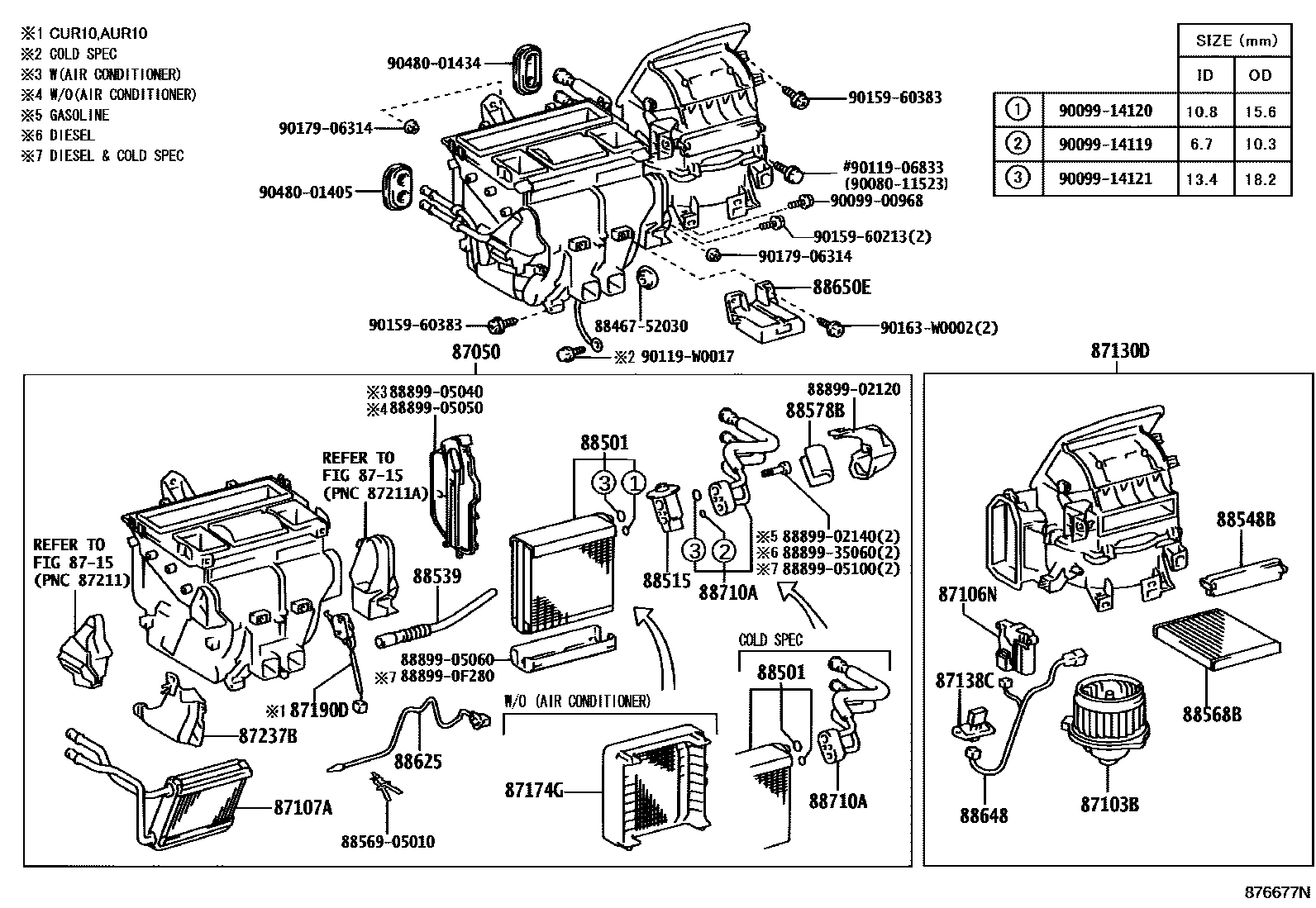

HEATING & AIR CONDITIONING - COOLER UNIT
