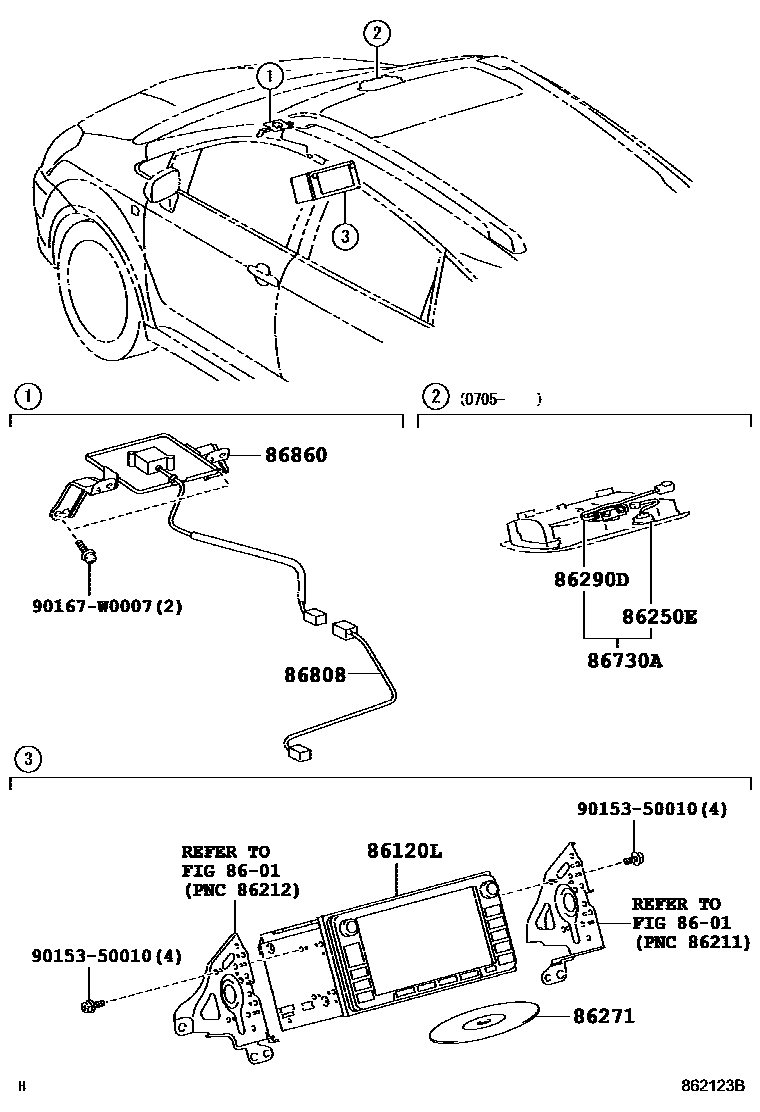

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86120-64010i200402-200705

ALPINE,ID=B9002,AUDIO-NAVIGATION

main86120-64020i200705-200803

AISHIN AW,AUDIO-NAVIGATION BLUETOOTH

86250EMICROPHONE ASSY, AMPLIFIER

main86250-64010i200705-200803

AUDIO-NAVIGATION BLUETOOTH

86271DISC, DISC PLAYER

main86271-53030i200507-200606

AUDIO-NAVIGATION

main86271-53031i200705-200709

AUDIO-NAVIGATION BLUETOOTH

main86271-64011i200402-200406

AUDIO-NAVIGATION

main86271-64012i200407-200507

AUDIO-NAVIGATION

86290DAMPLIFIER ASSY, MICROPHONE

main86290-64010i200803

AUDIO-AM/FM/CD; AUDIO-AM/FM/CD CHANGER

86730AMICROPHONE ASSY, TELEPHONE

main86730-64010i200803-200902

AUDIO-AM/FM/CD; AUDIO-AM/FM/CD CHANGER

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-0F010i200705-200803

AUDIO-NAVIGATION BLUETOOTH

86860ANTENNA ASSY, NAVIGATION

main86860-64010i200402-200705

AUDIO-AM/FM/CD CHANGER&EMV & NAVIGATION SYSTEM-W/NAVI(GPS ANTENNA); AUDIO-AM/FM/CD&EMV & NAVIGATION SYSTEM-W/NAVI(GPS ANTENNA); AUDIO-NAVIGATION; EMV & NAVIGATION SYSTEM-W/NAVI(GPS ANTENNA)

9015350010

main90153-50010

90167W0007

main90167-W0007

10 parts on this diagram · 1 diagram in section
