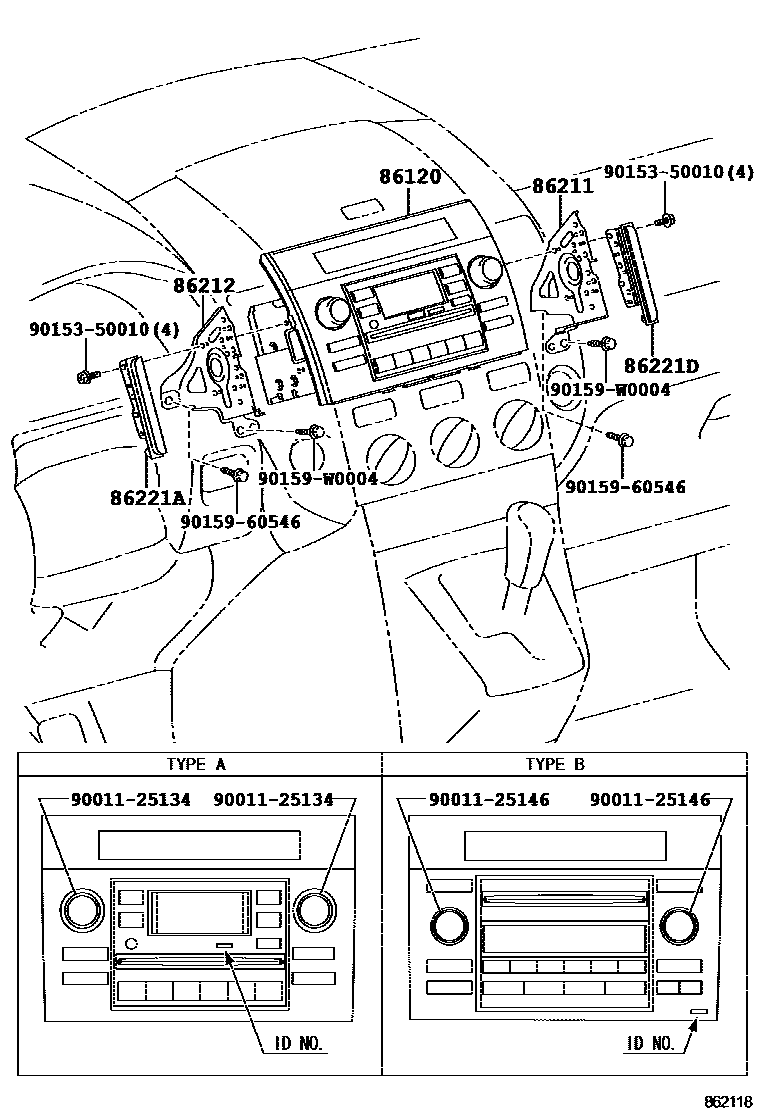

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
main86120-0F010iAUR10,ZNR10..05S..TERRA; ZNR11;AUR10..SOL;ZNR10..07S;ZNR10..05S..SOL;AUR10..07S..TERRA200402-200705
MATSUSHITA,ID=W58810; MATSUSHITA,ID=W58810,AUDIO-AM/FM/CD; MATSUSHITA,ID=W58810,AUDIO-RADIO LESS
MATSUSHITA,ID=W58811,AUDIO-AM/FM/CD CHANGER
PANASONIC,ID=W53824; PANASONIC,ID=W53824,AUDIO-NAVIGATION BLUETOOTH; PANASONIC,ID=W53824,AUDIO-RADIO LESS
PANASONIC,ID=W53825,AUDIO-AM/FM/CD CHANGER
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86221APANEL, RADIO RECEIVER
main86221-52050iAUR10,ZNR10..05S..TERRA; ZNR11;AUR10..SOL;ZNR10..07S;ZNR10..05S..SOL;AUR10..07S..TERRA200402-200705
AUDIO-RADIO LESS
86221DPANEL, RADIO RECEIVER
main86221-52060iAUR10,ZNR10..05S..TERRA; ZNR11;AUR10..SOL;ZNR10..07S;ZNR10..05S..SOL;AUR10..07S..TERRA200402-200705
AUDIO-RADIO LESS
9001125134
main90011-25134
9001125146
main90011-25146
9015350010
main90153-50010
9015960546
main90159-60546
90159W0004
main90159-W0004
10 parts on this diagram · 2 diagrams in section
