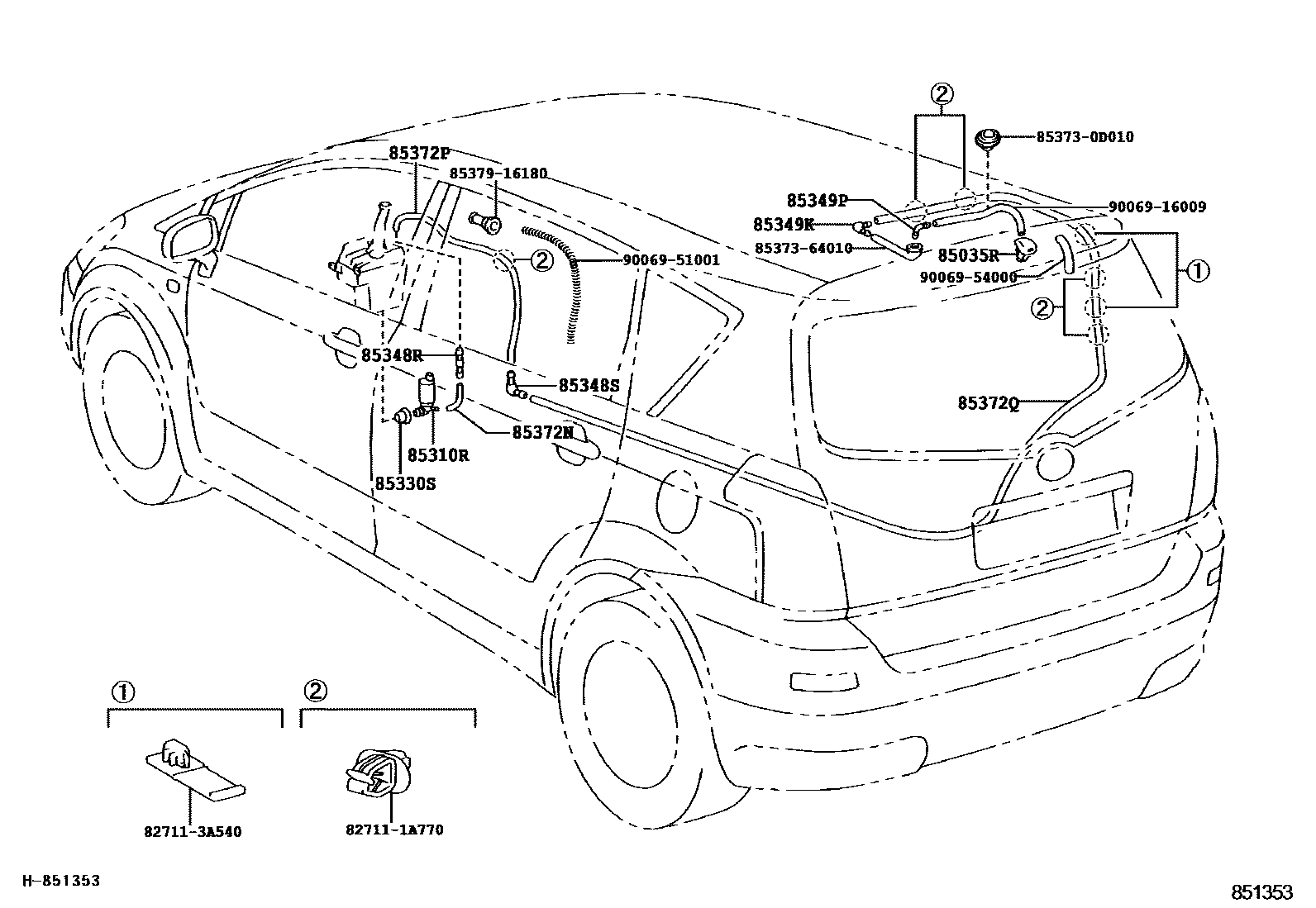

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-0F010iCUR10,ZNR1#200402-200504

main85391-0F011iCUR10200505-200508

85310RMOTOR ASSY, REAR WASHER

main85340-05010iCUR10,ZNR1#200402-200507

main85340-05011iAUR10,ZNR1#200508-200705

85330SBUSH, REAR WASHER JAR

main90069-20005iAUR10,CUR10,ZNR1#200402-200705

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-05050iCUR10200402-200508

85348SJOINT, REAR WASHER ELBOW, NO.1

main85395-05020iCUR10200402-200508

85349KJOINT, REAR WASHER ELBOW, NO.2

main85395-05020iCUR10200402-200508

85349PJOINT, REAR WASHER ELBOW, NO.3

main85395-0D010iCUR10200402-200508

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90069-16009iCUR10200402-200508

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90069-46011iCUR10200402-200508

L=1490

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90069-46012iCUR10200402-200508

L=3910

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

853730D010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-0D010

8537364010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-64010

8537916180JOINT

main85379-16180

9006916009

main90069-16009

9006951001

main90069-51001

9006954000

main90069-54000

18 parts on this diagram · 1 diagram in section
