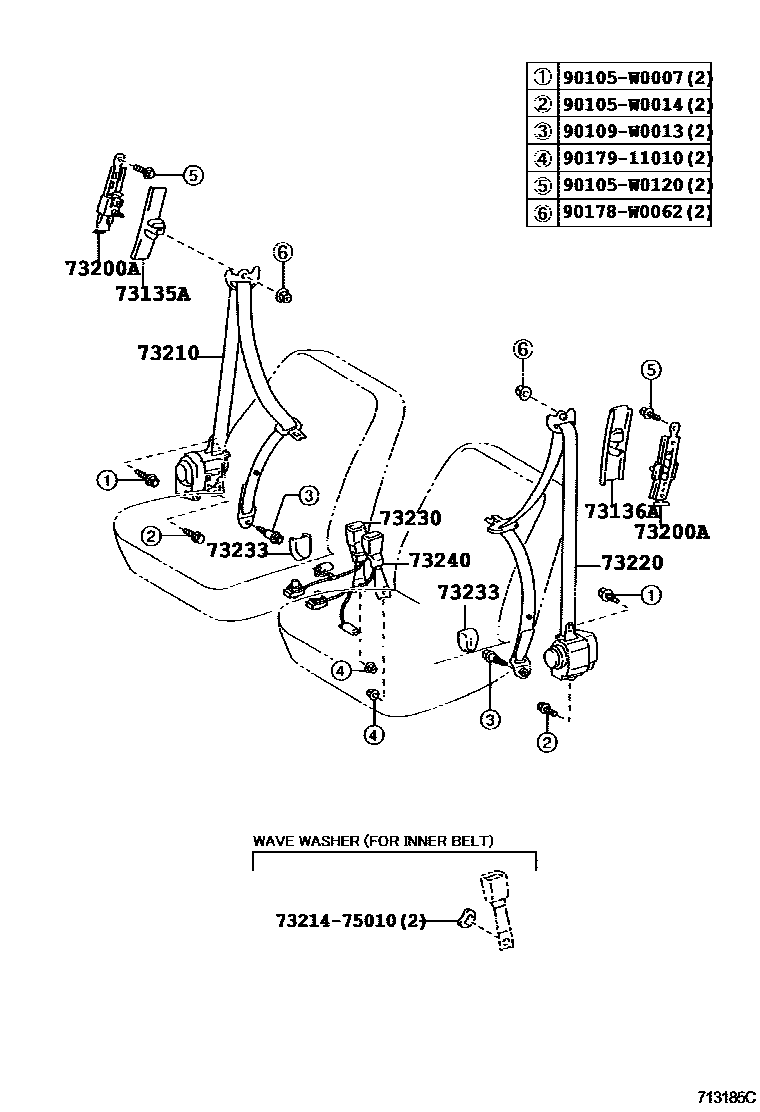

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR NO.1 SEAT BELT 0003 1REAR NO.2 SEAT BELT

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73023-0F010-B0iAUR10,ZNR1#200705-200902

LT.GRAY,TRIM1#

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73024-0F010-B0iAUR10,ZNR1#200705-200902

LT.GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0F010×2iAUR10,ZNR1#200402-200705

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0F030-C0iAUR10,ZNR1#..LHD200705-200902

BLACK,TRIM1#

main73210-0F040-C0iAUR10,CUR10,ZNR1#..RHD200402-200705

BLACK,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0F030-C0iAUR10,CUR10,ZNR1#..RHD200402-200705

BLACK,TRIM1#

main73220-0F040-C0iAUR10,CUR10,ZNR1#..LHD200402-200705

BLACK,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0F010-B0iAUR10,ZNR1#..RHD200705-200902

DK.GRAY,TRIM1#

main73230-0F020-B0iAUR10,ZNR1#..LHD200705-200902

DK.GRAY,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-02040-B0×2iAUR10,ZNR1#200705-200902

DK.GRAY,TRIM1#

main73233-52010-B1×2iAUR10,CUR10,ZNR1#200402-200705

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0F010-B0iAUR10,CUR10,ZNR1#..LHD200402-200705

DK.GRAY,TRIM1#

main73230-0F020-B0iAUR10,ZNR1#..RHD200705-200902

DK.GRAY,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105W0007

main90105-W0007

90105W0014

main90105-W0014

90105W0120

main90105-W0120

90109W0013

main90109-W0013

90178W0062

main90178-W0062

9017911010

main90179-11010

15 parts on this diagram · 3 diagrams in section
