FRONT SEAT & SEAT TRACK

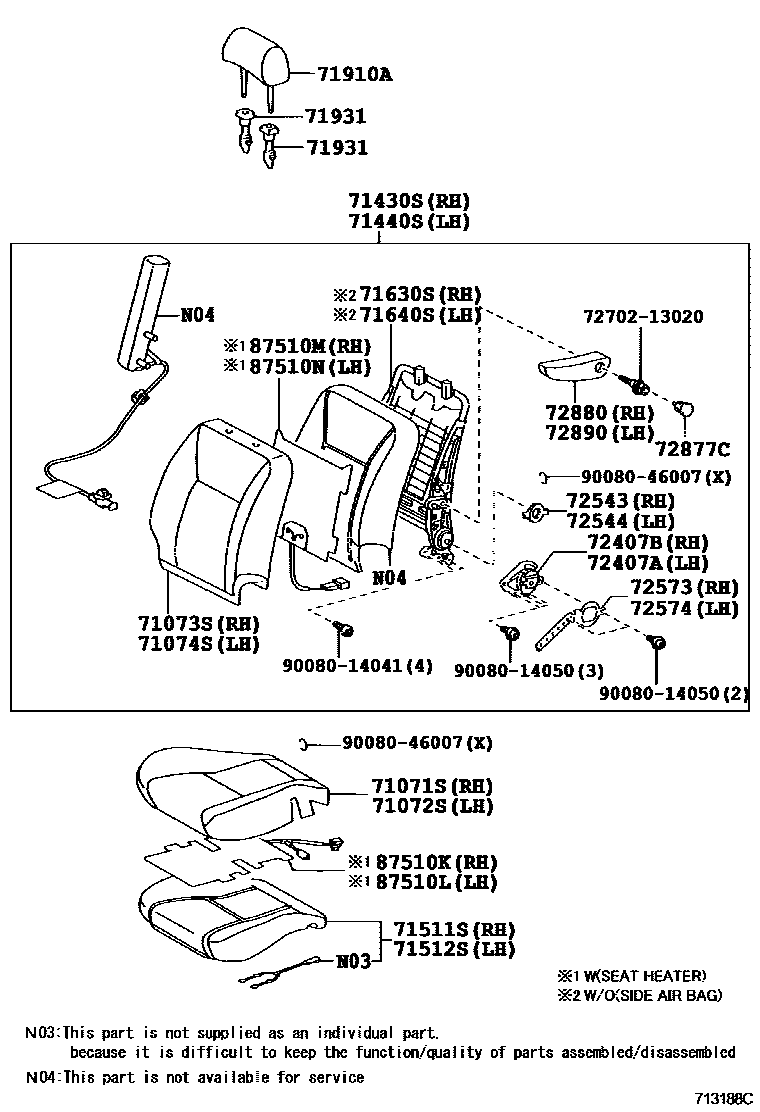

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71072-0F010-B3i200402-200508
DK.GRAY,TRIM1#
main71072-0F011-B4i200705-200902
DK.GRAY,TRIM1#
main71072-0F030-B1i200402-200508
DK.GRAY,TRIM1#
main71072-0F031-B2i200508-200705
DK.GRAY,TRIM1#
main71072-0F060-B0i200705-200902
DK.GRAY,TRIM1#
main71072-0F020-B3i200402-200508
SEAT HEATER-WITH,DK.GRAY,TRIM1#; W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71072-0F021-B4i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#; W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71072-0F040-B1i200402-200508
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71072-0F041-B2i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71072-0F050-B0i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71072-0F080-B0i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DARK GRAY,TRIM1#; WITHOUT(REAR SEAT)&COLD AREA SPEC&SEAT HEATER-WITH,DARK GRAY,TRIM1#
main71072-0F090-B0supersedes 71072-0F070-B0i200705-200902
LUNA PACKAGE,DK. GRAY,TRIM1#
main71072-0F100-B0i200705-200902
LUNA PACKAGE&COLD AREA SPEC&SEAT HEATER-WITH,DK. GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0F010-B3i200402-200508
DK.GRAY,TRIM1#
main71072-0F011-B4i200705-200902
DK.GRAY,TRIM1#
main71072-0F030-B1i200402-200508
DK.GRAY,TRIM1#
main71072-0F031-B2i200508-200705
DK.GRAY,TRIM1#
main71072-0F060-B0i200508-200705
DK.GRAY,TRIM1#
main71072-0F020-B3i200402-200508
SEAT HEATER-WITH,DK.GRAY,TRIM1#; W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71072-0F021-B4i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#; WITHOUT(REAR SEAT)&COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71072-0F040-B1i200402-200508
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71072-0F041-B2i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71072-0F050-B0i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71072-0F080-B0i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DARK GRAY,TRIM1#; WITHOUT(REAR SEAT)&COLD AREA SPEC&SEAT HEATER-WITH,DARK GRAY,TRIM1#
main71072-0F090-B0supersedes 71072-0F070-B0i200705-200902
LUNA PACKAGE,DK. GRAY,TRIM1#
main71072-0F100-B0i200705-200902
LUNA PACKAGE&COLD AREA SPEC&SEAT HEATER-WITH,DK. GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-0F010-B3i200402-200508
DK.GRAY,TRIM1#; W/O REAR SEAT,DK.GRAY,TRIM1#
main71073-0F011-B4i200705-200902
DK.GRAY,TRIM1#; WITHOUT(REAR SEAT),DK.GRAY,TRIM1#
main71073-0F020-B1i200402-200508
DK.GRAY,TRIM1#
main71073-0F100-B0i200508-200705
DK.GRAY,TRIM1#
main71073-0F200-B0i200705-200902
DK.GRAY,TRIM1#
main71073-0F021i200604-200705
W/O REAR SEAT
main71073-0F040-B3supersedes 71073-0F030-B3i200402-200508
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71073-0F041-B4supersedes 71073-0F031-B4i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71073-0F060-B1supersedes 71073-0F050-B1i200402-200508
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71073-0F061-B2supersedes 71073-0F051-B2i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71073-0F070-B3i200402-200508
W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71073-0F071-B4i200508-200705
W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71073-0F080-B0supersedes 71073-0F190-B0i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71073-0F100i200604-200705
W/O REAR SEAT
main71073-0F110-B0i200705-200902
DARK GRAY,TRIM1#; WITHOUT(REAR SEAT),DARK GRAY,TRIM1#
main71073-0F130-B0supersedes 71073-0F120-B0i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DARK GRAY,TRIM1#
main71073-0F140-B0supersedes 71073-0F110-B0i200705-200902
LUNA PACKAGE,DK. GRAY,TRIM1#
main71073-0F150-B0supersedes 71073-0F120-B0i200705-200902
LUNA PACKAGE,DK. GRAY,TRIM1#
main71073-0F160-B0supersedes 71073-0F120-B0i200705-200902
LUNA PACKAGE&COLD AREA SPEC&SEAT HEATER-WITH,DK. GRAY,TRIM1#
main71073-0F180-B0supersedes 71073-0F190-B0i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71073-0F210-B0i200604-200705
W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71073-0F220-B0i200604-200705
W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71073-0F230-B0i200705-200902
WITHOUT(REAR SEAT)&COLD AREA SPEC&SEAT HEATER-WITH,DARK GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0F050-B3i200402-200508
DK.GRAY,TRIM1#
main71074-0F051-B4i200705-200902
DK.GRAY,TRIM1#
main71074-0F060-B1i200402-200508
DK.GRAY,TRIM1#
main71074-0F090-B0i200508-200705
DK.GRAY,TRIM1#
main71074-0F180-B0i200705-200902
DK.GRAY,TRIM1#
main71074-0F020-B3supersedes 71074-0F010-B3i200402-200508
SEAT HEATER-WITH,DK.GRAY,TRIM1#; W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71074-0F021-B4i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#; WITHOUT(REAR SEAT)&COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71074-0F040-B1supersedes 71074-0F030-B1i200402-200508
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71074-0F041-B2supersedes 71074-0F031-B2i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71074-0F070-B0supersedes 71074-0F170-B0i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71074-0F110-B0i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DARK GRAY,TRIM1#; WITHOUT(REAR SEAT)&COLD AREA SPEC&SEAT HEATER-WITH,DARK GRAY,TRIM1#
main71074-0F130-B0supersedes 71074-0F100-B0i200705-200902
LUNA PACKAGE,DK. GRAY,TRIM1#
main71074-0F140-B0supersedes 71074-0F100-B0i200705-200902
LUNA PACKAGE&COLD AREA SPEC&SEAT HEATER-WITH,DK. GRAY,TRIM1#
main71074-0F150-B0supersedes 71074-0F120-B0i200705-200902
LUNA PACKAGE,DK. GRAY,TRIM1#
main71074-0F160-B0supersedes 71074-0F170-B0i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-0F010-B3i200402-200508
DK.GRAY,TRIM1#; W/O REAR SEAT,DK.GRAY,TRIM1#
main71430-0F011-B1i200508-200705
DK.GRAY,TRIM1#; W/O REAR SEAT,DK.GRAY,TRIM1#
main71430-0F020-B1i200402-200508
DK.GRAY,TRIM1#
main71430-0F100-B0i200508-200705
DK.GRAY,TRIM1#
main71430-0F190-B0i200705-200902
DK.GRAY,TRIM1#
main71430-0F021-B1i200604-200705
W/O REAR SEAT,DK.GRAY,TRIM1#
main71430-0F040-B3supersedes 71430-0F030-B3i200402-200508
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71430-0F041-B1supersedes 71430-0F031-B1i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71430-0F060-B1supersedes 71430-0F050-B1i200402-200508
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71430-0F061-B1supersedes 71430-0F051-B1i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71430-0F070-B3i200402-200508
W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71430-0F071-B1i200705-200902
WITHOUT(REAR SEAT)&COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71430-0F080-B0supersedes 71430-0F180-B0i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71430-0F120-B0supersedes 71430-0F110-B0i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71430-0F130-B0i200705-200902
DK.GRAY,TRIM1#; WITHOUT(REAR SEAT),DK.GRAY,TRIM1#
main71430-0F140-B0supersedes 71430-0F110-B0i200705-200902
LUNA PACKAGE,DK.GRAY,TRIM1#
main71430-0F150-B0supersedes 71430-0F110-B0i200705-200902
LUNA PACKAGE&COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71430-0F160-B0supersedes 71430-0F130-B0i200705-200902
LUNA PACKAGE,DK.GRAY,TRIM1#
main71430-0F170-B0supersedes 71430-0F180-B0i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71430-0F200-B0i200604-200705
W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71430-0F210-B0i200604-200705
W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71430-0F220-B0i200705-200902
WITHOUT(REAR SEAT)&COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-0F050-B3i200402-200508
DK.GRAY,TRIM1#
main71440-0F051-B1i200705-200902
DK.GRAY,TRIM1#
main71440-0F060-B1i200402-200508
DK.GRAY,TRIM1#
main71440-0F090-B0i200508-200705
DK.GRAY,TRIM1#
main71440-0F180-B0i200705-200902
DK.GRAY,TRIM1#
main71440-0F020-B3supersedes 71440-0F010-B3i200402-200508
SEAT HEATER-WITH,DK.GRAY,TRIM1#; W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71440-0F021-B1i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#; W/O REAR SEAT&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71440-0F040-B1supersedes 71440-0F030-B1i200402-200508
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71440-0F041-B1supersedes 71440-0F031-B1i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71440-0F070-B0supersedes 71440-0F170-B0i200508-200705
SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71440-0F110-B0i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#; WITHOUT(REAR SEAT)&COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71440-0F130-B0supersedes 71440-0F100-B0i200705-200902
LUNA PACKAGE,DK.GRAY,TRIM1#
main71440-0F140-B0supersedes 71440-0F100-B0i200705-200902
LUNA PACKAGE&COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
main71440-0F150-B0supersedes 71440-0F120-B0i200705-200902
LUNA PACKAGE,DK.GRAY,TRIM1#
main71440-0F160-B0supersedes 71440-0F170-B0i200705-200902
COLD AREA SPEC&SEAT HEATER-WITH,DK.GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71052-0F010i200402-200705
main71511-0F010i200402-200705
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71052-0F010i200705
main71511-0F010i200402-200705
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-0F030i200402-200508
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-0F030i200402-200508
71910AHEADREST ASSY, FRONT SEAT
main71910-0F020-B0×2i200705-200902
DK.GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-02070-B0×2i200402-200705
W(LOCK),DK.GRAY,TRIM1#
main71931-02050-B0×2i200402-200705
W/O(LOCK),DK.GRAY,TRIM1#
72407AHOUSING SUB-ASSY, FRONT SEAT RECLINING, LH
main72407-02020i200402-200705
72407BHOUSING SUB-ASSY, FRONT SEAT RECLINING RH
main72407-02010i200705
72543PLATE, RECLINING CONTROL, RH
main72543-02010i200402-200508
72544PLATE, RECLINING CONTROL, LH
main72543-02010i200402-200508
72573LEVER, RECLINING CONTROL, RH
main72573-02010i200402-200508
72574LEVER, RECLINING CONTROL, LH
main72574-02010i200402-200508
72877CCOVER, SEAT ARMREST
main72877-0F010-B0×2i200402-200705
DK.GRAY,TRIM1#
main72877-0F020-B0×2i200705-200902
DK.GRAY,TRIM1#
72880ARMREST ASSY, SEAT, C RH
main72880-0F010-B0i200402-200705
DK.GRAY,TRIM1#
main72880-0F020-B0i200705-200902
DK.GRAY,TRIM1#
72890ARMREST ASSY, SEAT, C LH
main72890-0F010-B0i200402-200705
DK.GRAY,TRIM1#
main72890-0F020-B0i200705-200902
DK.GRAY,TRIM1#
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-02020i200402-200508
SEAT HEATER-WITH; W/O REAR SEAT&SEAT HEATER-WITH
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-02020i200402-200508
SEAT HEATER-WITH; W/O REAR SEAT&SEAT HEATER-WITH
87510MHEATER ASSY, FRONT SEATBACK, RH
main87510-02010i200402-200508
SEAT HEATER-WITH; W/O REAR SEAT&SEAT HEATER-WITH
87510NHEATER ASSY, FRONT SEATBACK, LH
main87510-02010i200402-200508
SEAT HEATER-WITH; W/O REAR SEAT&SEAT HEATER-WITH
7270213020BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-13020
9008014041
main90080-14041
9008014050
main90080-14050
9008046007
main90080-46007

29 parts on this diagram · 3 diagrams in section
