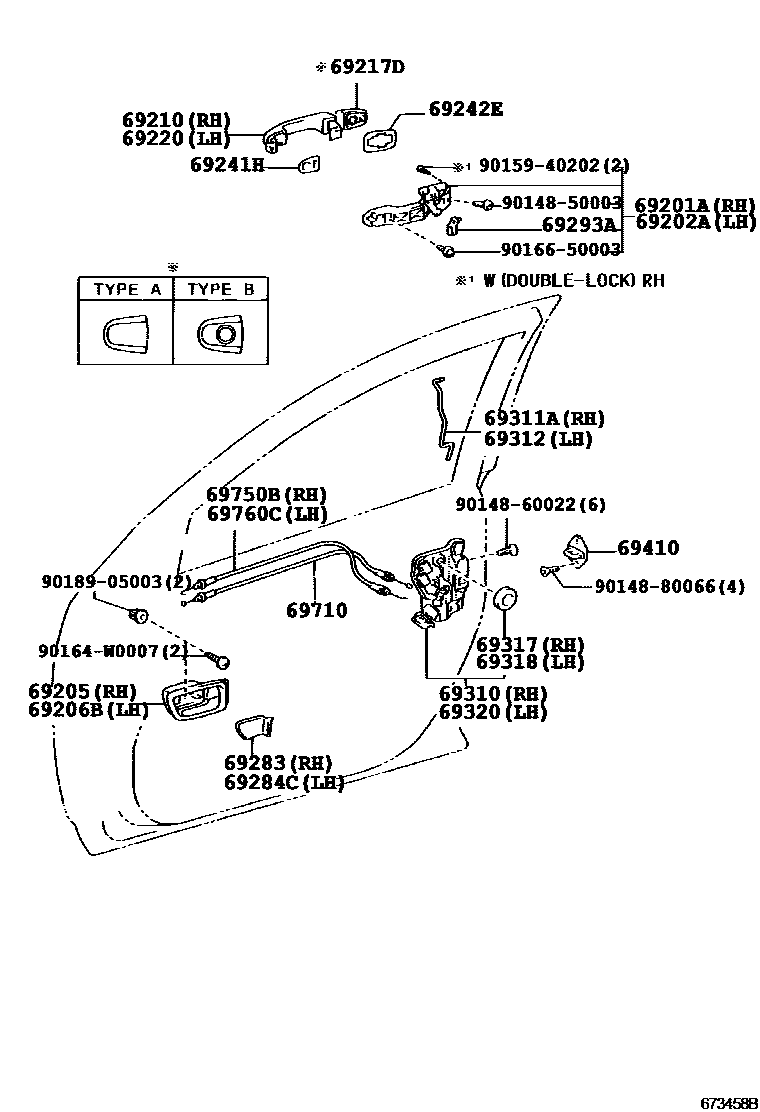

FRONT DOOR LOCK & HANDLE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02060iCUR10,ZNR1#200402-200405

sub69201-05060

main69201-05060iCUR10200406-200705

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02040iCUR10,ZNR1#200402-200405

sub69202-05020

main69202-05020iCUR10200406-200705

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0F010-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0F010-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69211-05903iAUR10,ZNR1#200402-200705

PAINT REQ.

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-02902iAUR10,ZNR1#200402-200705

TYPE B:REFER ILLUST.

main69217-02903iAUR10,CUR10,ZNR1#200402-200705

TYPE A:REFER ILLUST.

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69211-05903iAUR10,CUR10,ZNR1#200402-200705

PAINT REQ.

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02040iAUR10,ZNR1#200402-200705

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-02040iCUR10200402-200806

main69242-52020iAUR10,ZNR1#200807

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-0F010-B0iAUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-0F010-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-33010iCUR10200402-200705

RH

main69293-33020iCUR10200402-200705

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-02141iCUR10,ZNR1#..RHD200402-200501

sub69030-02142

main69030-02142iCUR10..RHD200502-200705

main69030-02161iCUR10,ZNR1#..LHD200402-200501

sub69030-02162

main69030-02162iCUR10..LHD200502-200705

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0F010iCUR10200402-200705

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0F010iCUR10200402-200705

69317SEAL, FRONT DOOR LOCK HOLE, RH

main69318-51010iCUR10,ZNR1#200402-200705

69318SEAL, FRONT DOOR LOCK HOLE, LH

main69318-51010iCUR10,ZNR1#200402-200705

69320LOCK ASSY, FRONT DOOR, LH

main69040-02141iCUR10,ZNR1#..RHD200402-200501

sub69040-02142

main69040-02142iCUR10..RHD200502-200705

main69040-02151iCUR10,ZNR1#..LHD200402-200501

sub69040-02152

main69040-02152iCUR10..LHD200502-200705

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010iCUR10200402-200705

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69710-0F010iAUR10,ZNR1#200402-200705

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0F010iCUR10200402-200705

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-0F010iCUR10200402-200705

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9015940202

main90159-40202

90164W0007

main90164-W0007

9016650003

main90166-50003

9018905003

main90189-05003

29 parts on this diagram · 1 diagram in section
