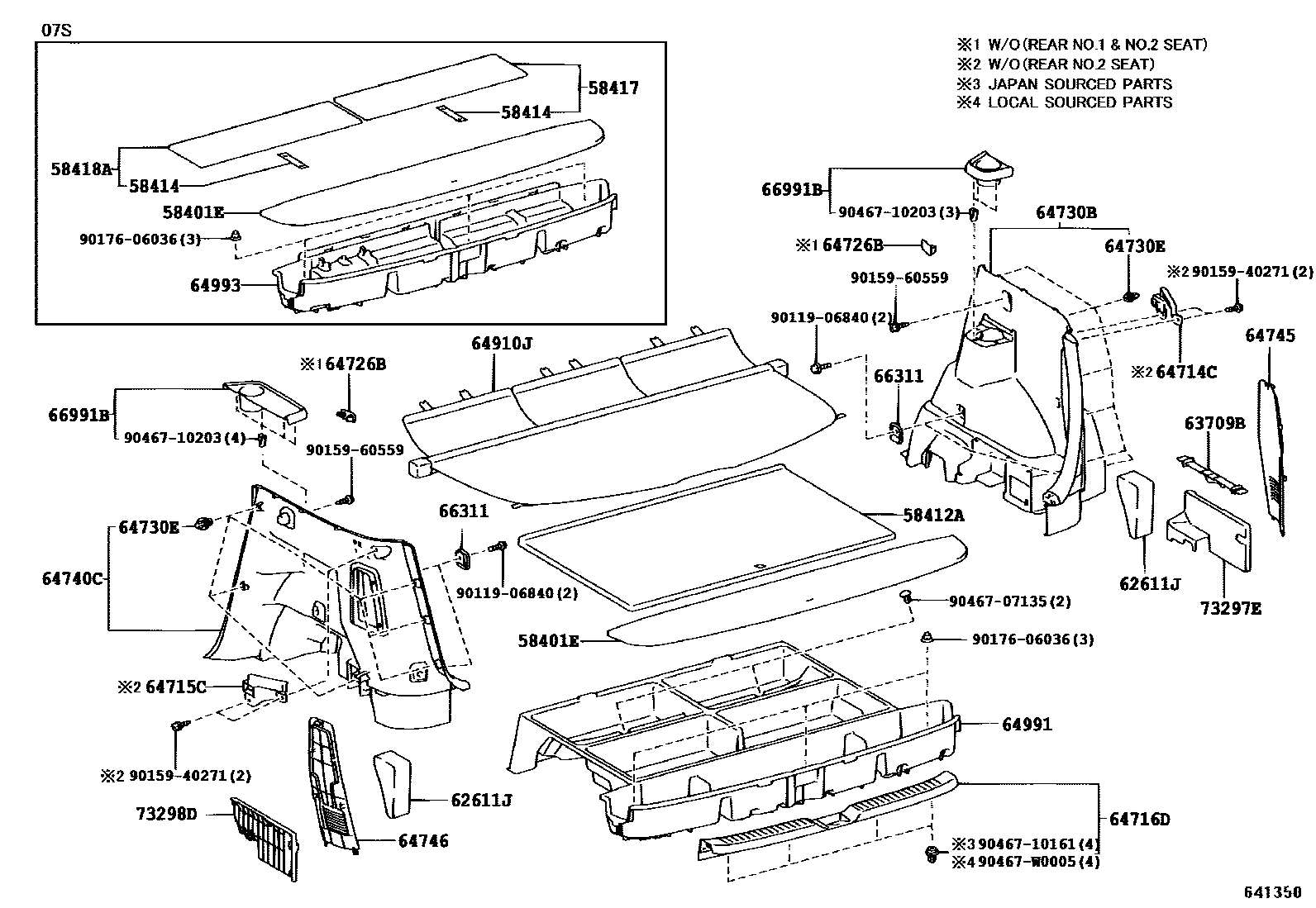

DECK BOARD & DECK TRIM COVER

58401EBOARD SUB-ASSY, DECK

main58410-0F010-B1iCUR10,ZNR1#200402-200705

W/O REAR SEAT,DK.GRAY,TRIM11

main58410-0F010-B1iCUR10,ZNR1#200402-200705

DK.GRAY,TRIM11

main58410-0F010-B1iAUR10200508-200902

DK.GRAY,TRIM1#

main58410-0F010-B1iAUR10200508-200705

W/O REAR SEAT,DK.GRAY,TRIM1#

main58410-0F010-B1iAUR10,ZNR1#200705-200902

WITHOUT(REAR SEAT),DK.GRAY,TRIM1#

58412ABOARD, DECK, NO.2

main58412-0F010-B1iCUR10,ZNR10..05S..TERRA200402-200705

DK.GRAY,TRIM11

main58412-0F010-B1iCUR10,ZNR10..05S..TERRA200402-200902

DK.GRAY,TRIM1#

main58412-0F010-B1iCUR10,ZNR10..05S..TERRA200402-200705

W/O REAR SEAT,DK.GRAY,TRIM11

main58412-0F010-B1iCUR10,ZNR10..05S..TERRA200402-200705

W/O REAR SEAT,DK.GRAY,TRIM1#

main58412-0F010-B1iAUR10,ZNR1#..05S200705-200902

WITHOUT(REAR SEAT),DK.GRAY,TRIM1#

58414CHECK, DECK BOARD

main58414-64010iCUR10..07S200402-200508

main58414-64010iAUR10,ZNR1#..07S200402-200705

W/O REAR SEAT

main58414-64010iAUR10,ZNR1#..07S200705

WITHOUT(REAR SEAT)

58417BOARD, REAR FLOOR, NO.3

main58417-0F010-B1iCUR10,ZNR1#..07S200402-200705

DK.GRAY,TRIM11

main58417-0F010-B1iCUR10,ZNR1#..07S200402-200705

W/O REAR SEAT,DK.GRAY,TRIM11

main58417-0F010-B1iAUR10..07S200508-200902

DK.GRAY,TRIM1#

main58417-0F010-B1iAUR10,ZNR1#..07S200705-200902

WITHOUT(REAR SEAT),DK.GRAY,TRIM1#

58418ABOARD, REAR FLOOR, NO.4

main58418-0F010-B1iCUR10,ZNR1#..07S200402-200705

DK.GRAY,TRIM11

main58418-0F010-B1iCUR10,ZNR1#..07S200402-200705

W/O REAR SEAT,DK.GRAY,TRIM11

main58418-0F010-B1iAUR10..07S200508-200902

DK.GRAY,TRIM1#

main58418-0F010-B1iAUR10,ZNR1#..07S200705-200902

WITHOUT(REAR SEAT),DK.GRAY,TRIM1#

62611JPAD, QUARTER WHEEL HOUSE

main62611-0F010iCUR10200402-200705

63709BBAND SUB-ASSY, ROOM RACK

main63709-12030-C0iAUR10,CUR10,ZNR1#200402-200902

BLACK,TRIM1#

64714CCOVER, DECK SIDE TRIM, RH

main64714-0F010-B0iAUR10,CUR10,ZNR1#..05S200402-200705

W/O REAR SEAT,DK.GRAY,TRIM1#

main64714-0F010-B0iAUR10,CUR10,ZNR1#..05S200402-200902

DK.GRAY,TRIM1#

main64714-0F010-B0iAUR10,ZNR1#..05S200705-200902

WITHOUT(REAR SEAT),DK.GRAY,TRIM1#

64715CCOVER, DECK SIDE TRIM, LH

main64715-0F010-B0iZNR11..LHD..TERRA200402-200902

DK.GRAY,TRIM1#

main64715-0F010-B0iAUR10,CUR10,ZNR1#..05S200402-200705

W/O REAR SEAT,DK.GRAY,TRIM1#

main64715-0F010-B0iAUR10,ZNR1#..05S200705-200902

WITHOUT(REAR SEAT),DK.GRAY,TRIM1#

64716DCOVER, DECK TRIM, REAR

main64716-0F010-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

64726BCLIP, DECK REAR TRIM

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0F010-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-10161iAUR10,ZNR1#200402-200705

(J)

main90467-W0005iAUR10,ZNR1#200402-200705

(L)

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0F010-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-0F011-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-0F011-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

64910JCOVER ASSY, TONNEAU

main64910-0F010-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

main64910-0F010-B0iAUR10,CUR10,ZNR1#200402-200705

W/O REAR SEAT,DK.GRAY,TRIM1#

main64910-0F010-B0iAUR10,ZNR1#200705-200902

WITHOUT(REAR SEAT),DK.GRAY,TRIM1#

64991BOX, DECK FLOOR, FRONT

main64991-0F010iAUR10,ZNR10..LHD..05S..TERRA200402-200705

W/O REAR SEAT

main64991-0F010iAUR10,ZNR1#..05S200705

WITHOUT(REAR SEAT)

64993BOX, DECK FLOOR, REAR

main64993-0F010iZNR11..LHD..TERRA200402-200705

W/O REAR SEAT

main64993-0F010iAUR10,ZNR1#..07S200705

WITHOUT(REAR SEAT)

main64993-0F010iCUR10..07S200402-200508

66311HOOK, ROPE

main66310-13010iAUR10,ZNR1#200402-200705

66991BHOLDER, CUP, NO.1

main66991-0F010-B0iAUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#,RH

main66992-0F010-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#,LH

73297ECOVER, DECK TRIM SIDE BELT HOLE, RH

main73297-0F010-B0iAUR10,ZNR1#..07S200402-200902

DK.GRAY,TRIM1#

main73297-0F020-B0iZNR11..LHD..TERRA200402-200705

W/O REAR SEAT,DK.GRAY,TRIM1#

main73297-0F020-B0iAUR10,CUR10,ZNR1#..05S200402-200902

DK.GRAY,TRIM1#

main73297-0F020-B0iAUR10,ZNR1#..05S200705-200902

WITHOUT(REAR SEAT),DK.GRAY,TRIM1#

73298DCOVER,DECK TRIM SIDE BELT HOLE, LH

main73298-0F010-B0iAUR10,CUR10,ZNR1#..07S200402-200902

DK.GRAY,TRIM1#

main73298-0F020-B0iAUR10,CUR10,ZNR1#..05S200402-200705

W/O REAR SEAT,DK.GRAY,TRIM1#

main73298-0F020-B0iZNR11..LHD..TERRA200402-200902

DK.GRAY,TRIM1#

main73298-0F020-B0iZNR11..LHD..5FS;ZNR11..LHD..5F..TERRA200705-200902

WITHOUT(REAR SEAT),DK.GRAY,TRIM1#

9011906840

main90119-06840

9015940271

main90159-40271

9015960559

main90159-60559

9017606036

main90176-06036

9046707135

main90467-07135

9046710161

main90467-10161

9046710203

main90467-10203

90467W0005

main90467-W0005

31 parts on this diagram · 1 diagram in section
