SIDE MEMBER

5701HOLE PLUG

→ Go to FIG 57-01

58741BPROTECTOR, QUARTER PANEL, RH

main58741-0F010iAUR10,ZNR1#200705

W/ANTI-CHIPPING

58742BPROTECTOR, QUARTER PANEL, LH

main58742-0F010iCUR10200402-200508

W/ANTI-CHIPPING

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0F010iAUR10,CUR10,ZNR1#200402-200705

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-0F010iAUR10,CUR10,ZNR1#200402-200705

61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE

main61033-0F010iAUR10,ZNR1#200705

61034REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH

main61034-0F010iCUR10200402-200508

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-0F010iAUR10,CUR10,ZNR1#200402-200705

main61037-0F902iAUR10,ZNR1#200708

main61037-0F903iAUR10,ZNR1#200705-200708

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-0F010iAUR10,CUR10,ZNR1#200402-200705

main61038-0F902iAUR10,ZNR1#200708

main61038-0F903iAUR10,ZNR1#200705-200708

61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH

main61103-0F010iCUR10200402-200508

61104BREINFORCEMENT SUB-ASSY, COWL SIDE, LH

main61104-0F010iAUR10,ZNR1#200705

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-0F010iCUR10200402-200508

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-0F010iCUR10200402-200508

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0F010iCUR10200402-200508

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-0F010iCUR10200402-200508

61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

main61175-0F010iCUR10200402-200508

61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

main61176-0F010iCUR10200402-200508

61211RAIL, ROOF SIDE, OUTER RH

main61211-0F010iCUR10200402-200508

61212RAIL, ROOF SIDE, OUTER LH

main61212-0F010iCUR10200402-200508

61231RAIL, ROOF SIDE, INNER RH

main61231-0F010iCUR10200402-200508

61232ARAIL, ROOF SIDE, INNER LH

main61232-0F010iAUR10,ZNR1#200402-200705

61241AGUSSET, ROOF SIDE RAIL, REAR RH

main61241-0F010iAUR10,CUR10,ZNR1#200402-200705

61242AGUSSET, ROOF SIDE RAIL, REAR LH

main61242-0F010iAUR10,CUR10,ZNR1#200402-200705

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-0F010iAUR10,CUR10,ZNR1#200402-200705

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61246-0F010iAUR10,CUR10,ZNR1#200402-200705

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61247-0F010iAUR10,CUR10,ZNR1#200402-200705

61248BREINFORCEMENT, ROOF SIDE RAIL, INNER LH

main61248-0F010iAUR10,CUR10,ZNR1#200402-200705

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0F010iAUR10,CUR10,ZNR1#200402-200705

main61311-0F011iAUR10,ZNR1#200708

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0F010iAUR10,CUR10,ZNR1#200402-200705

main61312-0F011iAUR10,ZNR1#200708

61343APILLAR, CENTER BODY, INNER RH

main61343-0F900iCUR10200402-200508

61344APILLAR, CENTER BODY, INNER LH

main61344-0F900iCUR10200402-200508

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0F010iAUR10,CUR10,ZNR1#..DCR,DCRL,HTWC200402-200512

main61403-0F011iAUR10,ZNR1#200601-200705

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-0F010iAUR10,CUR10,ZNR1#..DCR,DCRL,HTWC200402-200512

main61404-0F011iAUR10,ZNR1#200601-200705

61415BEXTENSION, ROCKER, OUTER RH

main61415-0F010iAUR10,CUR10,ZNR1#200402-200705

61416BEXTENSION, ROCKER, OUTER LH

main61416-0F010iAUR10,CUR10,ZNR1#200402-200705

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-0F010iCUR10200402-200508

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-0F010iCUR10200402-200508

61605AREINFORCEMENT SUB-ASSY, QUARTER PANEL, RH

main61605-0F010iCUR10200402-200508

61606AREINFORCEMENT SUB-ASSY, QUARTER PANEL, LH

main61606-0F010iCUR10200402-200508

61611PANEL, QUARTER, RH

main61601-0F010iAUR10,CUR10,ZNR1#200402-200705

main61601-0F011iAUR10,ZNR1#200708

61612PANEL, QUARTER, LH

main61602-0F010iAUR10,ZNR1#200705-200708

main61602-0F011iAUR10,ZNR1#200708

61625MBRACKET, QUARTER PANEL REINFORCEMENT,RH

main61625-0F010iAUR10,CUR10,ZNR1#200402-200705

61626MBRACKET, QUARTER PANEL REINFORCEMENT, LH

main61626-0F010iAUR10,CUR10,ZNR1#200402-200705

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-0F010iAUR10,CUR10,ZNR1#200402-200705

main61631-0F011iAUR10,ZNR1#200708-200902

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-0F010iAUR10,CUR10,ZNR1#200402-200705

main61632-0F011iAUR10,ZNR1#200708-200902

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-0F902iCUR10..07S200402-200508

NO.1

main61607-0F903iCUR10..05S200402-200508

NO.1

main61633-0F010iAUR10,ZNR1#..07S200402-200705

NO.2

main61633-0F020iCUR10..05S200402-200508

NO.2

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-0F902iAUR10,ZNR1#..07S200402-200705

NO.1

main61608-0F903iAUR10,ZNR1#..05S200705

NO.1

main61634-0F010iAUR10,ZNR1#..07S200705

NO.2

main61634-0F020iCUR10..05S200402-200508

NO.2

61637EBRACKET, QUARTER WHEEL HOUSE

main61637-0F010iAUR10,CUR10,ZNR1#..07S200402-200705

61638FBRACKET, QUARTER WHEEL HOUSE, LH

main61637-0F010iAUR10,CUR10,ZNR1#..07S200402-200705

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-0F010iCUR10200402-200508

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-0F010iCUR10200402-200508

61677REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH

main61677-0F010iAUR10,CUR10,ZNR1#..07S200402-200705

61678REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH

main61678-0F010iAUR10,CUR10,ZNR1#..07S200402-200705

61701CPANEL SUB-ASSY, ROOF SIDE, OUTER RH

main61701-0F901iCUR10..07S200402-200508

main61701-0F902iCUR10..05S200402-200508

61702CPANEL SUB-ASSY, ROOF SIDE, OUTER LH

main61702-0F901iCUR10..07S200402-200508

main61702-0F902iAUR10,ZNR1#..05S200402-200705

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-0F900iAUR10,ZNR1#..07S200705

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-0F900iAUR10,ZNR1#200402-200705

61773BFRAME, BACK DOOR OPENING SIDE, UPPER RH

main61773-0F010iCUR10200402-200508

61774BFRAME, BACK DOOR OPENING SIDE, UPPER LH

main61774-0F010iCUR10200402-200508

61815CCOVER, ROOF SIDE, INNER UPPER

main61815-64010×2iCUR10200402-200508

61824PLATE, NOISE CONTROL, NO.1

main61824-12050×4iAUR10,ZNR1#200705

T=0.3

main61824-12060×4iAUR10,ZNR1#200402-200705

T=1.0

61824DPLATE, NOISE CONTROL, NO.1

main61824-52040×2iCUR10200402-200508

61848ARETAINER, QUARTER PANEL, LH

main61848-0F010iCUR10200402-200508

62152BPAD, COWL SIDE SILENCER, NO.2

main62152-12050×2iCUR10200402-200508

62554BPAD, PILLAR, NO.4

main62554-0F010×2iCUR10200402-200508

65637LINER, REAR WHEEL HOUSE, RH

main65637-0F010iAUR10,CUR10,ZNR1#..DCR,DCRL,HTWC200402-200601

main65637-0F011iAUR10,ZNR1#200602-200705

65638LINER, REAR WHEEL HOUSE, LH

main65638-0F010iAUR10,CUR10,ZNR1#..DCR,DCRL,HTWC200402-200601

main65638-0F011iAUR10,ZNR1#200602-200705

68981ARETAINER, BACK DOOR STAY, RH

main68981-0F010iCUR10200402-200508

68982ARETAINER, BACK DOOR STAY, LH

main68982-0F010iCUR10200402-200508

90105W0034

main90105-W0034

90119W0048

main90119-W0048

9017906308

main90179-06308

9018906157

main90189-06157

9046706121

main90467-06121

9151580818

main91515-80818

9164180816

main91641-80816

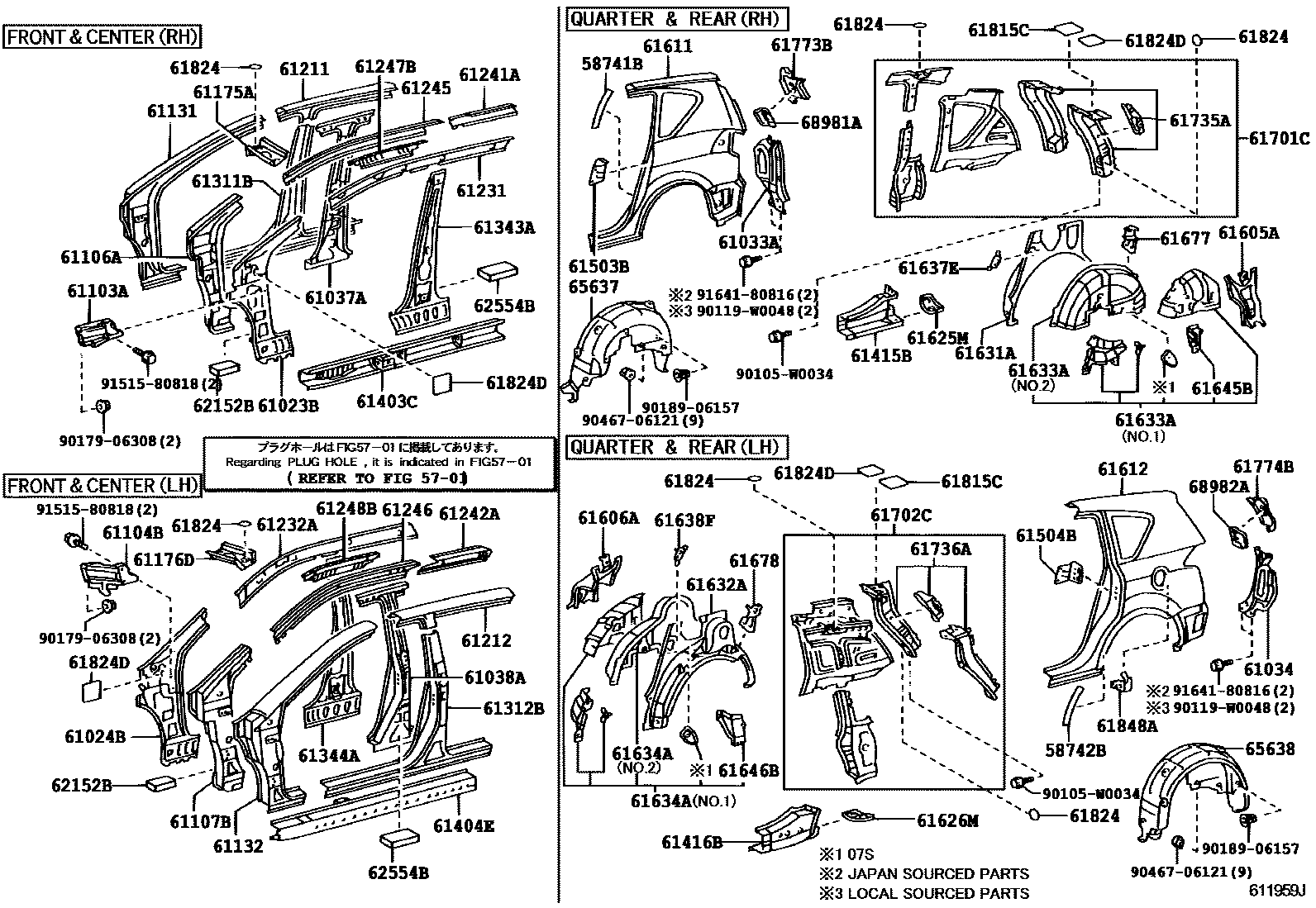

76 parts on this diagram · 1 diagram in section
