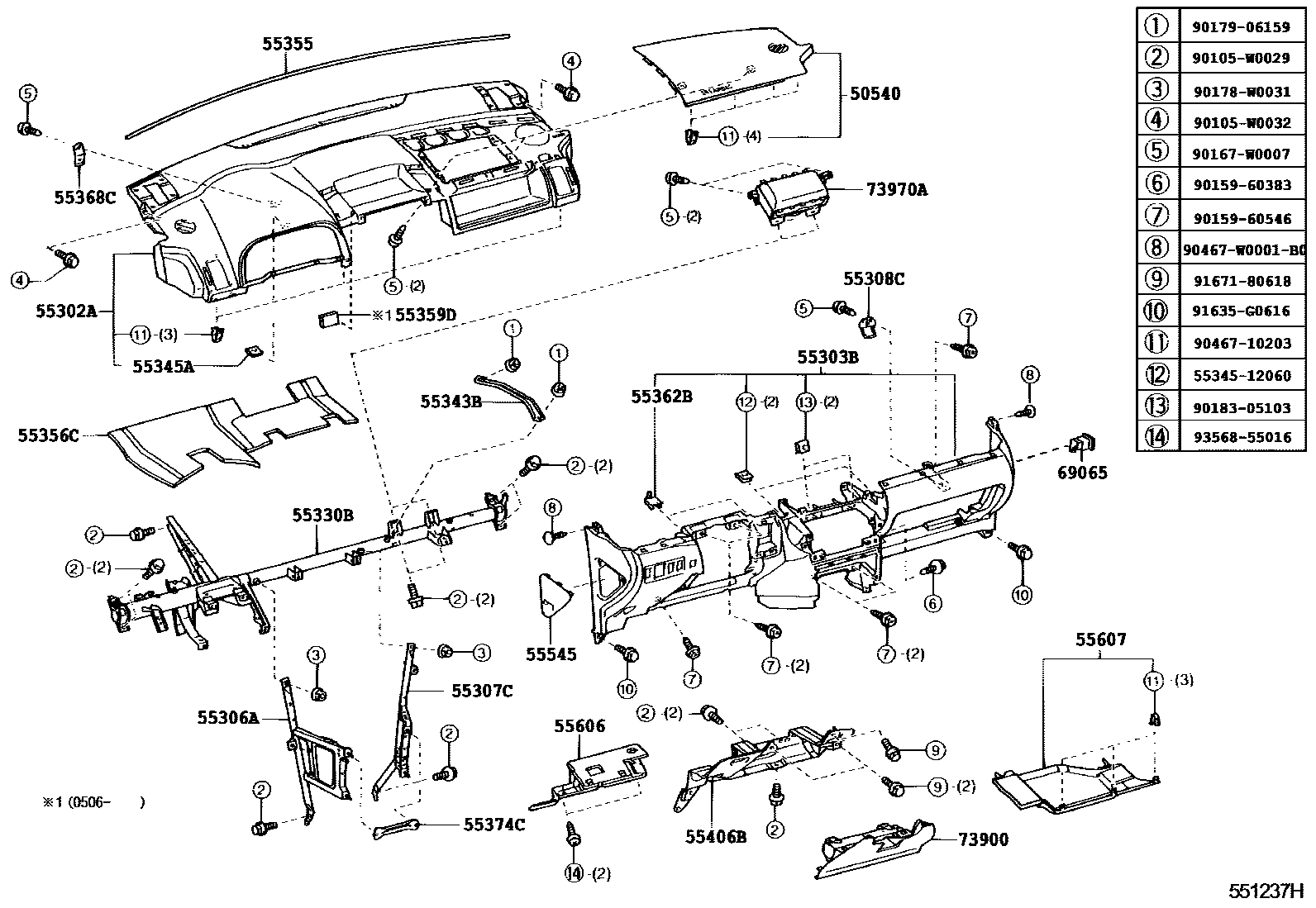

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

50540DO0R ASSY, AIRBAG PASSENGER

main50540-0F010-B0iAUR10,ZNR1#..LHD200705-200902

DK.GRAY,TRIM1#

main50540-0F020-B0iAUR10,CUR10,ZNR1#..RHD200402-200705

DK.GRAY,TRIM1#

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0F010-B0iCUR10,ZNR1#..LHD200402-200407

DK.GRAY,TRIM1#

main55302-0F011-B0iAUR10,ZNR1#..LHD200705-200902

DK.GRAY,TRIM1#

main55302-0F020-B0iCUR10,ZNR1#..RHD200402-200407

DK.GRAY,TRIM1#

main55302-0F021-B0iAUR10,ZNR1#..RHD200705-200902

DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0F010-B0iAUR10,CUR10,ZNR1#..LHD200402-200705

DK.GRAY,TRIM1#

main55303-0F020-B0iAUR10,CUR10,ZNR1#..RHD200402-200705

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0F010iCUR10..LHD200402-200508

main55306-0F020iAUR10,ZNR1#..RHD200705

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0F010iCUR10..LHD200402-200508

main55307-0F020iAUR10,ZNR1#..RHD200705

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-0F010iCUR10200402-200508

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0F010iAUR10,ZNR1#..LHD200705-200902

main55330-0F020iAUR10,CUR10,ZNR1#..RHD200402-200705

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-0F010iCUR10..LHD200402-200508

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iCUR10,ZNR1#200402-200403

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0F010iAUR10,ZNR1#200705

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0F010iAUR10,ZNR1#..LHD200705

main55356-0F020iAUR10,ZNR1#..RHD200402-200705

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55357-0F060iAUR10,ZNR1#200512-200705

main55357-64020iAUR10,ZNR1#..DCR,DCRL,HTWC200506-200511

55362BBRACKET, METER, LOWER

main55362-12050×2iAUR10,ZNR1#200705

55368CBRACKET, METER MOUNTING

main55368-02050iCUR10200402-200508

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55349-0F010iCUR10200402-200508

55406BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

main55406-0F010iAUR10,ZNR1#..LHD200705

main55406-0F020iAUR10,ZNR1#..RHD200402-200705

55545COVER, FUSE BOX OPENING

main55545-0F010-B0iAUR10,CUR10,ZNR1#..LHD200402-200705

DK.GRAY,TRIM1#

main55545-0F020-B0iAUR10,CUR10,ZNR1#..RHD200402-200705

DK.GRAY,TRIM1#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-0F010-B0iAUR10,ZNR1#..LHD200705-200902

DK.GRAY,TRIM1#

main55606-0F020-B0iAUR10,CUR10,ZNR1#..RHD200402-200705

DK.GRAY,TRIM1#

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-02010iCUR10..RHD200402-200508

main55607-02030iCUR10..LHD200402-200508

69065CYLINDER SUB-ASSY, AIRBAG CUT OFF SW

main69065-64020iAUR10,ZNR1#200705

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-0F010-B0iAUR10,CUR10,ZNR1#..LHD200402-200705

DK.GRAY,TRIM1#

main73900-0F020-B0iAUR10,CUR10,ZNR1#..RHD200402-200705

DK.GRAY,TRIM1#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0F010iAUR10,ZNR1#200705

main73970-0F010-B0iZNR1#200402-200705

DK.GRAY,TRIM1#

5534512060GARNISH, GLOVE COMPARTMENT, UPPER

main55345-12060

90105W0029

main90105-W0029

90105W0032

main90105-W0032

9015960383

main90159-60383

9015960546

main90159-60546

90167W0007

main90167-W0007

90178W0031

main90178-W0031

9017906159

main90179-06159

9018305103

main90183-05103

9046710203

main90467-10203

90467W0001B0

main90467-W0001B0

91635G0616

main91635-G0616

9167180618

main91671-80618

9356855016

main93568-55016

36 parts on this diagram · 8 diagrams in section
