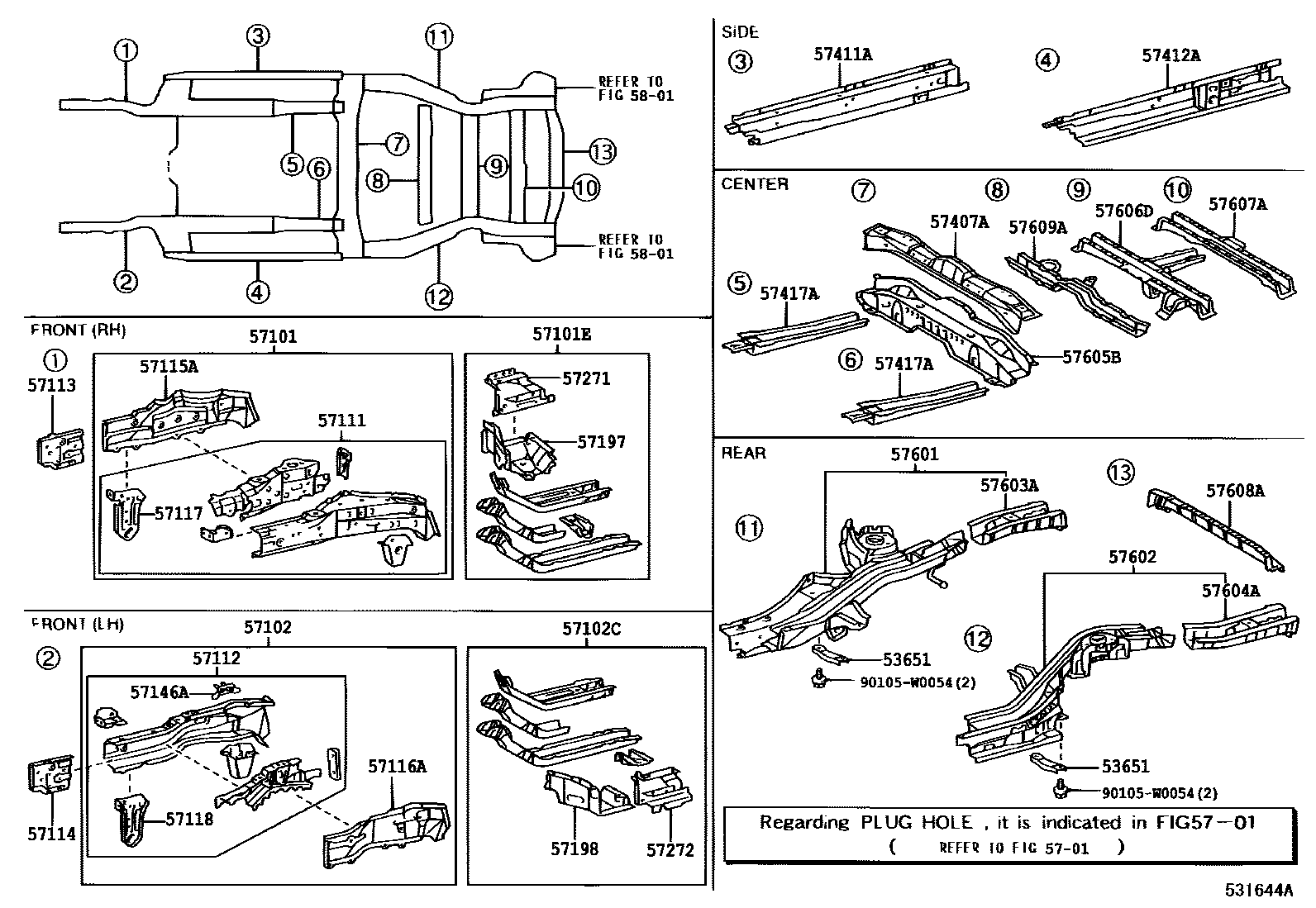

FLOOR SIDE MEMBER

53651BRACE, REAR FLOOR SIDE MEMBER

main53651-32010×2iCUR10200402-200508

5701HOLE PLUG

→ Go to FIG 57-01

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0F900iAUR10,ZNR1#200402-200705

main57101-0F901iCUR10200402-200508

57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-0F010iCUR10200402-200508

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0F900iCUR10,ZNR1#200402-200508

main57102-0F902iAUR10,ZNR1#200508-200705

57102CMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-0F010iCUR10200402-200508

57111MEMBER, FRONT SIDE, RH

main57111-0F900iZNR1#200402-200408

main57111-0F901iCUR10200402-200408

main57111-0F902iAUR10,ZNR1#200408-200705

main57111-0F903iCUR10200408-200508

57112MEMBER, FRONT SIDE, LH

main57112-02903iAUR10,ZNR1#200508-200705

main57112-0F900iCUR10,ZNR1#200402-200508

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02060iAUR10,CUR10,ZNR1#200402-200705

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02050iAUR10,ZNR1#200705-200902

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-0F010iCUR10200402-200508

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-0F010iCUR10200402-200508

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-02020iAUR10,CUR10,ZNR1#200402-200705

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-02020iAUR10,CUR10,ZNR1#200402-200705

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-12020iCUR10200402-200508

57197BOX, TORQUE, FRONT RH

main57197-02020iCUR10200402-200508

57198BOX, TORQUE, FRONT LH

main57198-02040iCUR10200402-200508

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-0F010iCUR10200402-200508

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-0F010iCUR10200402-200508

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-0F010iAUR10,ZNR1#200402-200705

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-0F010iAUR10,CUR10,ZNR1#200402-200705

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-0F010iAUR10,CUR10,ZNR1#200402-200705

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57505-0F010×2iAUR10,ZNR1#200402-200705

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0F010iCUR10..05S200402-200508

main57601-0F020iCUR10..07S200402-200508

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0F010iCUR10..05S200402-200508

main57602-0F020iCUR10..07S200402-200508

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0F010iCUR10..05S200402-200508

main57603-0F020iAUR10,ZNR1#..07S200402-200705

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-0F010iAUR10,ZNR1#..05S200402-200705

main57604-0F020iCUR10..07S200402-200508

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0F010iAUR10,ZNR1#200402-200705

57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING

main57606-0F010iAUR10,ZNR1#..05S200705

main57606-0F020iAUR10,ZNR1#..07S200402-200705

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0F010iCUR10..05S200402-200508

main57607-0F020iCUR10..07S200402-200508

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-0F010iCUR10200402-200508

57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-0F010iCUR10200402-200508

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

90105W0054

main90105-W0054

34 parts on this diagram · 1 diagram in section
