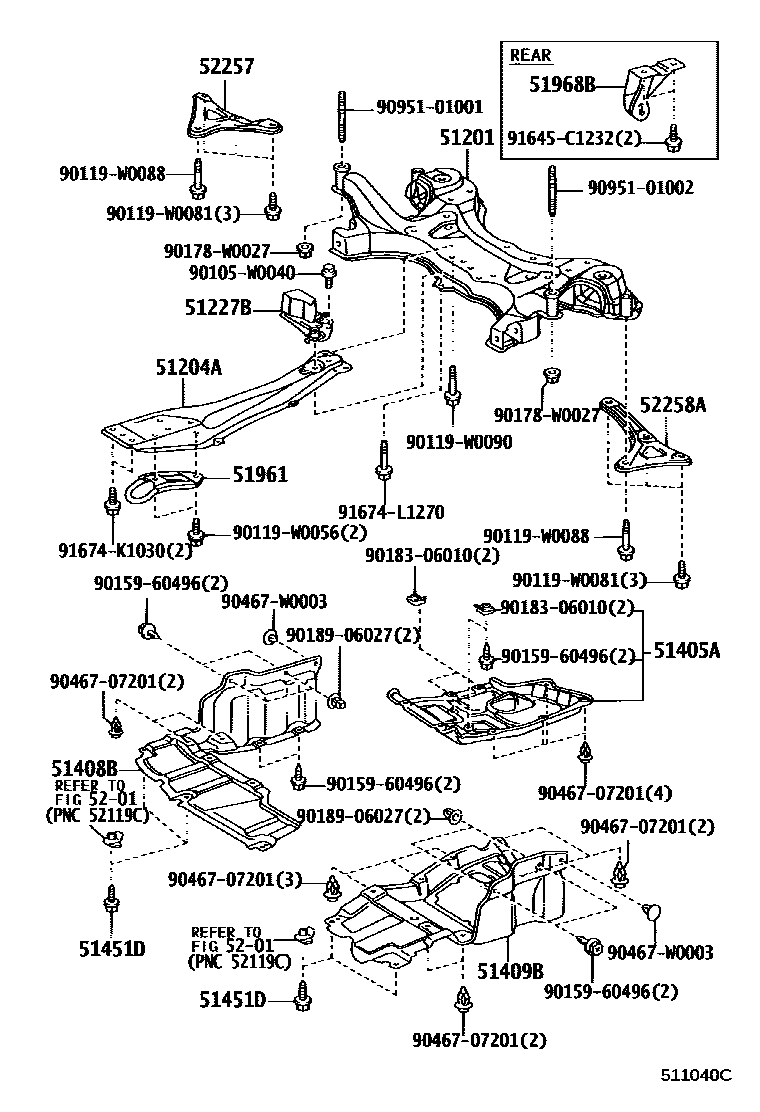

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0F010iCUR10,ZNR1#200402-200502

main51201-0F011iCUR10200503-200508

main51201-0F020iAUR10..DCR,DCRL200508-200601

main51201-0F021iAUR10200602-200705

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-05022iZNR1#200705

main51204-0F010iAUR10200705

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-64010iCUR10200402-200508

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-0F010iCUR10200402-200508

main51405-0F020iAUR10200705

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main51408-0F010iCUR10,ZNR1#200402-200503

main51408-0F011iCUR10,ZNR1#200504-200508

main51408-0F012iAUR10,ZNR1#200508-200612

main51408-0F013iAUR10,ZNR1#200701-200705

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-0F010iCUR10,ZNR1#200402-200508

main51409-0F012iAUR10,ZNR1#200508-200705

51451DSCREW, NO.1

main90159-60488×2iAUR10,CUR10,ZNR1#200402-200705

51961HOOK, NO.1

main51960-0F010iCUR10200402-200508

51968BHOOK, TRANSPORT, REAR LH

main51968-02020iCUR10200402-200508

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02020iCUR10200402-200508

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0F010iCUR10200402-200508

90105W0040

main90105-W0040

90119W0056

main90119-W0056

90119W0081

main90119-W0081

90119W0088

main90119-W0088

90119W0090

main90119-W0090

9015960496

main90159-60496

90178W0027

main90178-W0027

9018306010

main90183-06010

9018906027

main90189-06027

9046707201

main90467-07201

90467W0003

main90467-W0003

9095101001

main90951-01001

9095101002

main90951-01002

91645C1232

main91645-C1232

91674K1030

main91674-K1030

91674L1270

main91674-L1270

28 parts on this diagram · 2 diagrams in section
