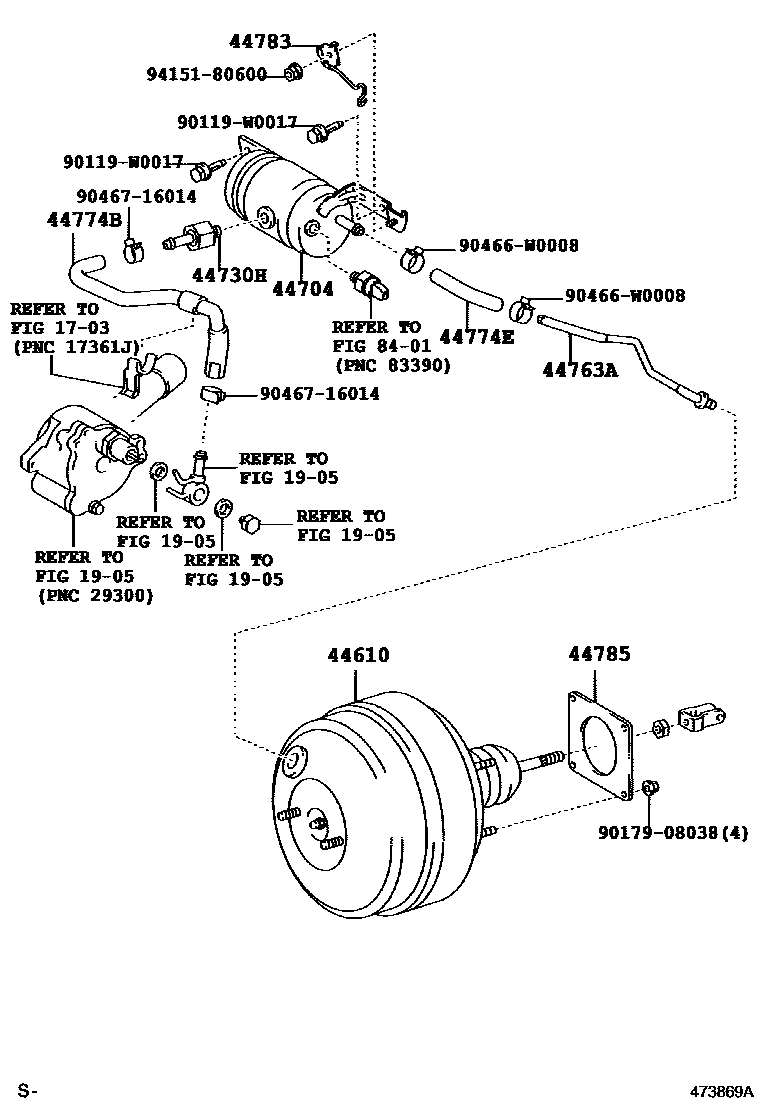

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1703AIR CLEANER

→ Go to FIG 17-03

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-05090iAUR10,ZNR1#..LHD200705-200902

main44610-05100iAUR10,ZNR1#..RHD200705-200902

44704RESERVOIR SUB-ASSY, VACUUM

main44704-64010iCUR10..LHD200402-200508

main44704-64020iCUR10..RHD200402-200508

44730HVALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)

main44730-12080iCUR10200402-200508

44763ATUBE, HOSE TO HOSE, NO.1

main44763-05010iZNR1#..LHD200705

main44763-05020iZNR1#..RHD200402-200705

main44763-0F010iCUR10..LHD200402-200508

main44763-0F020iCUR10..RHD200402-200508

main44763-0F030iAUR10..LHD200508-200705

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-02040iZNR1#..LHD200402-200705

main44774-12420iZNR1#..RHD200402-200705

main44774-64010iCUR10200402-200508

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-12470iZNR10200705

main44774-20310iZNR11200402-200705

main44774-20390iCUR10..RHD200402-200508

main44774-64020iCUR10..LHD200402-200508

44783CLAMP, VACUUM HOSE

main44783-0F010iAUR10..LHD200508-200705

NO.2

main44783-0F020×2iAUR10..LHD200705

NO.3

main44783-20130iAUR10..LHD; AUR10..RHD200508-200705

NO.1

main44783-64010iCUR10..LHD200402-200508

main44783-64020iCUR10..RHD200402-200508

44785GASKET, BRAKE BOOSTER

main44785-20020iCUR10,ZNR1#200402-200403

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119W0017

main90119-W0017

9017908038

main90179-08038

90466W0008

main90466-W0008

9046716014

main90467-16014

9415180600

main94151-80600

16 parts on this diagram · 6 diagrams in section
