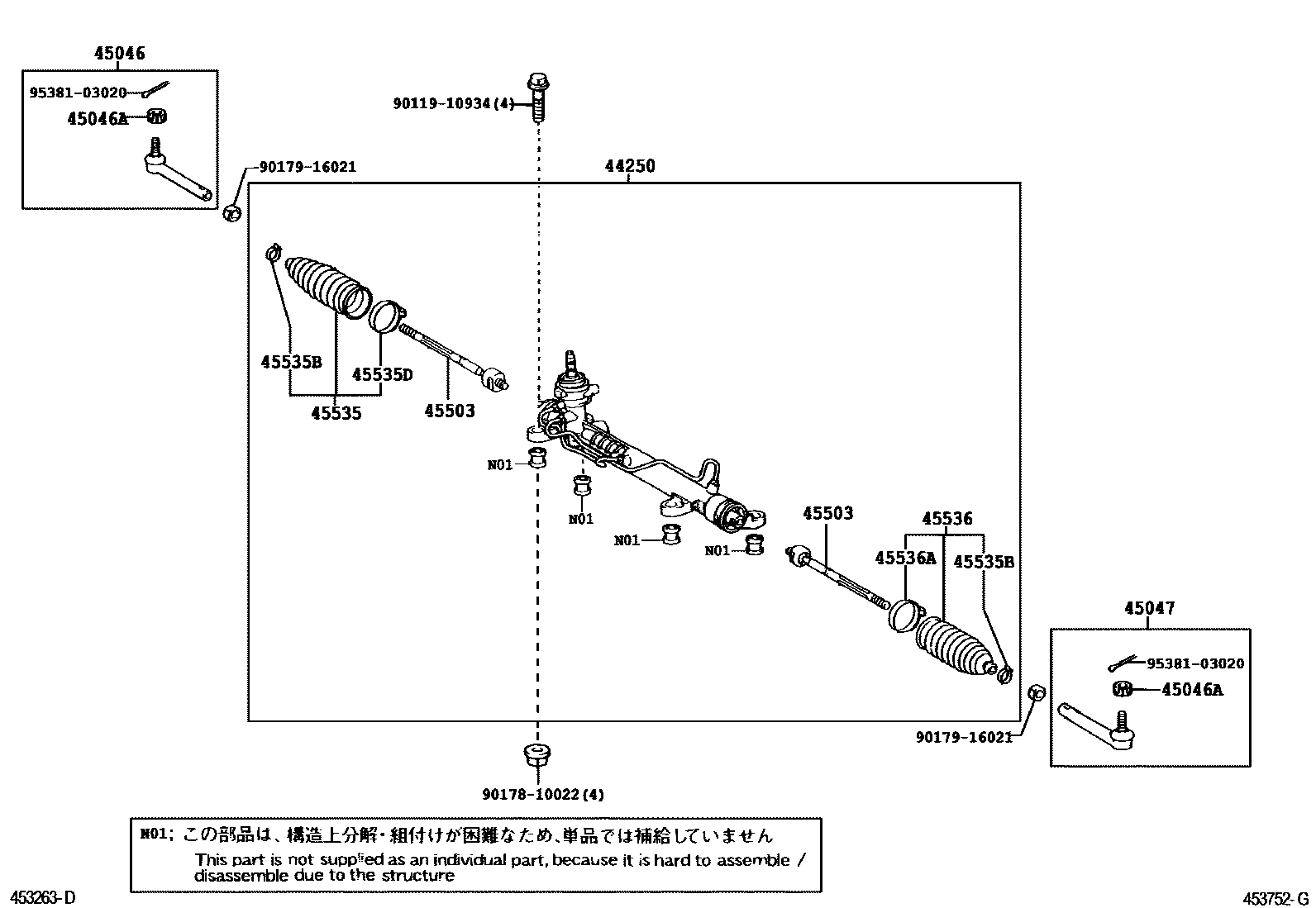

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0F010iCUR10,ZNR1#..RHD200402-200405

main44250-0F011iAUR10,CUR10,ZNR1#..RHD200406-200705

main44250-0F020iCUR10,ZNR1#..LHD200402-200405

main44250-0F021iAUR10,CUR10,ZNR1#..LHD200406-200705

45046END SUB-ASSY, TIE ROD, RH

main45046-09430iAUR10,ZNR1#200402-200705

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iCUR10200402-200508

45047END SUB-ASSY, TIE ROD, LH

main45046-09430iCUR10200402-200508

45503END SUB-ASSY, STEERING RACK

main45503-0F010×2iAUR10,ZNR1#200705

45535BOOT, STEERING RACK, NO.1

main45535-09020iCUR10200402-200508

45535BCLIP(FOR STEERING RACK BOOT)

main90069-49001×2iCUR10,ZNR1#200402-200405

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90069-48001iCUR10,ZNR1#200402-200405

45536BOOT, STEERING RACK, NO.2

main45535-09020iCUR10200402-200508

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90069-48001iCUR10,ZNR1#200402-200405

9011910934

main90119-10934

9017810022

main90178-10022

9017916021

main90179-16021

9538103020

main95381-03020

14 parts on this diagram · 2 diagrams in section
