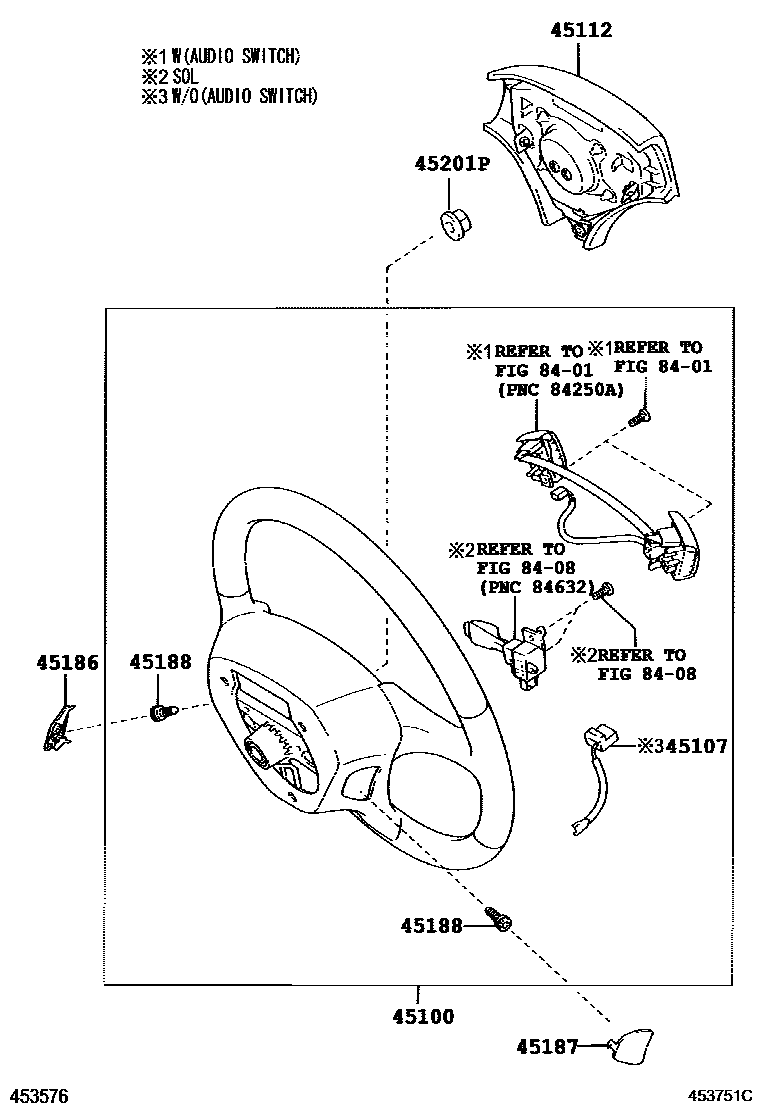

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0F010-B0iAUR10,CUR10,ZNR10..05S..TERRA200402-200705

DK.GRAY,TRIM1#,W/O(STEERING SWITCH)

main45100-0F010-B0iAUR10,ZNR1#..TERRA200705-200902

DK.GRAY,TRIM1#

main45100-0F030-B0iAUR10,CUR10,ZNR1#..07S..TERRA200402-200705

DK.GRAY,TRIM1#,W(STEERING SWITCH)

main45100-0F040-B0iCUR10,ZNR1#..SOL200402-200408

DK.GRAY,TRIM1#

sub45100-0F041

main45100-0F041-B0iAUR10,CUR10,ZNR1#..SOL..(DCR,HTWC)200409-200803

DK.GRAY,TRIM1#

main45100-0F110-B0iAUR10..DCRL200508-200803

DK.GRAY,TRIM1#

main45100-0F130-B0iAUR10..DCRL200803-200902

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-0F150-B0iAUR10,ZNR1#..SOL..(DCR,DCRE,HTWC)200803-200902

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-60010iAUR10,CUR10,ZNR10..05S..TERRA200402-200902

45112PAD, STEERING WHEEL

main45130-0F010-B0iAUR10,CUR10,ZNR10..05S..TERRA200402-200902

DK.GRAY,TRIM1#

main45130-0F020-B0iAUR10,ZNR1#..SOL200402-200902

DK.GRAY,TRIM1#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-0F010-B0iAUR10,ZNR1#..SOL..(DCR,DCRE,HTWC)200402-200902

DK.GRAY,TRIM1#

main45186-0F010-B0iAUR10,ZNR1#..TERRA200705-200902

CRUISE CONTROL-WITHOUT,DK.GRAY,TRIM1#

main45186-0F020-B0iAUR10,CUR10,ZNR1#..SOL200402-200902

DK.GRAY,TRIM1#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-0F010-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010iCUR10,ZNR1#..SOL200402-200705

L=18

45201PNUT, STEERING WHEEL SET

main90178-W0030iCUR10200402-200705

sub90179-12071

main90179-12071iAUR10,ZNR1#200705

8401

8408

9 parts on this diagram · 1 diagram in section
