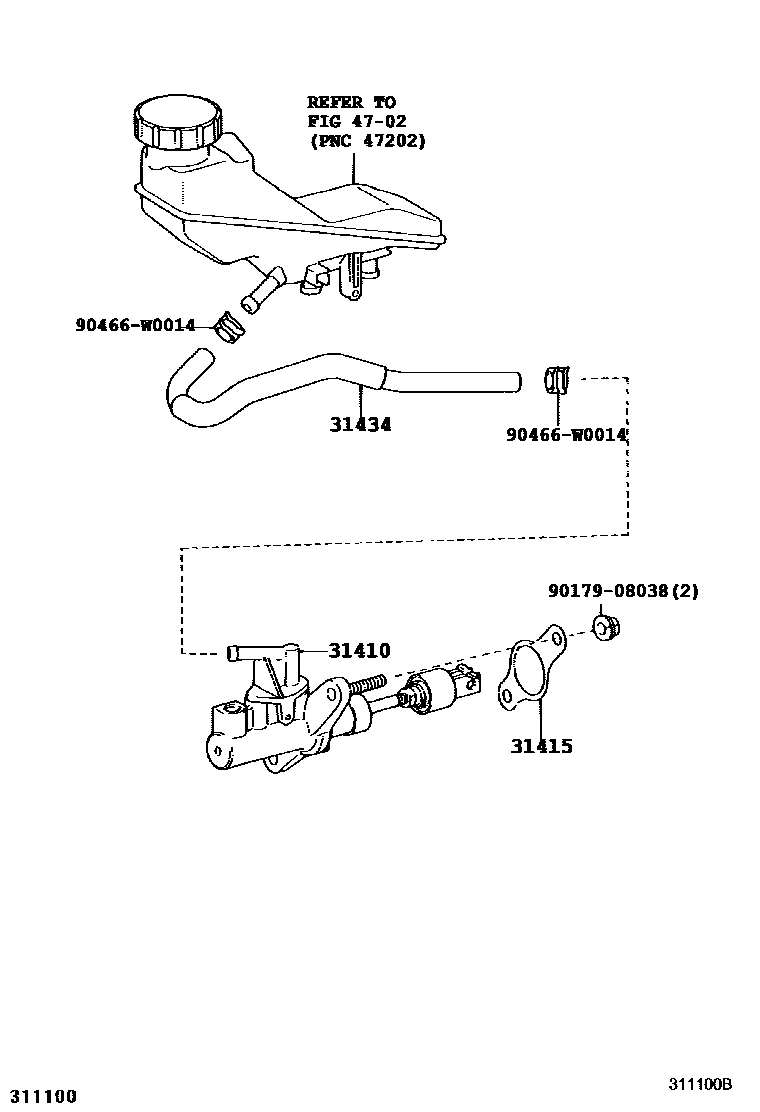

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-05010iCUR10,ZNR1#..RHD..5F200402-200608

main31420-05011iZNR1#..RHD..5F200705-200902

main31420-05020iCUR10,ZNR1#..LHD..5F200402-200608

main31420-05021iZNR1#..LHD..5F200705-200902

main31420-05030iAUR10..RHD200508-200608

main31420-05031iAUR10..RHD200705-200902

main31420-05040iAUR10..LHD200508-200608

main31420-05041iAUR10..LHD200609-200705

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iAUR10,CUR10,ZNR1#..5F,6F200402-200705

31434TUBE, CLUTCH RESERVOIR

main31434-0F010iCUR10..RHD200402-200508

main31434-0F020iAUR10,ZNR1#..LHD..(5F,6F)200402-200705

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

90466W0014

main90466-W0014

6 parts on this diagram · 2 diagrams in section
