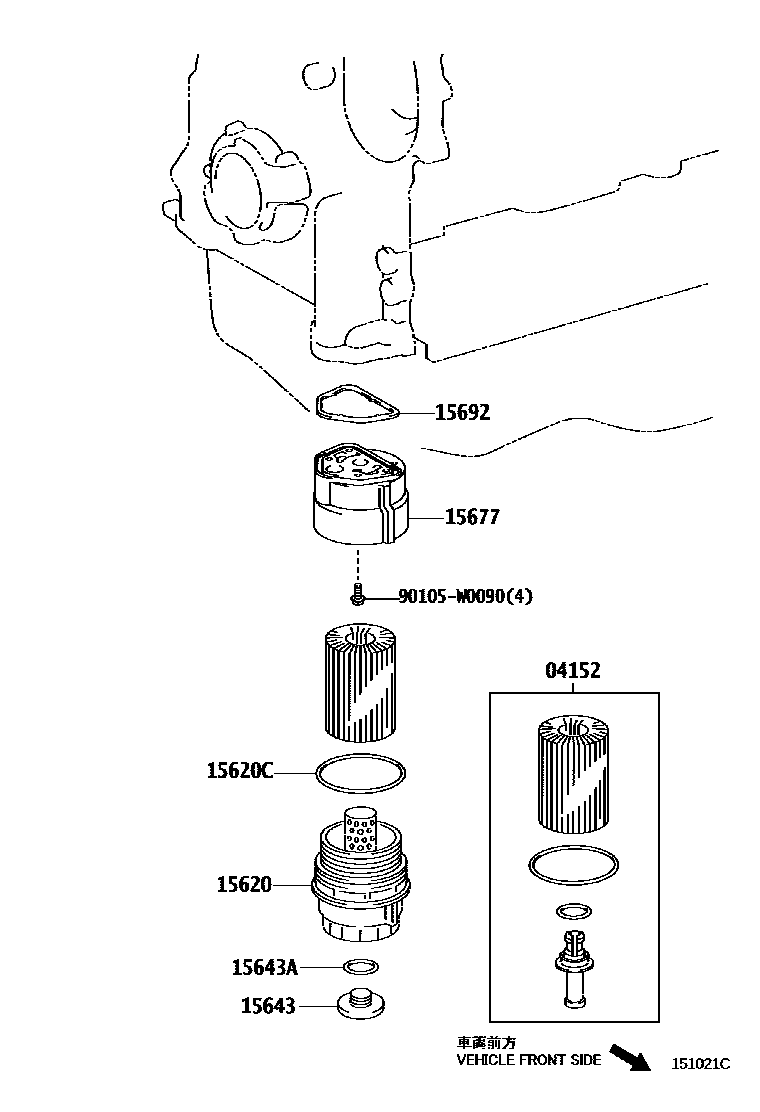

OIL FILTER

0001 1 0002 1 0003 1

04152ELEMENT KIT, OIL FILTER

main04152-0R010i2AD#..AUR10200705

15620CAP ASSY, OIL FILTER

main15620-0R010i2AD#..AUR10..DCR,DCRL200508-200607

main15620-0R011i2AD#..AUR10200705

15620CGASKET(FOR OIL FILTER CAP)

main90301-79005i2AD#..AUR10..DCR,DCRL200508-200610

main90301-79006i2AD#..AUR10200610-200705

15643PLUG, OIL FILTER DRAIN

main15643-0R010i2AD#..AUR10200508-200705

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i2AD#..AUR10200705

15677BRACKET, OIL FILTER

main15677-0R010i2AD#..AUR10200508-200705

15692GASKET, OIL FILTER BRACKET

main15692-26010i2AD#..AUR10200508-200705

main15692-27010i1CDFTV..CUR10200402-200508

90105W0090

main90105-W0090

8 parts on this diagram · 3 diagrams in section
