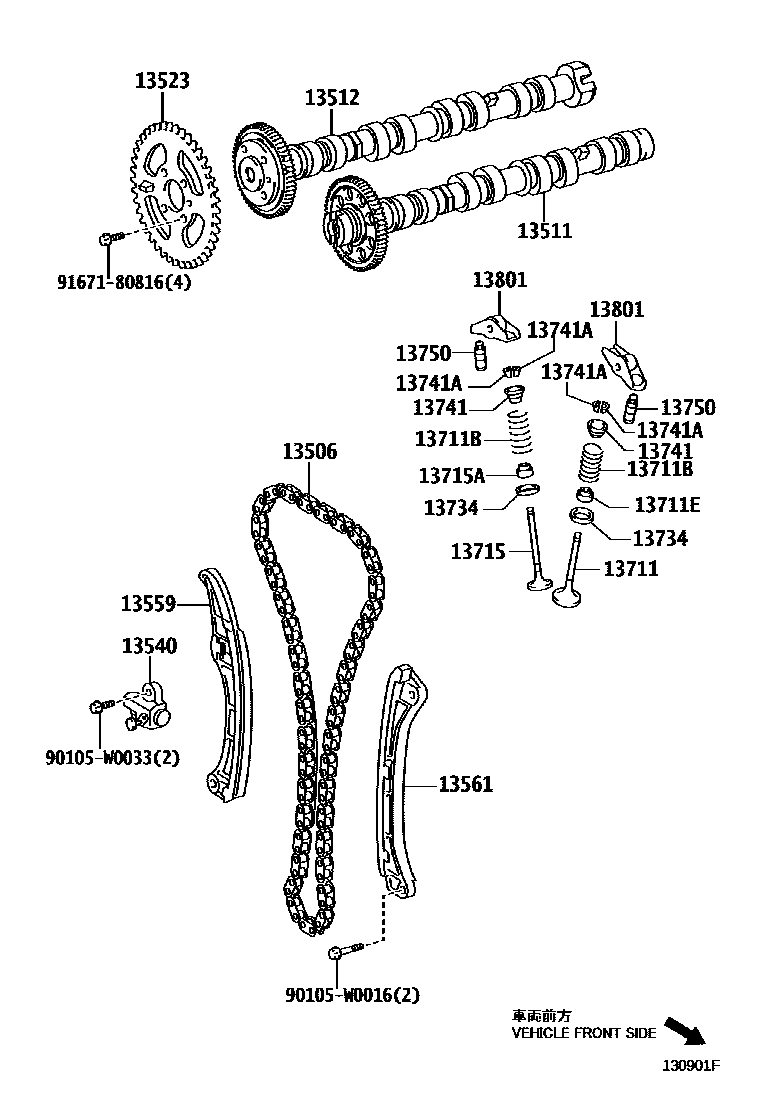

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
(L)
(J)
13511CAMSHAFT
(L)
(L)
(J)
(J)
13512CAMSHAFT, NO.2
(L)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
(L)
(J)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(J)
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
(L)
(J)
13711ESEAL, INTAKE VALVE STEM OIL
(J)
(L)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
(J)
(L)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
(L)
(J)
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
90105W0016
main90105-W0016
90105W0033
main90105-W0033
9167180816
main91671-80816
