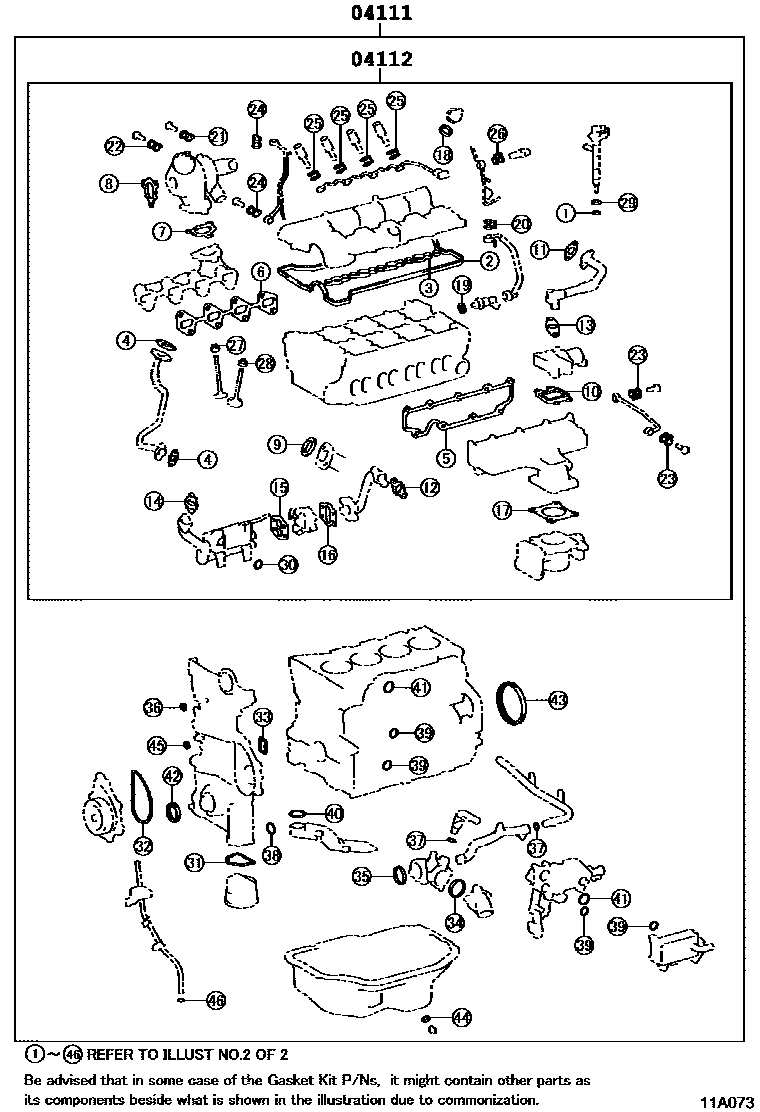

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0D181i1ZZFE..ZNR11200402-200406

sub04111-0D182

main04111-0D182i1ZZFE..ZNR11200406-200506

sub04111-0D370

main04111-0D210i3ZZFE..ZNR10200402-200406

sub04111-0D211

main04111-0D211i3ZZFE..ZNR10200406-200506

sub04111-0D380

main04111-0D370i1ZZFE..ZNR11200506-200705

sub04111-0D371

main04111-0D380i3ZZFE..ZNR10200506-200705

sub04111-0D381

main04111-0G100i1CDFTV..CUR10200402-200508

sub04111-27190

main04111-0R030i2ADFTV..AUR10..DCR200508-200601

sub04111-0R031

main04111-0R031i2ADFTV..AUR10..DCR200601-200607

sub04111-0R032

main04111-0R032i2ADFTV..AUR10200607-200705

main04111-0R040i2ADFHV..AUR10200508-200601

sub04111-0R041

main04111-0R041i2ADFHV..AUR10200601-200607

sub04111-0R042

main04111-0R042i2ADFHV..AUR10200607-200705

main04111-0R112i2ADFTV..AUR10..DCRE200705

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0D181i1ZZFE..ZNR11200402-200406

sub04112-0D182

main04112-0D182i1ZZFE..ZNR11200406-200506

sub04112-0D360

main04112-0D210i3ZZFE..ZNR10200402-200406

sub04112-0D211

main04112-0D211i3ZZFE..ZNR10200406-200506

sub04112-0D370

main04112-0D360i1ZZFE..ZNR11200506-200705

sub04112-0D361

main04112-0D370i3ZZFE..ZNR10200506-200705

sub04112-0D371

main04112-0G100i1CDFTV..CUR10200402-200508

sub04112-27180

main04112-0R030i2ADFTV..AUR10..DCR200508-200601

sub04112-0R031

main04112-0R031i2ADFTV..AUR10..DCR200601-200705

main04112-0R040i2ADFHV..AUR10200508-200601

sub04112-0R041

main04112-0R041i2ADFHV..AUR10200601-200705

main04112-0R111i2ADFTV..AUR10..DCRE200705

2 parts on this diagram · 12 diagrams in section
