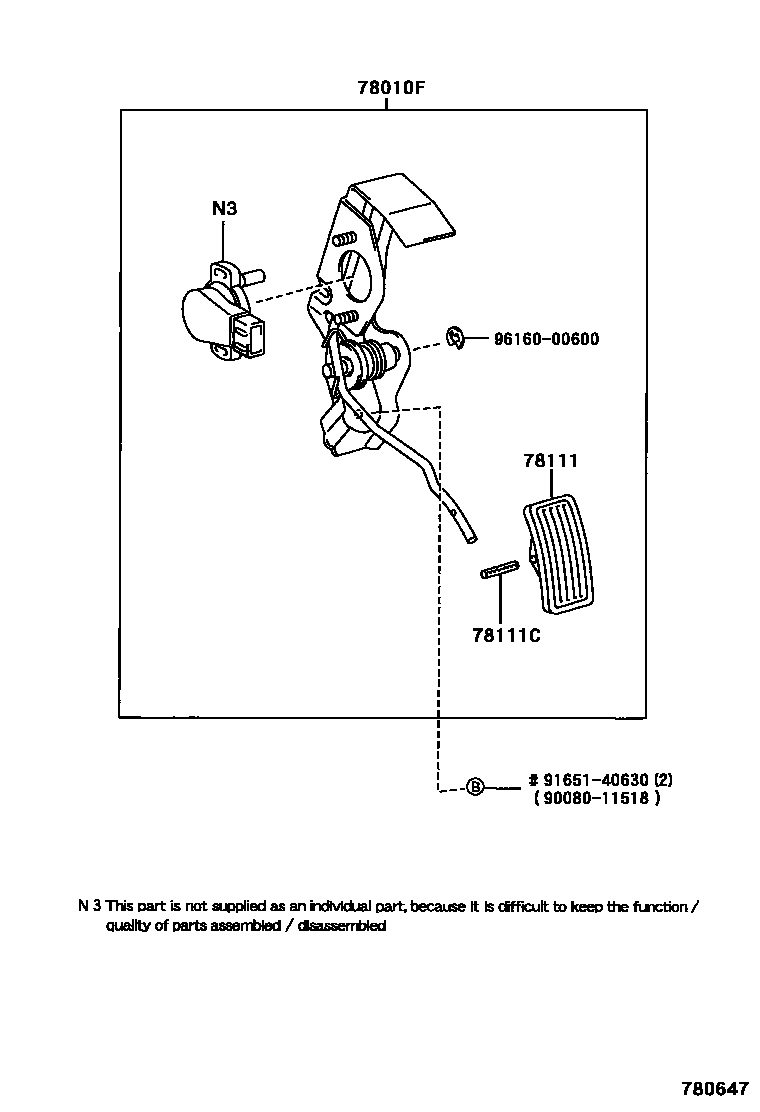

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

78010FPEDAL ASSY, ACCELERATOR

main78010-13010iCDE120..UKP..LHD200201-200311

sub78010-13011

main78010-13011iCDE120..UKP..LHD200311-200406

main78010-13021iCDE120..UKP..RHD200201-200311

sub78010-13022

main78010-13022iCDE120..UKP..RHD200311-200403

sub78010-13023

main78010-13023iCDE120..UKP..RHD200403-200406

main78010-20122iNDE120,ZZE121..UKP..(4FC,5FS)200406

78111PEDAL, ACCELERATOR

main78111-02030iZZE12#..UKP..LHD..5F200201-200406

main78111-05040iZZE120..UKP..RHD200301-200406

(L)

main78111-32010iZZE121..UKP..LHD..4FC200201-200406

main78111-32020iZZE120..UKP..RHD200301-200406

(J)

main78111-32020iCDE120..UKP..RHD200201-200406

main78111-35030iCDE120,NDE120,ZZE121..UKP..LHD200201-200406

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iZZE121..UKP..LHD..4FC200201-200406

main90254-04019iZZE120..UKP;ZZE121..UKP..RHD;ZZE121..UKP..LHD..5F200201-200406

9008011518

main90080-11518

9165140630

main91651-40630

9616000600

main96160-00600

6 parts on this diagram · 9 diagrams in section
