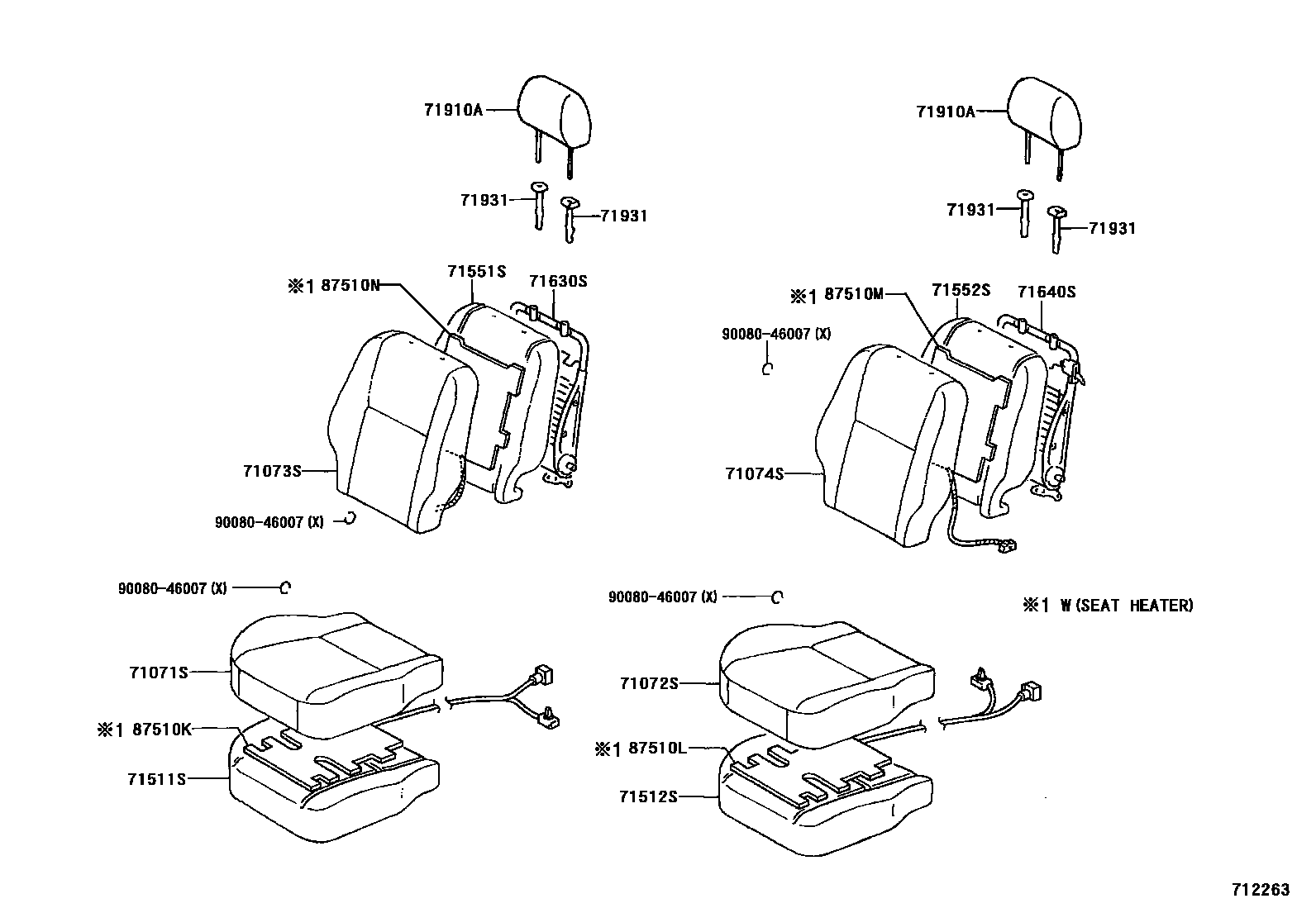

FRONT SEAT & SEAT TRACK

0001 1 0002 1W(SIDE AIR BAG) 0003 1 0004 1 0005 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-02640-B2iCDE120,ZZE12#..UKP..TERRA200201-200406

DK.GRAY,TRIM1#

main71071-02650-B2iCDE120,ZZE12#..UKP..LHD..TERRA200201-200406

W(SEAT HEATER),DK.GRAY,TRIM1#

main71071-02660-B1iCDE120,ZZE12#..UKP..SOL200201-200406

DK.GRAY,TRIM1#

main71071-02670-B1iCDE120,ZZE12#..UKP..LHD..SOL200201-200406

W(SEAT HEATER),DK.GRAY,TRIM1#

main71071-02C90-B0iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200406

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71071-02D00-B0iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200406

SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#

main71071-02D10-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71071-02D20-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#

main71071-02E60-B0iCDE120,NDE120,ZZE12#..UKP..RHD200406

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71071-02E70-B0iCDE120,ZZE12#..UKP..RHD..TERRA200404-200406

W(VERTICAL SEAT ADJUSTER),DK.GRAY,TRIM1#

main71071-02G60-B1iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200510

SEAT = TYPE C-*104,DARK GREY,TRIM1#

main71071-02M20-B1iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200510

SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1#

main71071-02M30-B1iCDE120,NDE120,ZZE12#..UKP..RHD200510

SEAT = TYPE C-*104,DARK GREY,TRIM1#

main71072-02890-B0iZZE121..UKP..RHD..SOL200404-200406

W(VERTICAL SEAT ADJUSTER),DK.GRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-02640-B2iCDE120,ZZE12#..UKP..TERRA200201-200406

DK.GRAY,TRIM1#

main71071-02650-B2iCDE120,ZZE12#..UKP..LHD..TERRA200201-200406

W(SEAT HEATER),DK.GRAY,TRIM1#

main71071-02660-B1iCDE120,ZZE12#..UKP..SOL200201-200406

DK.GRAY,TRIM1#

main71071-02670-B1iCDE120,ZZE12#..UKP..LHD..SOL200201-200406

W(SEAT HEATER),DK.GRAY,TRIM1#

main71071-02C90-B0iCDE120,NDE120,ZZE12#..UKP..RHD200406

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71071-02E60-B0iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200406

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71071-02E70-B0iCDE120,ZZE12#..UKP..LHD..TERRA200404-200406

W(VERTICAL SEAT ADJUSTER),DK.GRAY,TRIM1#

main71071-02G60-B1iCDE120,NDE120,ZZE12#..UKP..RHD200510

SEAT = TYPE C-*104,DARK GREY,TRIM1#

main71071-02M30-B1iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200510

SEAT = TYPE C-*104,DARK GREY,TRIM1#

main71072-02850-B0iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200406

SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#

main71072-02860-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71072-02870-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#

main71072-02880-B0iCDE120,ZZE12#..UKP..LHD..TERRA200404-200406

W(SEAT HEATER & VERTICAL SEAT AJDUSTER),DK.GRAY,TRIM1#

main71072-02890-B0iCDE120,ZZE12#..UKP..LHD..SOL200404-200406

W(VERTICAL SEAT ADJUSTER),DK.GRAY,TRIM1#

main71072-02A00-B0iCDE120,ZZE12#..UKP..LHD..SOL200404-200406

W(SEAT HEATER & VERTICAL SEAT AJDUSTER),DK.GRAY,TRIM1#

main71072-02F70-B1iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200510

SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-02190-B2iCDE120,ZZE12#..UKP..TERRA200201-200406

DK.GRAY,TRIM1#

main71027-02200-B2iCDE120,ZZE12#..UKP..TERRA200201-200406

W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#

main71027-02210-B2iCDE120,ZZE12#..UKP..LHD..TERRA200201-200406

W(SEAT HEATER),DK.GRAY,TRIM1#

main71027-02220-B2iCDE120,ZZE12#..UKP..LHD..TERRA200201-200406

W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#

main71027-02230-B1iCDE120,ZZE12#..UKP..SOL200201-200406

DK.GRAY,TRIM1#

main71027-02240-B1iCDE120,ZZE12#..UKP..SOL200201-200406

W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#

main71027-02250-B1iCDE120,ZZE12#..UKP..LHD..SOL200201-200406

W(SEAT HEATER),DK.GRAY,TRIM1#

main71027-02260-B1iCDE120,ZZE12#..UKP..LHD..SOL200201-200406

W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#

main71073-02B80-B0iCDE120,NDE120,ZZE12#..UKP..TERRA200406

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71073-02B90-B0iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200406

SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#

main71073-02C80-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71073-02C90-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#

main71073-02M20-B1iCDE120,NDE120,ZZE12#..UKP..TERRA200510

SEAT = TYPE C-*104,DARK GREY,TRIM1#

main71073-02M30-B1iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200510

SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71027-02190-B2iCDE120,ZZE12#..UKP..TERRA200201-200406

DK.GRAY,TRIM1#

main71027-02210-B2iCDE120,ZZE12#..UKP..LHD..TERRA200201-200406

W(SEAT HEATER),DK.GRAY,TRIM1#

main71027-02230-B1iCDE120,ZZE12#..UKP..SOL200201-200406

DK.GRAY,TRIM1#

main71027-02250-B1iCDE120,ZZE12#..UKP..LHD..SOL200201-200406

W(SEAT HEATER),DK.GRAY,TRIM1#

main71074-02820-B2iCDE120,ZZE12#..UKP..TERRA200201-200406

W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#

main71074-02830-B2iCDE120,ZZE12#..UKP..LHD..TERRA200201-200406

W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#

main71074-02840-B1iCDE120,ZZE12#..UKP..SOL200201-200406

W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#

main71074-02850-B1iCDE120,ZZE12#..UKP..LHD..SOL200201-200406

W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#

main71074-02C90-B0iCDE120,NDE120,ZZE12#..UKP..TERRA200406

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71074-02D00-B0iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200406

SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#

main71074-02D90-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71074-02E00-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#

main71074-02N10-B1iCDE120,NDE120,ZZE12#..UKP..TERRA200510

SEAT = TYPE C-*104,DARK GREY,TRIM1#

main71074-02N20-B1iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200510

SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71502-02030iCDE120,NDE120,ZZE12#..UKP..LHD200406-200702

main71511-02130iCDE120,ZZE12#..UKP200201-200406

main71511-02260iCDE120,NDE120,ZZE12#..UKP..RHD200406-200702

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-02030iCDE120,NDE120,ZZE12#..UKP..RHD200406-200702

main71511-02130iCDE120,ZZE12#..UKP200201-200406

main71511-02260iCDE120,NDE120,ZZE12#..UKP..LHD200406-200702

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-02190iCDE120,ZZE12#..UKP200201-200406

W/O(SRS SIDE AIR BAG)

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-02190iCDE120,ZZE12#..UKP200201-200406

W/O(SRS SIDE AIR BAG)

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-02080iCDE120,ZZE12#..UKP200201-200406

*153

main71630-02240iCDE120,ZZE12#..UKP200201-200406

*154

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-02050iCDE120,ZZE12#..UKP200201-200406

*153

main71640-02150iCDE120,ZZE12#..UKP200201-200406

*154

71910AHEADREST ASSY, FRONT SEAT

main71910-02400-B2iCDE120,ZZE12#..UKP..TERRA200201-200406

DK.GRAY,TRIM1#

main71910-02410-B1iCDE120,ZZE12#..UKP..SOL200201-200406

DK.GRAY,TRIM1#

main71910-02590-B0×2iCDE120,NDE120,ZZE12#..UKP..TERRA200406

DK.GRAY,TRIM1#

main71910-02600-B0×2iCDE120,NDE120,ZZE12#..UKP..SOL200406

DK.GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-02070-B0iCDE120,ZZE12#..UKP200201-200406

W(LOCK),DK.GRAY,TRIM1#

main71931-02050-B0×2iCDE120,NDE120,ZZE12#..UKP200406

W/O(LOCK),DK.GRAY,TRIM1#

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-02020iCDE120,ZZE12#..UKP..LHD200201-200406

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-02020iCDE120,ZZE12#..UKP..LHD200201-200406

87510MHEATER ASSY, FRONT SEATBACK, RH

main87510-02010iCDE120,ZZE12#..UKP..LHD200201-200406

87510NHEATER ASSY, FRONT SEATBACK, LH

main87510-02010iCDE120,ZZE12#..UKP..LHD200201-200406

9008046007

main90080-46007
