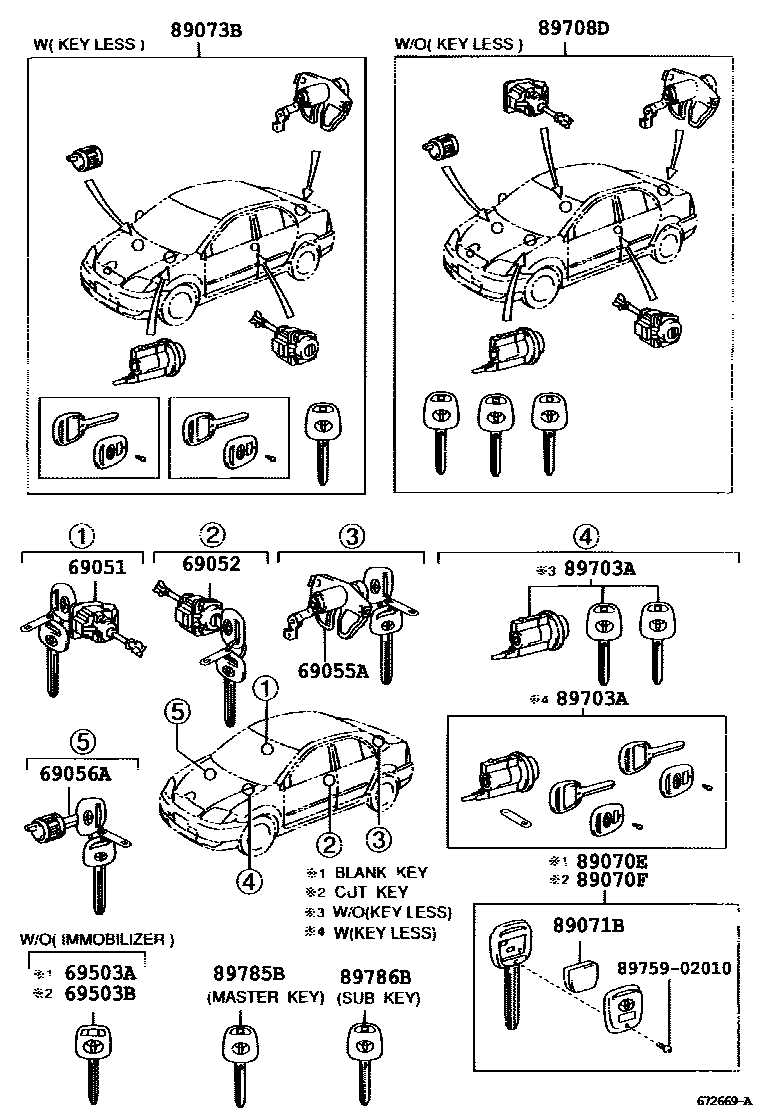

LOCK CYLINDER SET

0001 1 0002 1 0003 1 0004 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-02080iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200201-200406

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-02070iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-02070iZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC200201-200406

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-02010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

69503AKEY, BLANK

main90080-69007iCDE120,NDE120,ZZE12#..UKP200406

MASTER KEY

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-0D020iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-0D030iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-0D010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

89073BCYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-02070iZZE12#..UKP..RHD..SED..TERRA200201-200406

main89073-02080iZZE12#..UKP..LHD..SED200201-200406

main89073-02110iCDE120..UKP..RHD..WG..DCR200208-200406

main89073-02120iCDE120..UKP..RHD..WG..DCR200208-200406

W(DOUBLE-LOCK)

main89073-02130iCDE120..UKP..LHD..WG..DCR;ZZE121..UKP..WG..4FC..TERRA200208-200406

89703ACYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89073-02040iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

W(WIRELESS DOOR LOCK)

main89703-02040iCDE120..UKP..TERRA..DCR;CDE120..UKP..SED..SOL..DCR;ZZE121..UKP..WG..4FC..TERRA200201-200406

89708DCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main89708-02050iCDE120..UKP..SED..DCR200201-200406

main89708-02150iZZE121..UKP..WG;CDE120,NDE120,ZZE120..UKP..WG..TERRA200208-200406

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-05020iCDE120..UKP..TERRA..DCR;CDE120..UKP..SED..SOL..DCR;ZZE121..UKP..WG..4FC..TERRA200201-200406

BLANK KEY

main89785-05030iZZE121..UKP..LHD..SOL;ZZE12#..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

CUT KEY

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-05020iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

BLANK KEY

main89786-05030iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

CUT KEY

8975902010SCREW, DOOR CONTROL TRANSMITTER

main89759-02010

14 parts on this diagram · 4 diagrams in section
