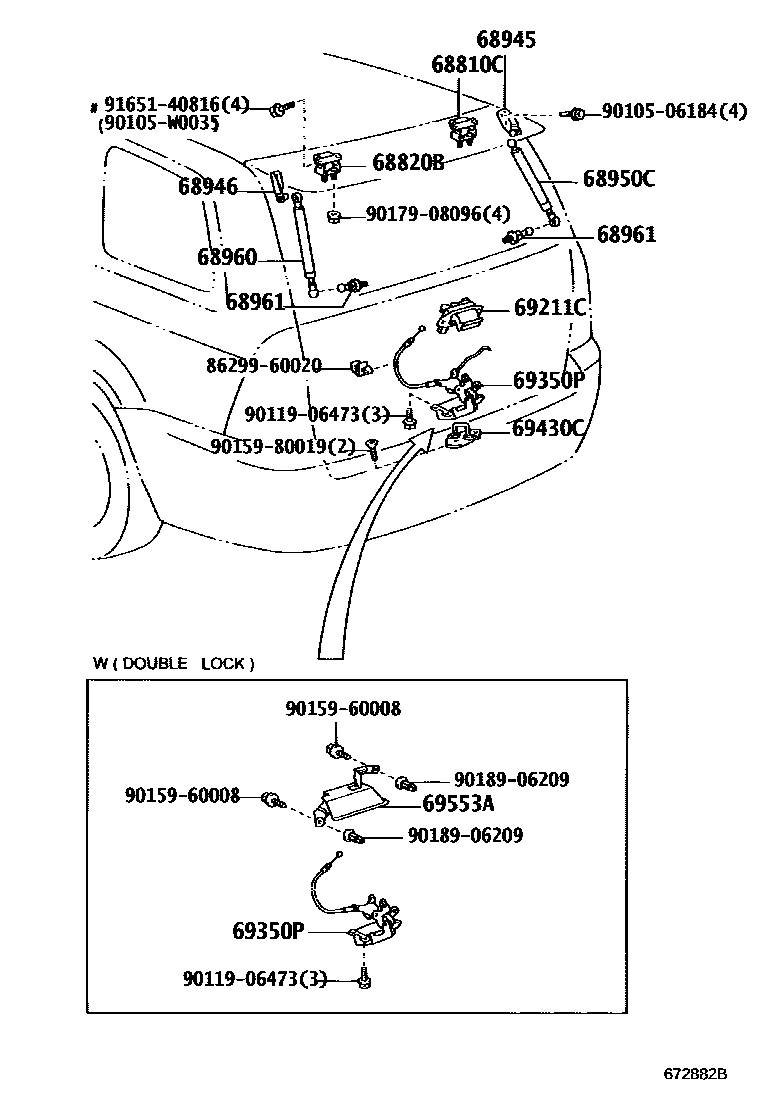

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-02020iCDE120,ZZE12#..UKP..WG200308-200406

sub68810-21051

main68810-02020iCDE120,ZZE12#..UKP..WG200301-200308

(L)

sub68810-21051

main68810-21050iCDE120,ZZE12#..UKP..WG200208-200308

(J)

68820BHINGE ASSY, BACK DOOR, LH

main68810-02020iCDE120,ZZE12#..UKP..WG200308-200406

sub68810-21051

main68810-02020iCDE120,ZZE12#..UKP..WG200301-200308

(L)

sub68810-21051

main68810-21050iCDE120,ZZE12#..UKP..WG200208-200308

(J)

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-13040iCDE120,NDE120,ZZE12#..UKP..WG200208-200406

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-13040iZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA200208-200406

68950CSTAY ASSY, BACK DOOR, RH

main68950-02080iZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA200208-200411

sub68950-02081

main68950-02081iCDE120,NDE120,ZZE12#..UKP..WG200412

sub68950-02082

68960STAY ASSY, BACK DOOR, LH

main68960-02070iZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA200208-200411

sub68960-02071

main68960-02071iCDE120,NDE120,ZZE12#..UKP..WG200412

sub68960-02072

68961BOLT, BACK DOOR STAY

main68961-10030iZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA200208-200406

69211CHANDLE, BACK DOOR OUTSIDE

main69023-02010iZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA200208-200406

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-13240iCDE120,ZZE12#..UKP..WG200208-200303

main69350-13280iCDE120..UKP..RHD..WG200208-200702

W(DOUBLE-LOCK)

main69350-13310iCDE120..UKP..WG;ZZE121..UKP..WG..4FC..TERRA200304-200702

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52020iZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA200208-200406

69553APROTECTOR, BACK DOOR KEY CYLINDER, RH

main69553-13030iCDE120..UKP..RHD..WG200208-200406

8629960020PAD, SPEAKER

main86299-60020

9010506184

main90105-06184

90105W0035

main90105-W0035

9011906473

main90119-06473

9015960008

main90159-60008

9015980019

main90159-80019

9017908096

main90179-08096

9018906209

main90189-06209

9165140816

main91651-40816

20 parts on this diagram · 1 diagram in section
