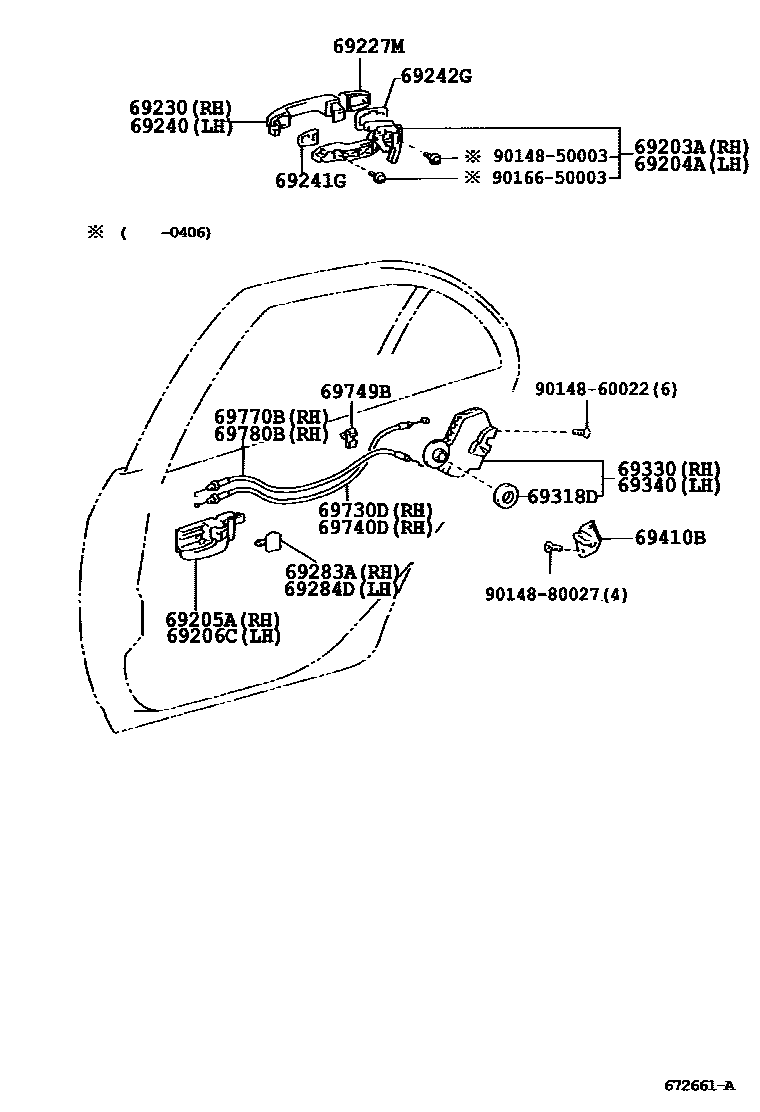

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,(L)
DK.GRAY,TRIM1#,(J)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,(L)
DK.GRAY,TRIM1#,(J)
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PAINT REQ.,UNPAINTED
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.,UNPAINTED
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
DK.GRAY,TRIM1#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
DK.GRAY,TRIM1#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
W(POWER DOOR LOCK)
W(DOUBLE-LOCK)
W(POWER DOOR LOCK)
69340LOCK ASSY, REAR DOOR, LH
W(POWER DOOR LOCK)
W(DOUBLE-LOCK)
W(POWER DOOR LOCK)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
(L)
(J)
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
(L)
(J)
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
(L)
(J)
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
(L)
(J)
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9016650003
main90166-50003
24 parts on this diagram · 1 diagram in section
