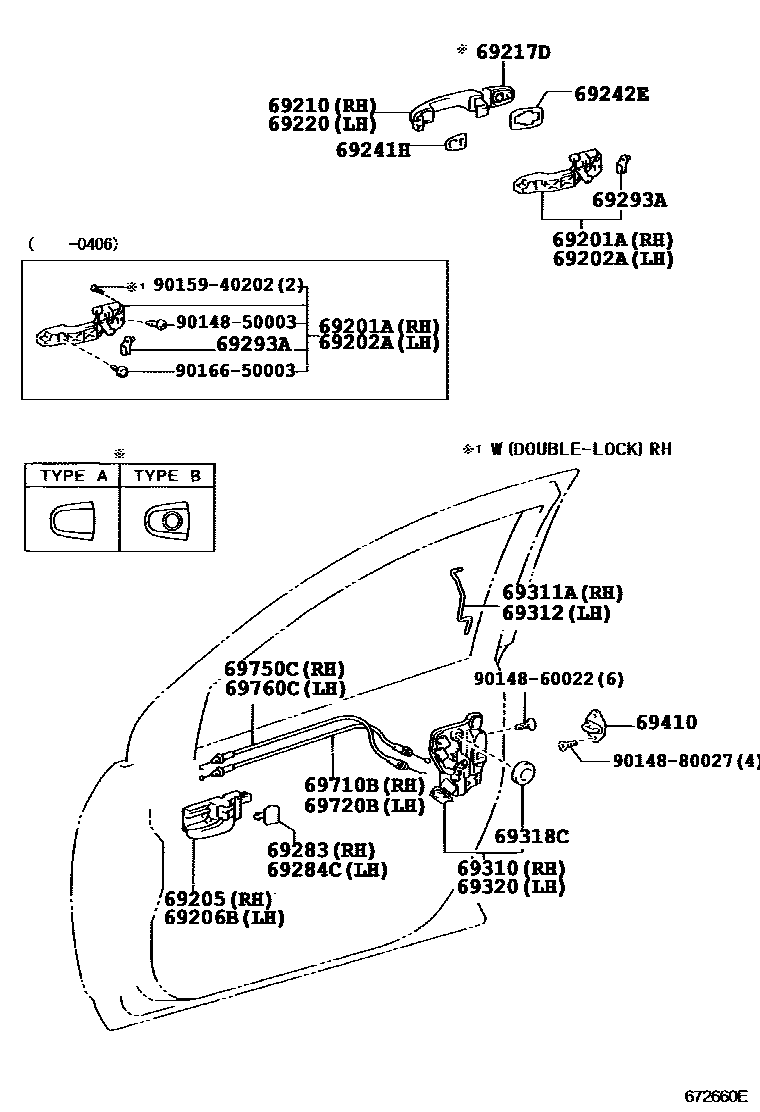

FRONT DOOR LOCK & HANDLE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02060iCDE120,ZZE12#..UKP200201-200406

sub69201-05060

main69201-02070iCDE120,ZZE12#..UKP..RHD200201-200406

W(DOUBLE-LOCK)

sub69201-02090

main69201-02090iCDE120,NDE120,ZZE12#..UKP..RHD200406

W(DOUBLE-LOCK)

main69201-05060iCDE120,NDE120,ZZE12#..UKP200406

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02040iCDE120,ZZE12#..UKP200201-200406

sub69202-05020

main69202-05020iCDE120,NDE120,ZZE12#..UKP200406

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02070-B0iCDE120,ZZE12#..UKP200201-200301

DK.GRAY,TRIM1#

sub69205-02110

main69205-02110-B0iCDE120,NDE120,ZZE12#..UKP200504

DK.GRAY,TRIM1#,(L)

main69205-02110-B0iCDE120,ZZE12#..UKP200301-200504

DK.GRAY,TRIM1#

main69205-13020-B0iCDE120,NDE120,ZZE12#..UKP200504

DK.GRAY,TRIM1#,(J)

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02070-B0iCDE120,ZZE12#..UKP200201-200301

DK.GRAY,TRIM1#

sub69206-02110

main69206-02110-B0iCDE120,ZZE12#..UKP200301-200504

DK.GRAY,TRIM1#

main69206-02110-B0iCDE120,NDE120,ZZE12#..UKP200504

DK.GRAY,TRIM1#,(L)

main69206-13020-B0iCDE120,NDE120,ZZE12#..UKP200504

DK.GRAY,TRIM1#,(J)

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69211-02110iCDE120,ZZE12#..UKP200201-200301

NO PAINT REQ.

sub69211-05903

main69211-05903iCDE120,ZZE12#..UKP200301-200702

PAINT REQ.,UNPAINTED

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-02902iZZE121..UKP;CDE120..UKP..SED;CDE120,NDE120,ZZE120..UKP..TERRA200207-200406

TYPE B:REFER TO ILLUSTRATION

main69217-02902iCDE120,ZZE12#..UKP200207-200406

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY)

main69217-02903iCDE120,ZZE12#..UKP200207-200406

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY)

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69211-02110iCDE120,ZZE12#..UKP200201-200301

NO PAINT REQ.

sub69211-05903

main69211-05903iCDE120,ZZE12#..UKP200301-200702

PAINT REQ.,UNPAINTED

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02040iCDE120,ZZE12#..UKP200201-200406

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-02040iCDE120,ZZE12#..UKP200201-200406

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-P0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

sub69283-30040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-30040-P0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

sub69283-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-33010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

RH

main69293-33020iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200201-200406

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-02141iCDE120,NDE120,ZZE12#..UKP..RHD200403-200502

W(POWER DOOR LOCK & WIRELESS DOOR LOCK);W(POWER DOOR LOCK)

sub69030-02142

main69030-02142iCDE120,NDE120,ZZE12#..UKP..RHD200503

W(POWER DOOR LOCK & WIRELESS DOOR LOCK);W(POWER DOOR LOCK)

main69030-02151iZZE121..UKP..LHD;CDE120..UKP..SED;CDE120,NDE120,ZZE120..UKP..LHD..TERRA200403-200502

W(POWER DOOR LOCK)

sub69030-02152

main69030-02152iZZE121..UKP..LHD..WG..TERRA;CDE120,ZZE121..UKP..LHD..SED;CDE120,NDE120,ZZE120..UKP..LHD..TERRA200503

W(POWER DOOR LOCK)

main69030-02161iCDE120,ZZE12#..UKP..LHD200403-200502

W(POWER DOOR LOCK & WIRELESS DOOR LOCK)

sub69030-02162

main69030-02162iCDE120,NDE120,ZZE12#..UKP..LHD200503

W(POWER DOOR LOCK & WIRELESS DOOR LOCK)

main69030-02171iCDE120,NDE120,ZZE12#..UKP..RHD200403-200406

W(DOUBLE-LOCK)

main69030-13071iZZE121..UKP..LHD;CDE120..UKP..LHD..SED;ZZE120..UKP..LHD..TERRA;CDE120..UKP..LHD..WG..TERRA200201-200402

W(POWER DOOR LOCK)

main69030-13081iCDE120,ZZE12#..UKP..LHD200201-200402

W(POWER DOOR LOCK & WIRELESS DOOR LOCK)

sub69030-02161

main69030-33241iCDE120,ZZE12#..UKP..RHD200201-200402

W(POWER DOOR LOCK & WIRELESS DOOR LOCK);W(POWER DOOR LOCK)

main69030-33251iCDE120,ZZE12#..UKP..RHD200201-200402

W(DOUBLE-LOCK)

main69310-02091iCDE120,ZZE12#..UKP..TERRA200403-200406

main69310-13051iCDE120,ZZE12#..UKP..TERRA200201-200402

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-02080iCDE120,NDE120,ZZE12#..UKP200403-200406

main69311-13020iCDE120,ZZE12#..UKP200201-200402

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-02080iCDE120,ZZE12#..UKP200403-200406

main69312-13020iCDE120,ZZE12#..UKP200201-200402

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iCDE120..UKP..LHD;ZZE121..UKP..SOL;ZZE120..UKP..SED..SOL;NDE120,ZZE120..UKP..WG;ZZE121..UKP..LHD..WG..TERRA200201-200502

69320LOCK ASSY, FRONT DOOR, LH

main69040-02131iCDE120,ZZE12#..UKP..RHD..TERRA200403-200502

W(POWER DOOR LOCK)

sub69040-02132

main69040-02132iCDE120,NDE120,ZZE12#..UKP..RHD200503

W(POWER DOOR LOCK)

main69040-02141iCDE120,NDE120,ZZE12#..UKP..RHD200403-200502

W(POWER DOOR LOCK & WIRELESS DOOR LOCK)

sub69040-02142

main69040-02142iCDE120,NDE120,ZZE12#..UKP..RHD200503

W(POWER DOOR LOCK & WIRELESS DOOR LOCK)

main69040-02151iCDE120,NDE120,ZZE12#..UKP..LHD200403-200502

W(POWER DOOR LOCK & WIRELESS DOOR LOCK);W(POWER DOOR LOCK)

sub69040-02152

main69040-02152iCDE120,NDE120,ZZE12#..UKP..LHD200503

W(POWER DOOR LOCK & WIRELESS DOOR LOCK);W(POWER DOOR LOCK)

main69040-02161iCDE120,ZZE12#..UKP..RHD200403-200406

W(DOUBLE-LOCK)

main69040-13051iCDE120,ZZE12#..UKP..RHD..TERRA200201-200402

W(POWER DOOR LOCK)

main69040-13061iCDE120,ZZE12#..UKP..RHD200201-200402

W(POWER DOOR LOCK & WIRELESS DOOR LOCK)

main69040-13111iCDE120,ZZE12#..UKP..RHD200201-200402

W(DOUBLE-LOCK)

main69040-33231iCDE120,ZZE12#..UKP..LHD200201-200402

W(POWER DOOR LOCK & WIRELESS DOOR LOCK);W(POWER DOOR LOCK)

sub69040-33232

main69320-02091iNDE120,ZZE12#..UKP..SED..TERRA200403-200406

main69320-13041iCDE120,ZZE12#..UKP..TERRA200201-200402

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010iCDE120,ZZE12#..UKP200201-200406

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-02080iCDE120,ZZE12#..UKP200201-200406

(L)

main69710-02080iCDE120,NDE120,ZZE12#..UKP200406

main69710-13020iCDE120,ZZE12#..UKP200201-200406

(J)

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-02080iCDE120,ZZE12#..UKP200201-200406

(L)

main69710-02080iCDE120,NDE120,ZZE12#..UKP200406

main69710-13020iCDE120,ZZE12#..UKP200201-200406

(J)

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-02080iCDE120,ZZE12#..UKP200201-200406

(L)

main69750-02080iCDE120,NDE120,ZZE12#..UKP200406

main69750-13030iCDE120,ZZE12#..UKP200201-200406

(J)

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-02080iCDE120,NDE120,ZZE12#..UKP200406

main69760-02080iCDE120,ZZE12#..UKP200201-200406

(L)

main69760-13010iCDE120,ZZE12#..UKP200201-200406

(J)

9014850003

main90148-50003

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9016650003

main90166-50003

27 parts on this diagram · 1 diagram in section
