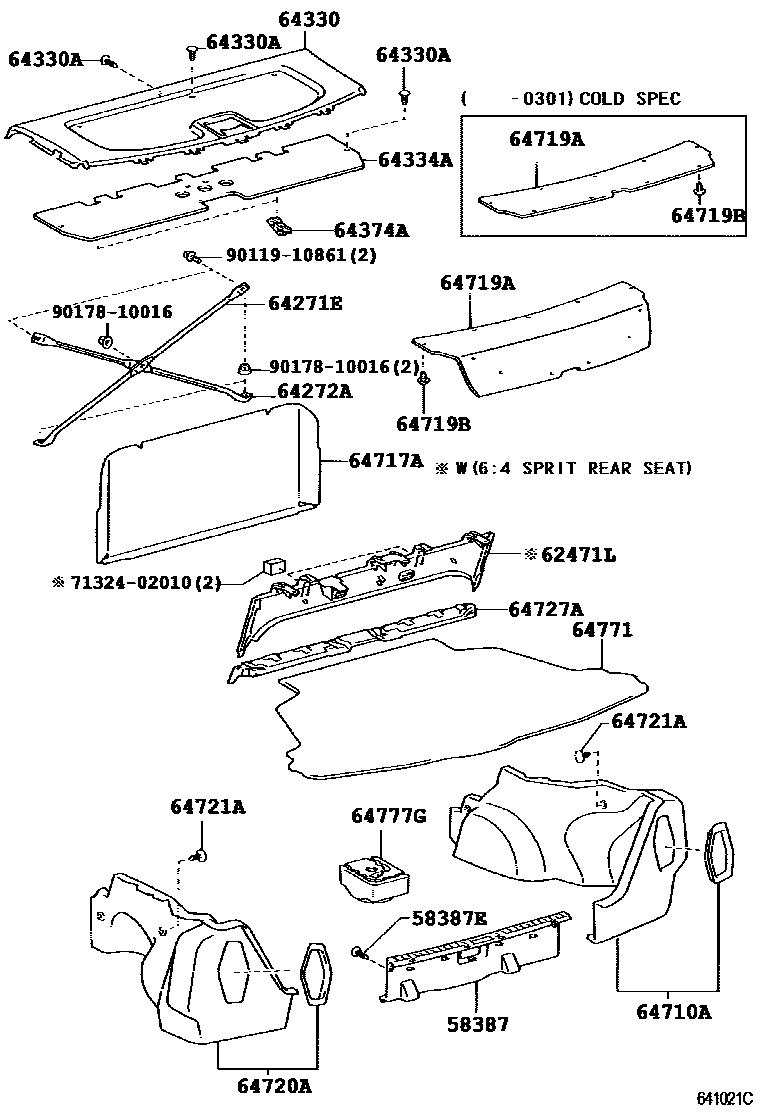

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02040-B0iCDE120,ZZE12#..UKP..SED200201-200406

DK.GRAY,TRIM1#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-05096-22iCDE120,ZZE12#..UKP..SED200201-200406

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iCDE120,NDE120,ZZE12#..UKP..SED200406

BLACK

sub90467-05096

62471LBOARD, ROOM PARTITION, RH

main64271-02060-C0iCDE120,ZZE12#..UKP..SED200201-200406

BLACK,TRIM1#

64271EPANEL, ROOM PARTITION

main64241-12030iCDE120..UKP..SED..TERRA200201-200609

64272APANEL, ROOM PARTITION, LH

main64242-12021iZZE12#..UKP..SED..TERRA200201-200609

main64242-12030iNDE120,ZZE12#..UKP..SED..TERRA200610

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02260-B1iCDE120,ZZE12#..UKP..SED200201-200406

DARK GRAY,TRIM1#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06061-B2iCDE120,NDE120,ZZE12#..UKP..SED200201-200406

DK.GRAY,TRIM1#

sub90467-06061

sub90467-06020

main90467-06061-B2iCDE120,ZZE12#..UKP..SED..TERRA200201-200406

W(6:4 SPRIT REAR SEAT),DK.GRAY,TRIM1#

sub90467-06061

sub90467-06020

64334APAD, PACKAGE TRAY TRIM

main64334-02060iZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC200201-200406

64374ASUPPORT, PACKAGE TRAY TRIM

main64374-02010iCDE120..UKP..SED..TERRA200201-200406

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02050-C0iCDE120,NDE120,ZZE12#..UKP..SED200406

BLACK,TRIM1#

main64710-02060-C0iCDE120,ZZE12#..UKP..SED200201-200309

BLACK,TRIM1#

sub64710-02061

main64710-02061-C0iCDE120,ZZE12#..UKP..SED200309-200406

BLACK,TRIM1#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-02070-C0iCDE120,ZZE12#..UKP..SED..TERRA200201-200406

BLACK,TRIM1#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02030-C0iCDE120,ZZE12#..UKP..LHD..SED200201-200301

BLACK,TRIM1#

main64719-02070-C0iCDE120,ZZE12#..UKP..SED200301-200309

BLACK,TRIM1#

sub64719-02071

main64719-02071-C0iCDE120,NDE120,ZZE12#..UKP..SED200309-200406

BLACK,TRIM1#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-05096-22iCDE120,ZZE12#..UKP..SED200201-200406

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iCDE120,NDE120,ZZE12#..UKP..SED200406

BLACK

sub90467-05096

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02050-C0iCDE120,NDE120,ZZE12#..UKP..SED200406

BLACK,TRIM1#

main64720-02060-C0iCDE120,ZZE12#..UKP..SED200201-200309

BLACK,TRIM1#

sub64720-02061

main64720-02061-C0iCDE120,ZZE12#..UKP..SED200309-200406

BLACK,TRIM1#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-22iCDE120,ZZE12#..UKP..SED200201-200406

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iCDE120,NDE120,ZZE12#..UKP..SED200406

BLACK

sub90467-05096

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-02060iCDE120..UKP..SED..DCR;ZZE121..UKP..RHD..SOL200301-200406

(L)

main64727-02060iCDE120,NDE120,ZZE12#..UKP..SED200406

main64727-12020iCDE120,ZZE12#..UKP..SED..(DCR,HTWC)200201-200301

main64727-12020iZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC200301-200406

(J)

64771COVER, SPARE WHEEL

main64771-02070-C0iCDE120,ZZE12#..UKP..SED200301-200309

BLACK,TRIM1#

main64771-02071-C0iCDE120,ZZE12#..UKP..SED200309-200406

BLACK,TRIM1#

main64771-02140-C0iCDE120,ZZE12#..UKP..SED200201-200301

BLACK,TRIM1#

64777GCUSHION, SPARE WHEEL

main64777-02080iZZE120..UKP..SED..TERRA200406

main64777-02080iZZE120..UKP..SED..TERRA200301-200406

(L)

main64777-12030-B0iZZE120..UKP..SED..TERRA200301-200406

SHADOW GRAY,TRIM1#,(J)

sub64777-12030

main64777-12030-B0iZZE120..UKP..SED..TERRA200201-200301

SHADOW GRAY,TRIM1#

sub64777-12030

7132402010SUPPORT SUB-ASSY, REAR NO.2 SEAT, LH

main71324-02010

9011910861

main90119-10861

9017810016

main90178-10016

21 parts on this diagram · 1 diagram in section
