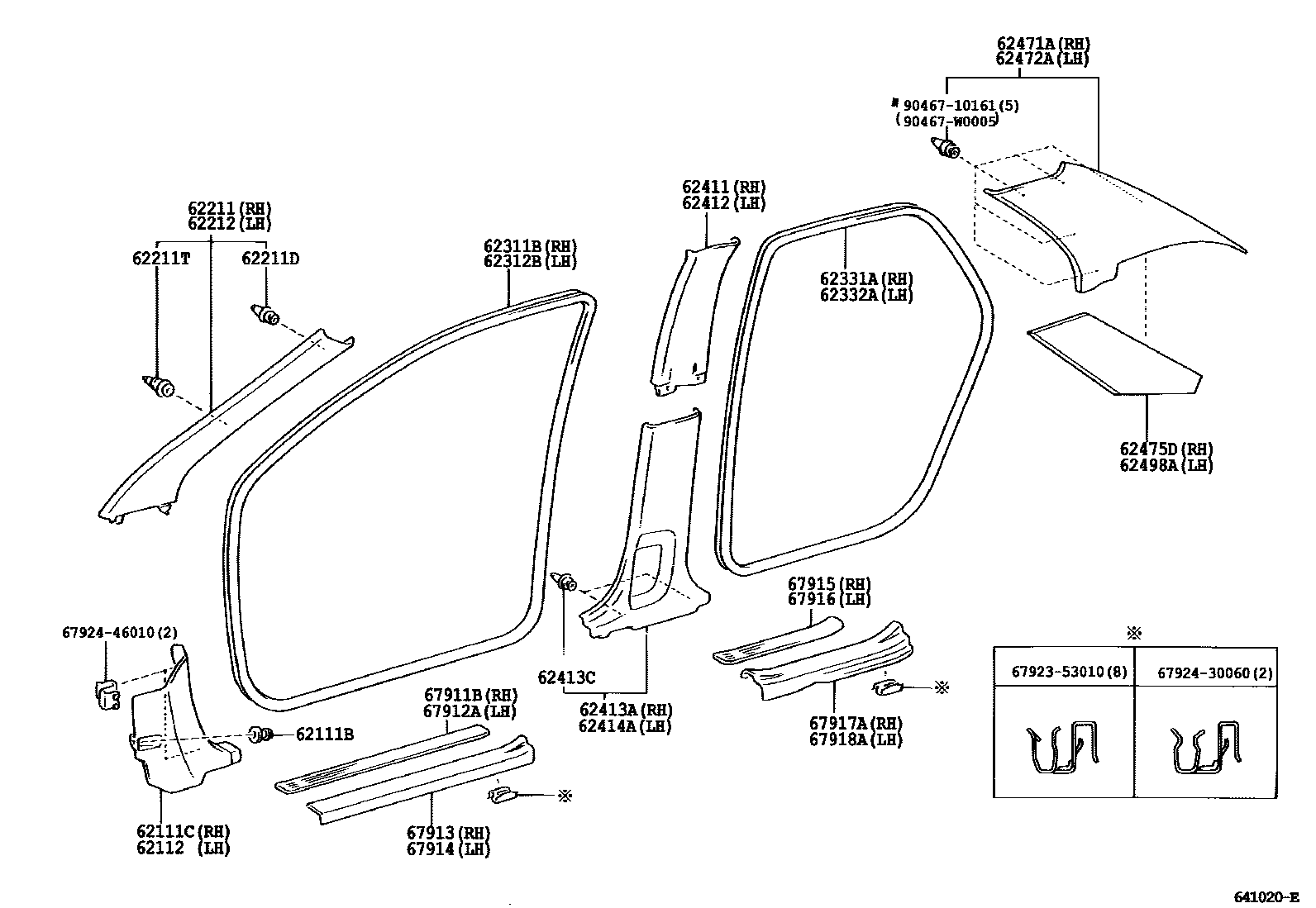

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1W(CURTAIN SHIELD AIR BAG) 0003 1 0004 1W(CURTAIN SHIELD AIR BAG)

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06191iCDE120,NDE120,ZZE12#..UKP200201-200406

62111CBOARD, COWL SIDE TRIM, RH

main62111-02090-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

sub62111-02080

62112BOARD, COWL SIDE TRIM, LH

main62112-02090-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

sub62112-02080

62211GARNISH, FRONT PILLAR, RH

main62211-02060-B0iCDE120,ZZE12#..UKP200201-200301

LT.GRAY,TRIM1#

main62211-02060-B0iCDE120,ZZE12#..UKP200301-200406

LT.GRAY,TRIM1#,FRAME NO.=EXXXXXX

main62211-02100-B0iZZE12#..UKP200406

LT.GRAY,TRIM1#

main62211-02100-B0iCDE120,ZZE12#..UKP200302-200406

LT.GRAY,TRIM1#,FRAME NO.=RXXXXXX

main62211-02110-B0iCDE120,NDE120..UKP200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62211-02120-B1iCDE120,ZZE12#..UKP200301-200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,FRAME NO.=EXXXXXX

main62211-02140-B0iCDE120,ZZE12#..UKP200304-200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,FRAME NO.=RXXXXXX

main62211-02140-B0iZZE12#..UKP200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62211-02170-B0iCDE120,NDE120..UKP200406

LT.GRAY,TRIM1#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iCDE120,ZZE12#..UKP200301-200306

main90467-10161iZZE12#..UKP200306-200406

(J)

main90467-10188iCDE120,ZZE12#..UKP..(DCR,HTWC)200201-200301

main90467-W0005iCDE120,NDE120..UKP200306-200406

(L)

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-13010iCDE120,ZZE12#..UKP200301-200406

62212GARNISH, FRONT PILLAR, LH

main62212-02060-B0iCDE120,ZZE12#..UKP200201-200301

LT.GRAY,TRIM1#

main62212-02060-B0iCDE120,ZZE12#..UKP200301-200406

LT.GRAY,TRIM1#,FRAME NO.=EXXXXXX

main62212-02100-B0iCDE120,ZZE12#..UKP200302-200406

LT.GRAY,TRIM1#,FRAME NO.=RXXXXXX

main62212-02100-B0iZZE12#..UKP200406

LT.GRAY,TRIM1#

main62212-02110-B0iCDE120,NDE120..UKP200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62212-02120-B1iCDE120,ZZE12#..UKP200301-200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,FRAME NO.=EXXXXXX

main62212-02140-B0iZZE12#..UKP200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62212-02140-B0iCDE120,ZZE12#..UKP200301-200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,FRAME NO.=RXXXXXX

main62212-02170-B0iCDE120,NDE120..UKP200406

LT.GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02040-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#,(L)

sub62311-12141

main62311-02040-B0iCDE120,NDE120,ZZE12#..UKP200406

DK.GRAY,TRIM1#

sub62311-12141

main62311-12120-B0iCDE120,ZZE12#..UKP200201-200304

DK.GRAY,TRIM1#,(J)

sub62311-02041

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02040-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#,(L)

sub62312-12141

main62312-02040-B0iCDE120,NDE120,ZZE12#..UKP200406

DK.GRAY,TRIM1#

sub62312-12141

main62312-12120-B0iCDE120,ZZE12#..UKP200201-200304

DK.GRAY,TRIM1#,(J)

sub62312-02041

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02040-B0iCDE120,NDE120,ZZE12#..UKP..SED200406

DK.GRAY,TRIM1#

main62331-02040-B0iCDE120,ZZE12#..UKP..SED200201-200406

DK.GRAY,TRIM1#,(L)

main62331-02070-B0iCDE120,ZZE12#..UKP..WG200208-200406

DK.GRAY,TRIM1#

main62331-12090-B0iCDE120,ZZE12#..UKP..SED200201-200304

DK.GRAY,TRIM1#,(J)

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02040-B0iCDE120,NDE120,ZZE12#..UKP..SED200406

DK.GRAY,TRIM1#

main62332-02040-B0iCDE120,ZZE12#..UKP..SED200201-200406

DK.GRAY,TRIM1#,(L)

main62332-02070-B0iCDE120,ZZE12#..UKP..WG200208-200406

DK.GRAY,TRIM1#

main62332-12090-B0iCDE120,ZZE12#..UKP..SED200201-200304

DK.GRAY,TRIM1#,(J)

62411GARNISH, CENTER PILLAR, RH

main62410-02040-B0iCDE120,NDE120,ZZE12#..UKP200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62410-02040-B0iCDE120,ZZE12#..UKP200304-200406

FRAME NO.=RXXXXXX & W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62411-02050-B0iCDE120,NDE120,ZZE12#..UKP200406

LT.GRAY,TRIM1#

sub62411-02070

main62411-02050-B0iCDE120,ZZE12#..UKP200302-200406

LT.GRAY,TRIM1#,FRAME NO.=RXXXXXX

sub62411-02070

main62411-02070-B0iCDE120,ZZE12#..UKP200301-200406

LT.GRAY,TRIM1#,FRAME NO.=EXXXXXX

main62411-02070-B0iCDE120,ZZE12#..UKP200201-200301

LT.GRAY,TRIM1#

62412GARNISH, CENTER PILLAR, LH

main62412-02060-B0iCDE120,ZZE12#..UKP200201-200301

LT.GRAY,TRIM1#

main62412-02060-B0iCDE120,ZZE12#..UKP200301-200406

LT.GRAY,TRIM1#,FRAME NO.=EXXXXXX

main62412-02090-B0iCDE120,ZZE12#..UKP200302-200406

LT.GRAY,TRIM1#,FRAME NO.=RXXXXXX

sub62412-02060

main62412-02090-B0iCDE120,NDE120,ZZE12#..UKP200406

LT.GRAY,TRIM1#

sub62412-02060

main62420-02040-B0iCDE120,ZZE12#..UKP200304-200406

FRAME NO.=RXXXXXX & W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62420-02040-B0iCDE120,NDE120,ZZE12#..UKP200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02090-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-09215iCDE120,ZZE12#..UKP200201-200406

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02090-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-02030-B0iCDE120,NDE120,ZZE12#..UKP..WG200208-200406

LT.GRAY,TRIM1#

main62470-02060-B0iCDE120,NDE120,ZZE12#..UKP..WG200304-200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62471-02110-B1iCDE120,ZZE12#..UKP..SED200201-200301

LT.GRAY,TRIM1#

main62471-02110-B1iCDE120,ZZE12#..UKP..SED200301-200406

LT.GRAY,TRIM1#,FRAME NO.=EXXXXXX

main62471-02190-B0iCDE120,ZZE12#..UKP..SED200302-200406

LT.GRAY,TRIM1#,FRAME NO.=RXXXXXX

main62471-02190-B0iCDE120,NDE120,ZZE12#..UKP..SED200406

LT.GRAY,TRIM1#

main62471-02210-B0iCDE120,ZZE12#..UKP..SED200301-200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-02110-B1iCDE120,ZZE12#..UKP..SED200201-200301

LT.GRAY,TRIM1#

main62472-02110-B1iCDE120,ZZE12#..UKP..SED200301-200406

LT.GRAY,TRIM1#,FRAME NO.=EXXXXXX

main62472-02190-B0iCDE120,NDE120,ZZE12#..UKP..SED200406

LT.GRAY,TRIM1#

main62472-02190-B0iCDE120,ZZE12#..UKP..SED200302-200406

LT.GRAY,TRIM1#,FRAME NO.=RXXXXXX

main62472-02210-B0iCDE120,NDE120,ZZE12#..UKP..SED200301-200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62480-02030-B0iCDE120,ZZE12#..UKP..WG200208-200406

LT.GRAY,TRIM1#

main62480-02050-B0iCDE120,NDE120,ZZE12#..UKP..WG200304-200406

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

62475DPAD, ROOF SIDE INNER GARNISH, RH

main62475-02050iCDE120,ZZE12#..UKP..SED200201-200406

main62475-02120iCDE120,ZZE12#..UKP..SED200301-200406

W(SRS CURTAIN SHIELD AIR BAG)

62498APAD, ROOF SIDE INNER GARNISH, LH

main62475-02050iCDE120,ZZE12#..UKP..SED200201-200406

main62475-02120iCDE120,ZZE12#..UKP..SED200301-200406

W(SRS CURTAIN SHIELD AIR BAG)

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-02010iCDE120,ZZE12#..UKP200201-200406

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-02010iCDE120,NDE120,ZZE12#..UKP200201-200406

sub67912-02030

67913PLATE, FRONT DOOR SCUFF, RH

main67913-02090-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

sub67913-02080

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02090-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

sub67914-02080

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-02010iCDE120,ZZE12#..UKP200201-200406

sub67915-02020

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-02010iCDE120,ZZE12#..UKP200201-200406

sub67916-02020

67917APLATE, REAR DOOR SCUFF, RH

main67917-02080-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

sub67917-02070

67918APLATE, REAR DOOR SCUFF, LH

main67918-02080-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

sub67918-02070

6792353010CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-53010

6792430060CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-30060

6792446010CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-46010

9046710161

main90467-10161

90467W0005

main90467-W0005

33 parts on this diagram · 4 diagrams in section
